Installing The Central Front-Rear Member

Install:

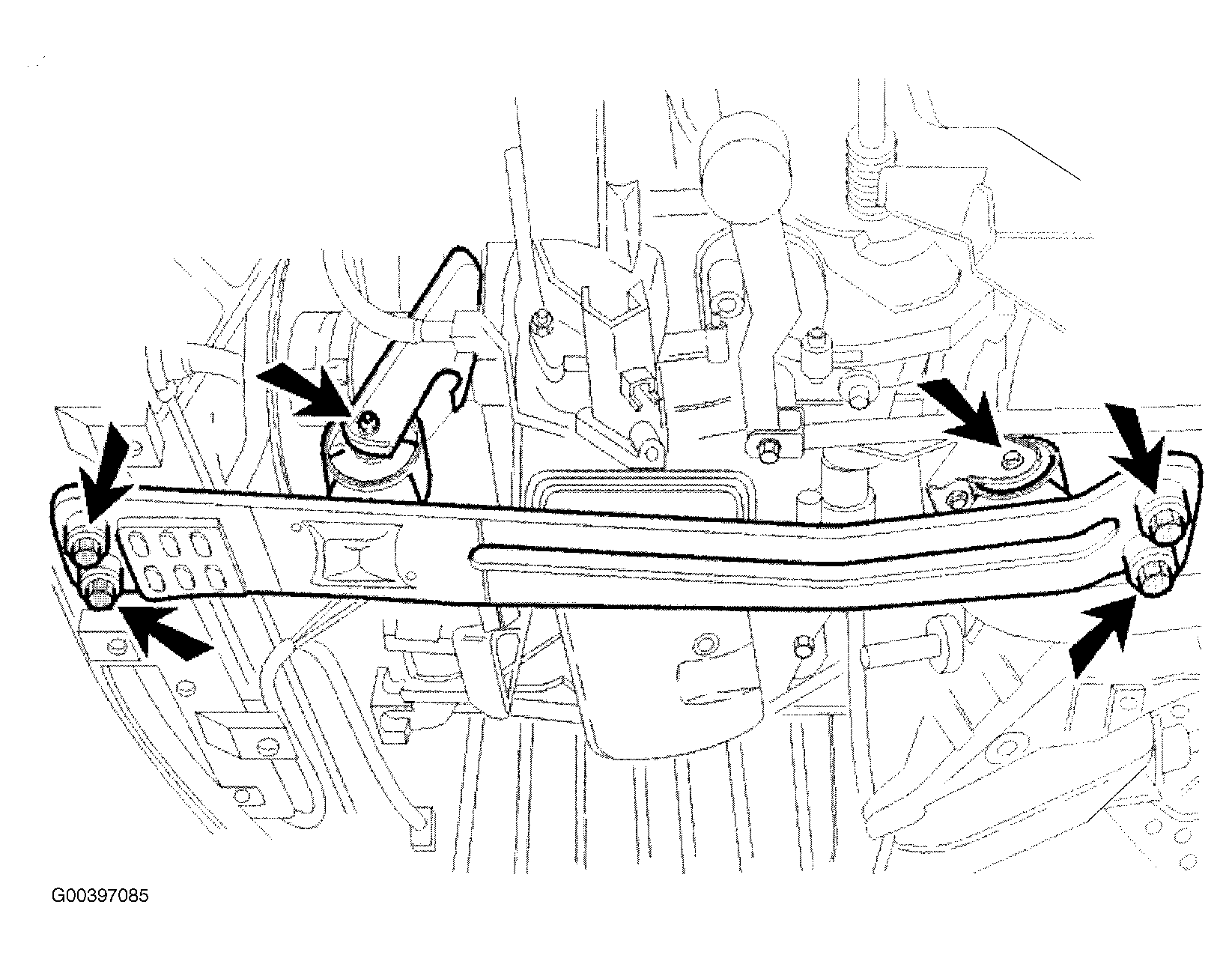

• the member on the front and rear engine mountings. See Figure .
• the four screws for the central front-rear member.

Tighten to 70 Nm.

Tighten:

• the screws in the engine mountings. Tighten to 55 Nm
• the heat deflector plate for the rear engine mounting. Tighten to 10 Nm.
