Front Disc
WARNING: This page is about a different variant/trim than selected.
- Raise and support vehicle. Remove wheel to be measured.
- Remove mounting screw for brake caliper holder. Hang brake caliper from spring using a wire.

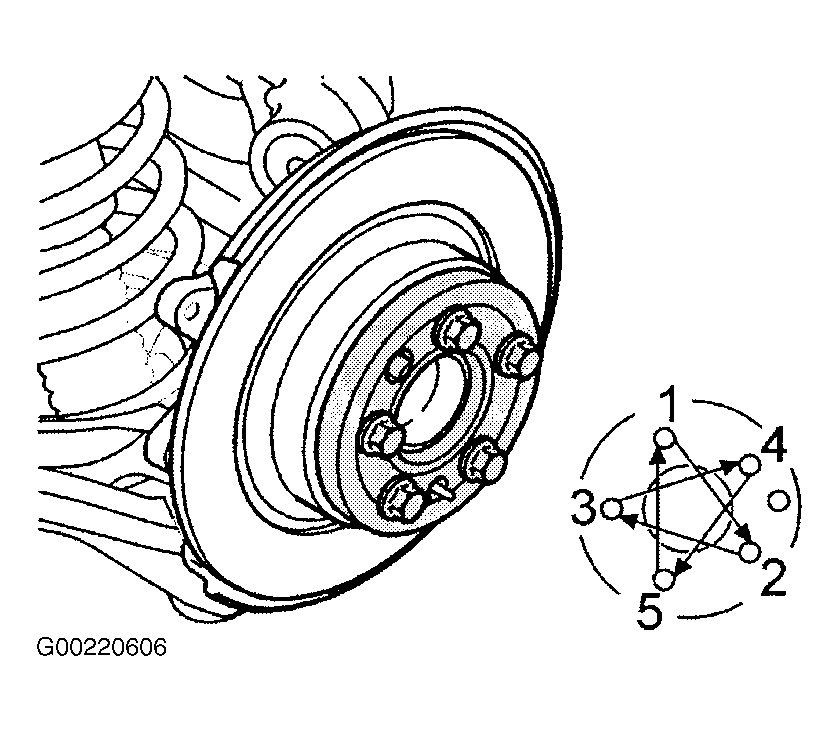

- Install Clamp Ring (999 5419) included in Measurement Tool Set (999 5418) on hub. See Fig 1 .
- Secure clamp ring using wheel lug nuts.
- Ensure mating surfaces on brake disc and clamp ring are clean and free of rust.
- Tighten studs lightly, then tighten crosswise to 81 ft. lbs. (110 N.m).

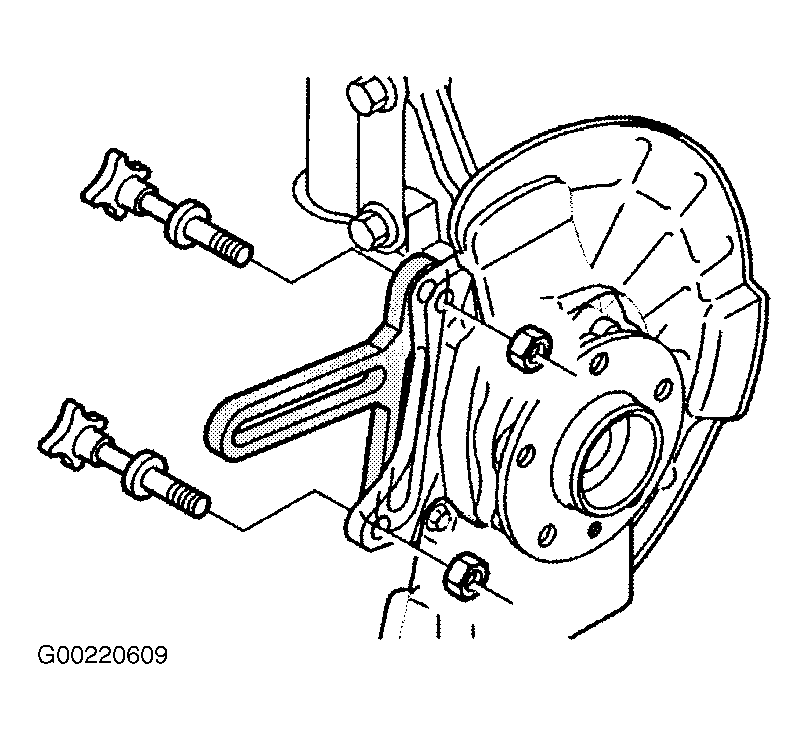

- Install bracket for upper mounting hole first. See Fig 2 .
- Press bracket against constant velocity joint housing.
- Install lower mounting screw in hole. At the same time, secure bracket using lower screw and tighten.

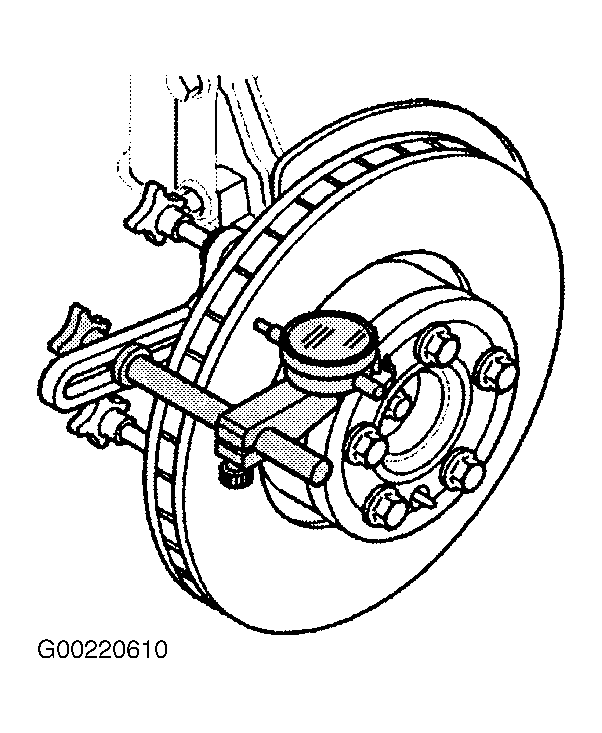

- Install dial indicator in the bracket. See Fig 3 .

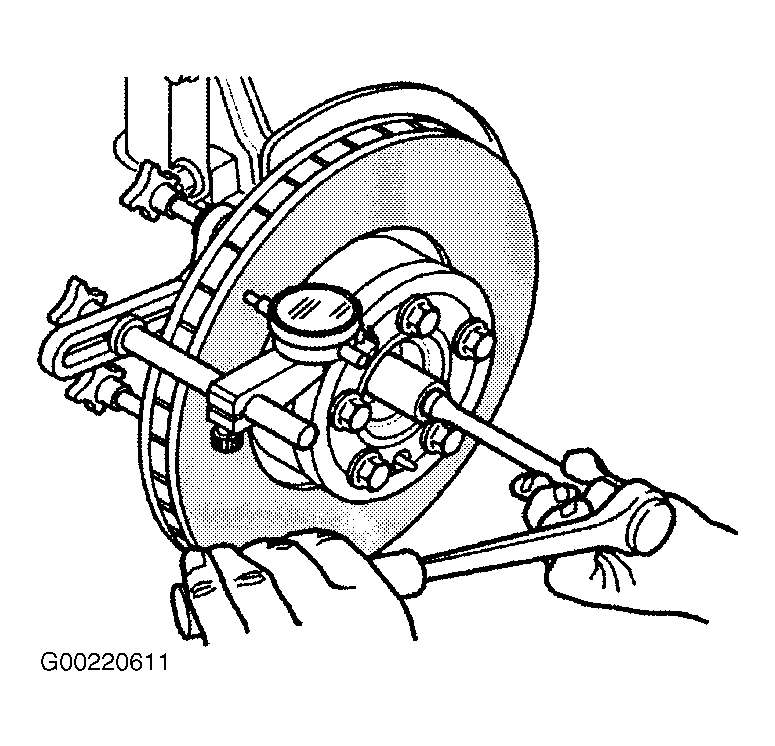

- Place dial indicator point against brake disc. See Fig 4 .
- Rotate brake disc and note dial indicator lateral run-out.
- Brake disc lateral runout must not exceed specifications. See DISC BRAKE SPECIFICATIONS . If lateral run-out exceeds this value, replace brake disc.
- To install, reverse removal procedure. Use new bolts on caliper holder and tighten to specifications. See TORQUE SPECIFICATIONS .
