Installing the collision protection system over the steering gear

NOTE:

For tightening torques, see: Tightening torque .

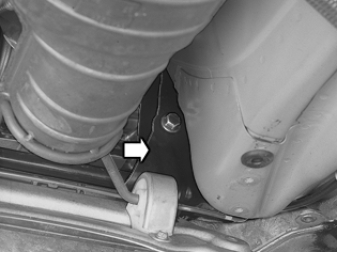

Fig 1: Collision Protection Over Steering Gear

GLL109214

Courtesy of VOLVO CARS OF NORTH AMERICA.

Applies only to right-hand drive cars

Install the 2 screws. Tighten.
