Installation Of Steering-Column Lock: Notes

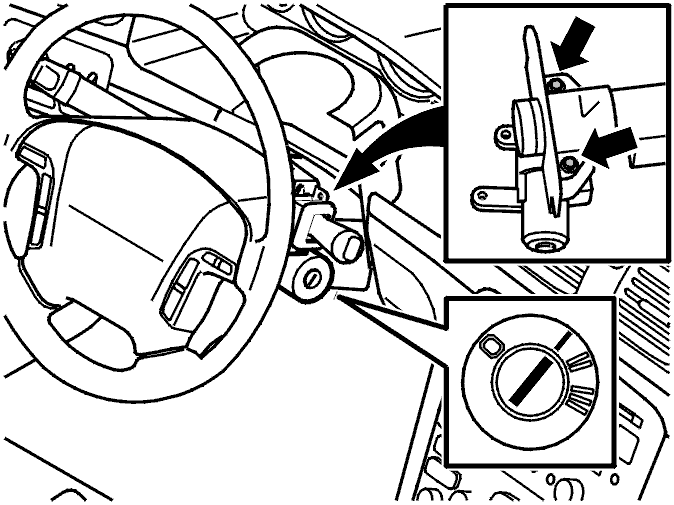

Fig 1: Identifying Ignition Key Slot & New Steering Wheel Lock

Courtesy of VOLVO CARS OF NORTH AMERICA.

Insert the ignition key in the new steering-column lock.
Check that the key is in position I and that the lock lug on the steering-column lock is down.
Install the new steering-column lock against the cap on the steering column.
Install new security screws.
Tighten the security screws until screw heads break off.
