Checking The Component And Wiring

Check the camshaft reset valve connector. Check for contact resistance. Check for oxidation.

Check the signal cable between engine control module (ECM) terminal #A72 (#B12) and camshaft reset valve terminal #2. Check for a short-circuit to ground.

Remedy as necessary.

Other information

• see CONNECTING THE BREAKOUT BOX
• see SIGNAL SPECIFICATION
• see VVT SOLENOID
• see CONTENTS

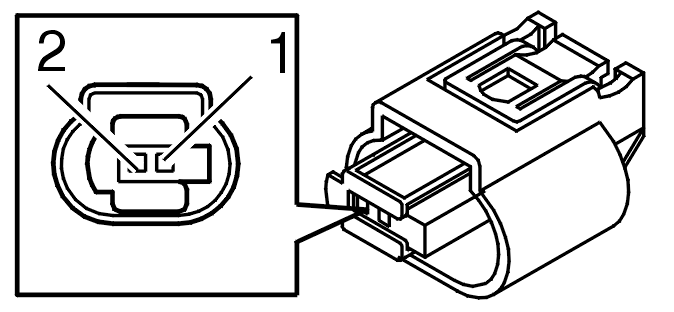

Fig 1: Identifying 2-Bit Connector

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying VCT2000 Diagnostic Tool Symbol In VIDA (Volvo Scan Tool)

Courtesy of VOLVO CARS CORPORATION

Fig 3: Identifying Variable Valve Timing (VVT) Unit

Courtesy of VOLVO CARS CORPORATION

• Continue

  Refer to VERIFICATION
