Explanation Of Dimensions

Fig 1: Identifying Symbol Dimensions In The Table

Courtesy of VOLVO CARS CORPORATION

The dimensions in the table are listed as follows:

Symbol number 1 means that the measurement is taken from the center.

Symbol number 2 means that the measurement is taken from an edge.

Fig 2: View Of Symbol Number 3

Courtesy of VOLVO CARS CORPORATION

Symbol number 3 means that the measurement is taken from a cut mark.

Measurements are taken from the bottom of the recess, see illustration.

If only one measuring point symbol is displayed, the symbol applies to both measuring points. Otherwise the symbols are shown on each side of the dimension in the illustration.

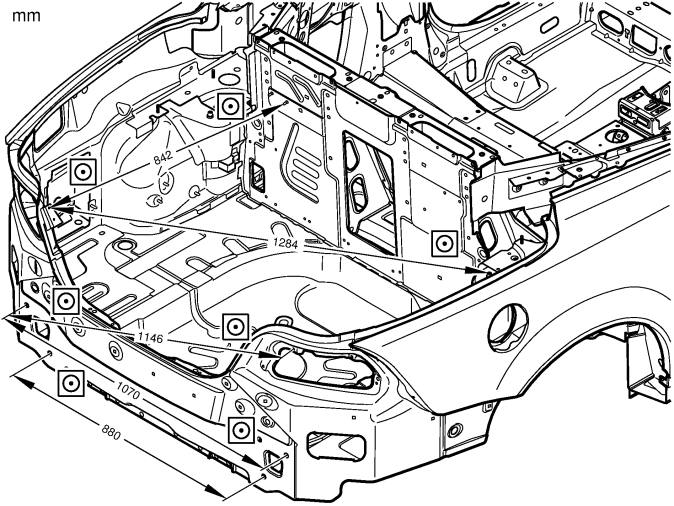

Fig 3: View Of Symbol Number 1

Courtesy of VOLVO CARS CORPORATION

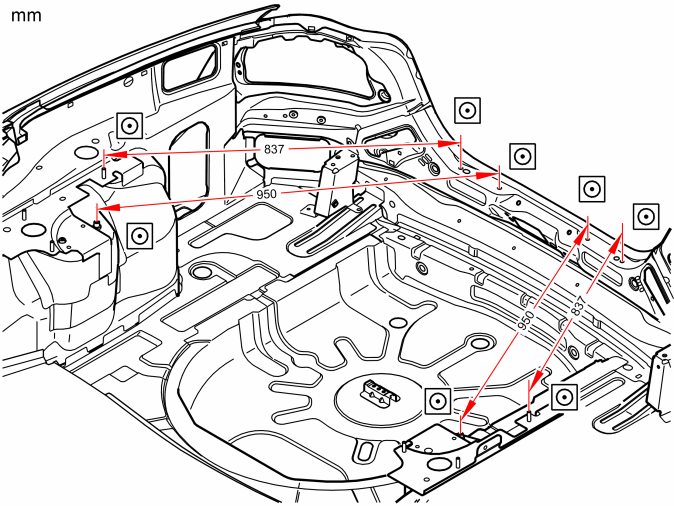

Fig 4: View Of Symbol Number 1

Courtesy of VOLVO CARS CORPORATION

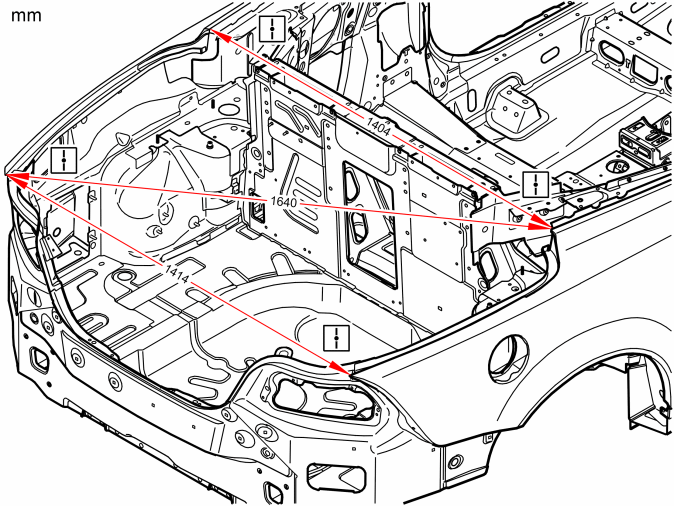

Fig 5: View Of Symbol Number 1

Courtesy of VOLVO CARS CORPORATION
