Diagnostic Trouble Code (DTC) Information KVM-B10C324
Condition
A timer starts when the unlocking pull switch is activated.
The diagnostic trouble code (DTC) is stored if the control module detects that:
- Pull switch unlocking has been activated for longer than 5 minutes.
The control module's test for the diagnostic trouble code (DTC) starts in the event of:
- Closing of spring bolt switch.
NOTE:
The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.
Substitute Value
- None.
Possible Source

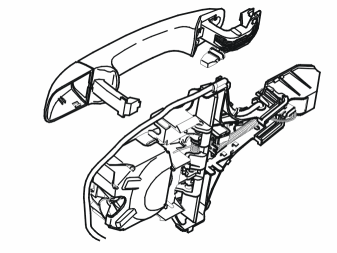

- Door handle has been held out for longer than 5 minutes.
- Damaged switch.
- The signal cable is short-circuited to ground.
Fault symptom[s]
- Delayed unlocking
