Passenger Compartment

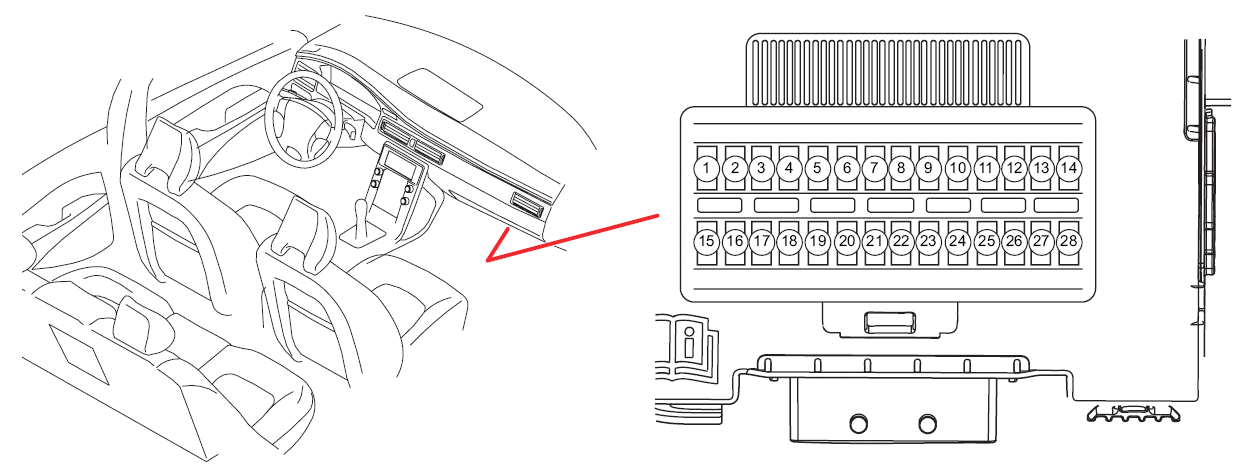

Passenger Compartment Fuse Assignments (Central Electronic Module - CEM)
| Fuse No. | Module No. | Fuse Function | Amperage |
|---|---|---|---|
| F1 | 7/149 | Rain Sensor Module (RSM) | 5 |
| F2 | 4/9 | Supplemental Restraint System (SRS) | 10 |
| 7/93 | Occupant Weight Sensor (OWS) | -- | |
| F3 | 4/16 | Brake Control Module (BCM) | 5 |
| F4 | 3/65 | Switch, heated rear seat | 7.5 |
| 7/51 | Accelerator pedal sensor | -- | |
| 8/48 | Auto-dimming rearview mirror | -- | |
| 9/42 | PTC element | -- | |
| F6 | 3/281 | Infotainment Control Module (ICM) | 15 |
| 4/124 | Accessory USB unit (AUU) | -- | |
| 16/1 | Integrated Audio Module (IAM) | -- | |
| 16/109 | DVD player/control module | -- | |
| F7 | 3/4 | Steering wheel switch left (SWSL) | -- |
| 3/131 | Steering wheel switch right (SWSR) | 7.5 | |
| 3/135 | RTI switch | -- | |
| F9 | 10/1 | Left-hand front lamp housing | 15 |
| 10/2 | Right-hand front lamp housing | -- | |
| F10 | 4/33 | Sunroof Module (SRM) | 20 |
| F11 | 10/48 | Right-hand reversing light | 7.5 |
| 10/55 | Left-hand reversing light | -- | |
| F13 | 10/5 | Fog light, Front left | 15 |
| 10/6 | Fog light, Front right | -- | |
| F14 | 6/127 | Washer motor | 15 |
| F15 | 4/80 | Forward Sensing Module (FSM) | 10 |
| F17 | 3/27 | Switch unit, power passenger seat | 7.5 |
| 3/176 | Switch, driver's door power window | -- | |
| 3/291 | Tailgate closing switch | -- | |
| 4/76 | Remote control unit for garage door opener | -- | |
| 7/238 | Alcolock sensor | -- | |
| 10/29 | Glove compartment lighting | -- | |
| 10/114 | Left-hand vanity mirror lighting | -- | |
| 10/115 | Right-hand vanity mirror lighting | -- | |
| 10/125 | Left-hand front courtesy lighting | -- | |
| 10/126 | Right-hand front courtesy lighting | -- | |
| 10/127 | Lighting, cargo compartment, left-hand side | -- | |
| 10/128 | Lighting, cargo compartment, right-hand side | -- | |
| 10/150 | Rear reading light | -- | |
| 26/6 | Converter/control module, sill moldings, driver's side | -- | |
| 26/7 | Converter/control module, sill moldings, passenger side | -- | |
| F18 | 5/1 | Driver Information Module (DIM) | 5 |
| F19 | 4/52 | Power Seat Module (PSM) | 5 |
| F21 | 4/119 | Remote Keyless Entry (RKE) | 5 |
| 4/119.2 | Remote Receiver Module (RRX) | -- | |
| 7/199 | Ultrasonic sensor (IMS) | -- | |
| 7/214 | Heartbeat sensor | -- | |
| F22 | 6/33 | Fuel pump | 20 |
| F23 | 4/102 | Steering Column Lock module (SCL) | 20 |
| F25 | K6-B | Relay, soldered | 10 |
| K12 | Relay, soldered | -- | |
| 6/8 | Lock motor central locking, trunk lid/tailgate | -- | |
| 6/37 | Lock motor, fuel filler cover | -- | |
| F26 | 4/6 | Climate Control Module (CCM) | 5 |
| 16/35 | Siren Control Module (SCM) | -- | |
| 17/13 | Data link connector | -- | |
| F27 | 3/132 | Start Control Unit (SCU) | 5 |
| F28 | 4/93 | Keyless Vehicle Module (KVM) | 5 |
| 10/19 | Auxiliary brake light | -- | |
| 10/43 | Right brake light | -- | |
| 10/50 | Left brake light | -- |
Passenger Compartment Soldered Relay Assignments (CEM)
| Relay No. | Relay Function |
|---|---|
| K1 | Front fog lights |
| K2 | High beam |
| K3 | Reversing lights |
| K5-A | Washer motor |
| K5-B | Washer motor |
| K6-B | Central locking motor, trunk lid |
| K8 | Fuel pump |
| K9 | Steering Column Lock module (SCL) |
| K10-A | Seat Heating Module (SHM), interior lighting |
| K12 | Lock motor, fuel filler cover |
