Rustproofing Diagram For Cavity Protection

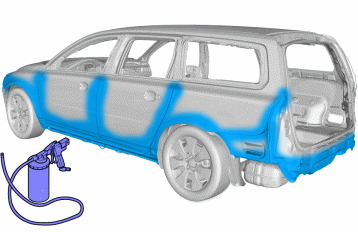

Fig 1: Vehicle Body Cavity Protection Material Application Locations

Courtesy of VOLVO CARS CORPORATION

see 981 4075 SPRAY GUN

Use:  Cavity protection, 1161682

Insert the hose in the cavity and spray at the same time as the hose is pulled out slowly.

For body repairs, the marked areas in the illustrations shall be rustproofed with extra thoroughly. For example, this applies to welded joints and areas that have been reworked in another way.
