Crankshaft Position Sensor: Service and Repair






Crankshaft position sensor (CKP)

Removal

Note! Removal steps in this procedure may contain installation details.

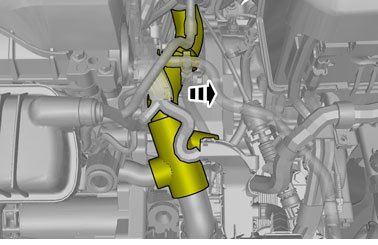

Remove the air filter housing Refer to: Air cleaner housing, B5254T7 Service and Repair

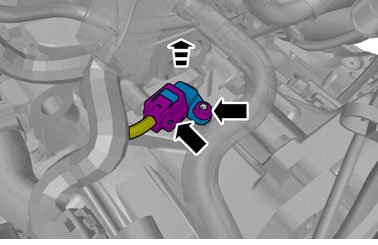

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.
