Bumper Rail, Front: Installation

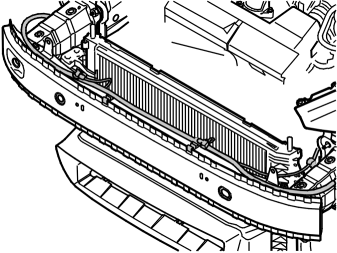

Installing the bumper rail

Courtesy of VOLVO CARS CORPORATION

Install:

• the bumper rail with 6 M6 screws. Do not install the two screws of the power steering unit.
• the radiator with 4 M8 screws
• the power steering unit with 4 M8 screws
• the cable harness and washer hose to the bumper rail
• the horn with 2 M6 screws
• the washer fluid reservoir with 1 M6 screw
• the front section, see FRONT END .

Rustproof. See RUSTPROOFING .
