Exploded View Of The Generator

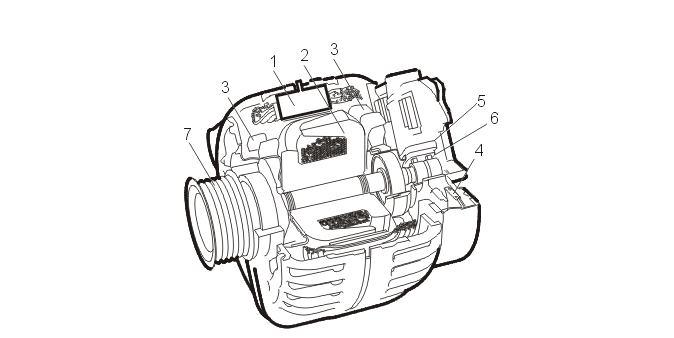

Fig 1: Identifying Generator Components

Courtesy of VOLVO CARS CORPORATION

The main components of the generator consist of:

Stator
Rotor with slip rings
Integrated cooling fans
Rectifier bridge
Charge regulator
Carbon brushes
Pulley with freewheel.

Alternator 150 A has double stator windings and diodes.
