Fuel Pressure Sensor: Service and Repair

Operation number: 28406-3

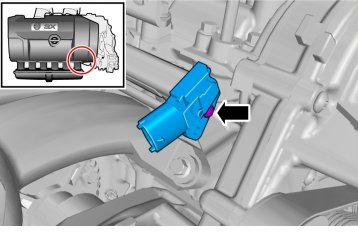

Pressure sensor, fuel rail (FRP)

Removal

Note! Removal steps in this procedure may contain installation details.

Follow instructions about safety information gasoline-fuel system Refer to: Safety information gasoline - fuel system, B6304T4, B6324S5, B6324S4 Service Precautions

Perform draining Refer to: Fuel system pressure release, B6304T4, B6324S5, B6324S4 Fuel System Pressure Release








Torque: M5, 5 Nm

Installation

To install, reverse the removal procedure.
