Knock Sensor: Service and Repair

Operation number: 28402-2

Knock sensor (KS)

Removal

Note! Removal steps in this procedure may contain installation details.

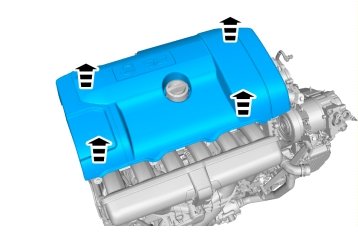

Remove intake manifold Refer to: Induction pipe, B6324S4, TF-80SC, B6324S5, TF-80SC, B6324S5, TF-80SC AWD Service and Repair

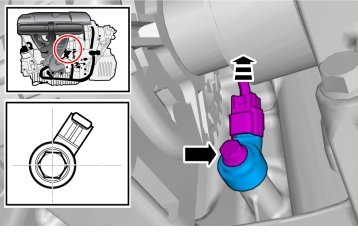

Torque: Knock sensor, 20 Nm

Remove oil cooler engine Refer to: Oil cooler, engine, B6324S5, B6324S4 Service and Repair

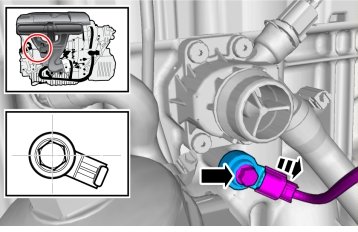

Torque: Knock sensor, 20 Nm

Installation

To install, reverse the removal procedure.
