Power Liftgate Module

Operation number: 36505-2

Power Liftgate Module

Removal

Note! Removal steps in this procedure may contain installation details.

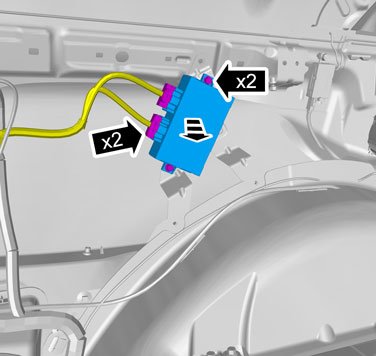

Remove left side side panel cargo space Refer to: Side panel load space Side Panel Loadspace





Note! Make sure that the component terminals are not bent or damaged.

Torque: M6, 10 Nm

Installation

To install, reverse the removal procedure.

Order and download appropriate software Programming and Relearning
