Fuel System Pressure, Checking

Special tools
	T9995011 MANOMETER (FUEL PRESSURE) CI, LH, LE  Tool number:  T9995011 Tool description:  MANOMETER (FUEL PRESSURE) CI, LH, LE Tool boards:
	T9995479 ADAPTER (CHECK-FUEL PRESSURE)  Tool number:  T9995479 Tool description:  ADAPTER (CHECK-FUEL PRESSURE) Tool boards:

Depressurize the fuel system. See FUEL SYSTEM, DRAINING

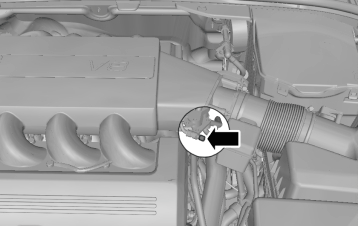

Fig 1: Locating Test Port

Courtesy of VOLVO CARS CORPORATION

Fig 2: Identifying Tools 9995011 and 9995479

Courtesy of VOLVO CARS CORPORATION

see 9995011

see 9995479

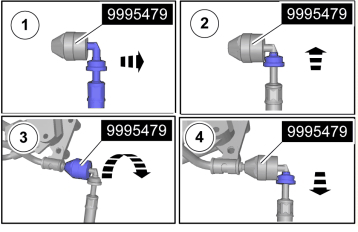

Fig 3: Identifying Gauge Installation

Courtesy of VOLVO CARS CORPORATION

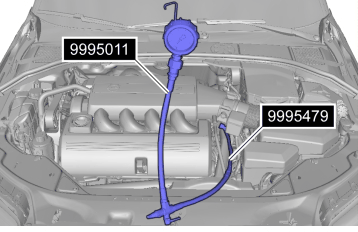

Fig 4: Identifying Gauge Installed

Courtesy of VOLVO CARS CORPORATION

see 9995011

see 9995479

Start the engine and check the fuel line pressure. See SPECIFICATIONS, MECHANICAL (2005-2010)

Switch off the engine and check the residual pressure. See SPECIFICATIONS, MECHANICAL (2005-2010)

Depressurize the fuel system. See FUEL SYSTEM, DRAINING

Remove in reverse order.
