Alignment: Specifications

NOTE: This article contains changes called out by Retailer Technical Journal 19674







Adjusting toe angle, a
Adjusting to positive values generates toe-in angle while adjusting to negative values generates toe-out angle.

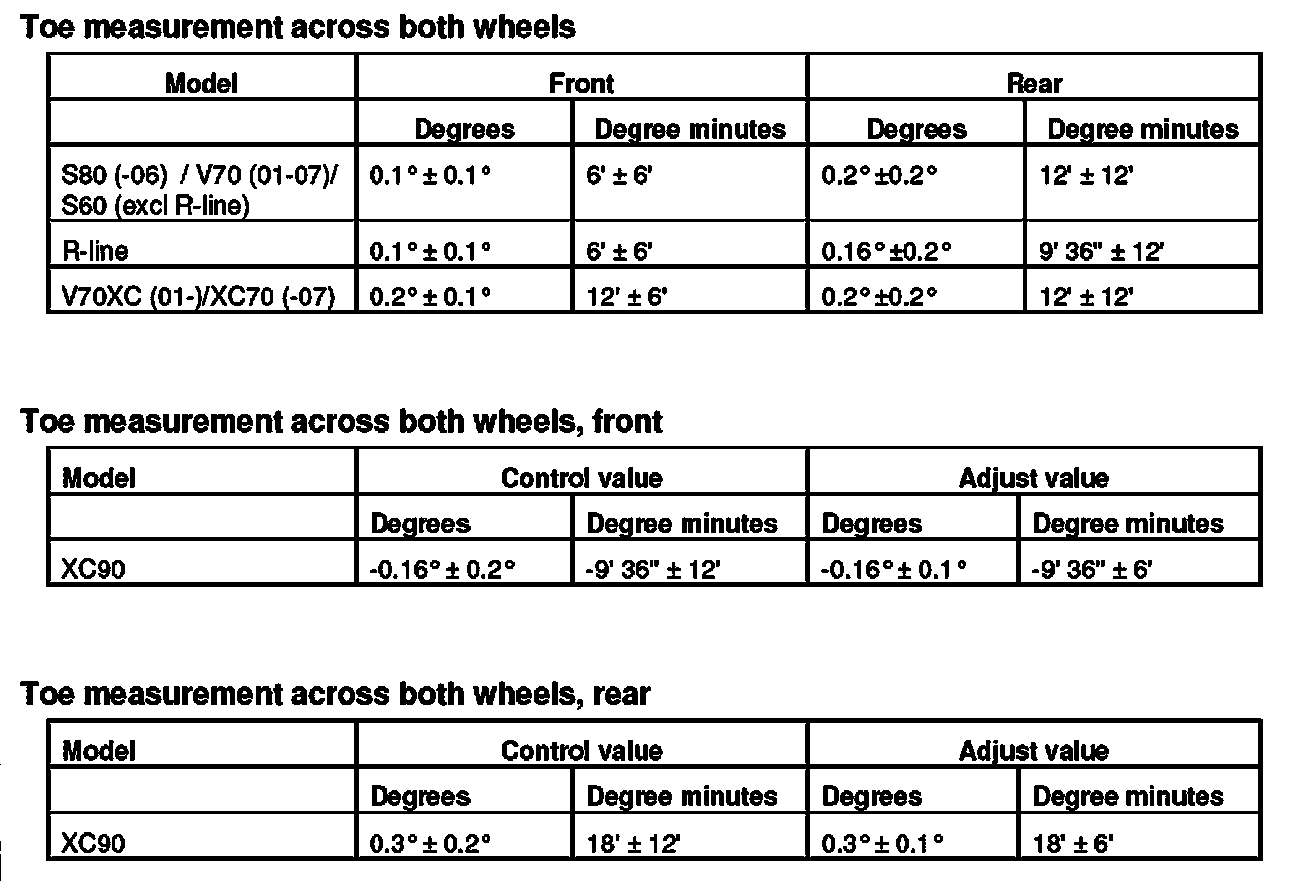

Note! All published toe values are for total toe measurement (left and right wheels together).

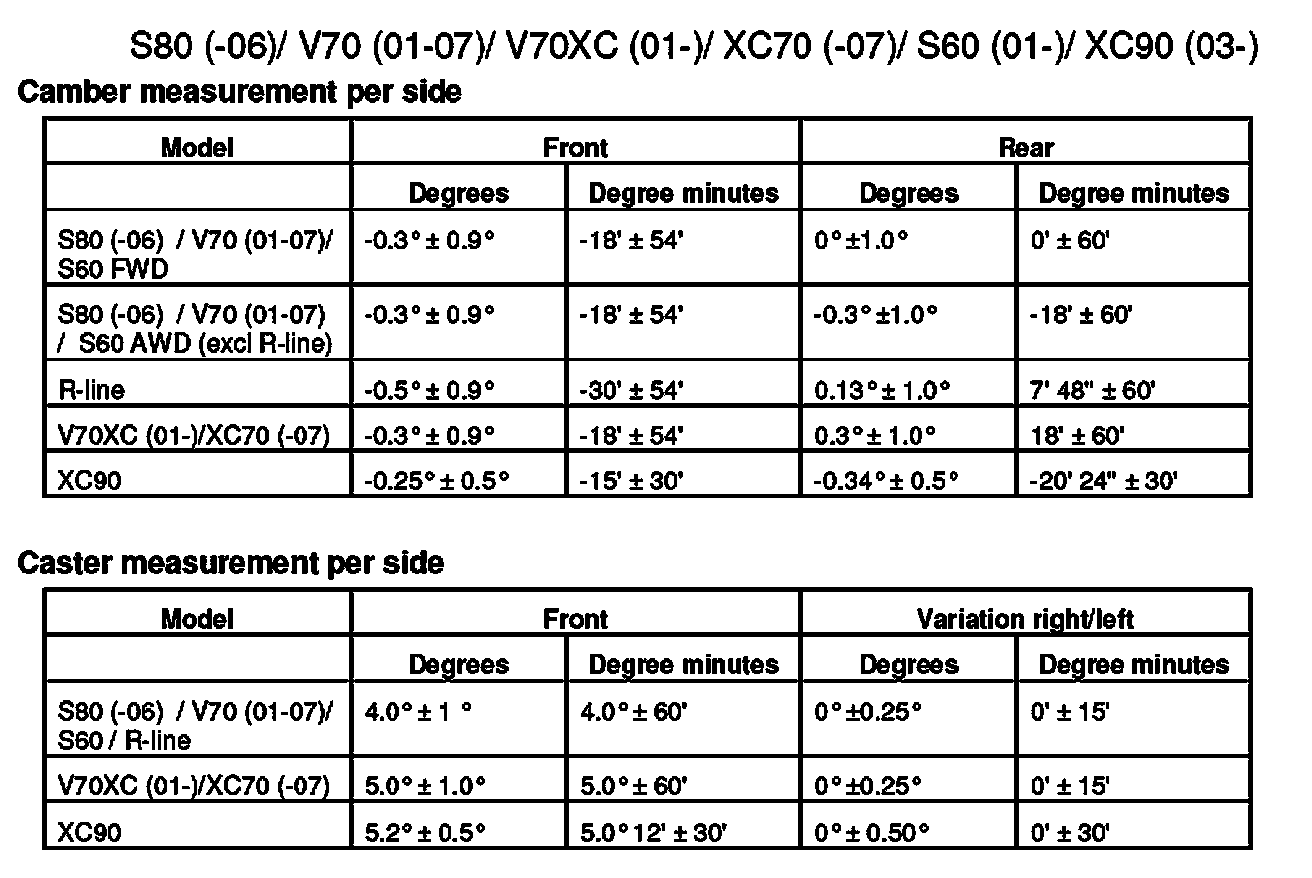

S60/ S80( -06 )/ V70( 01-07 )/ V70XC,XC70( 01-07 )/ XC90
