Clutch Switch: Service and Repair






Pedal position sensor clutch, replacing

Removal

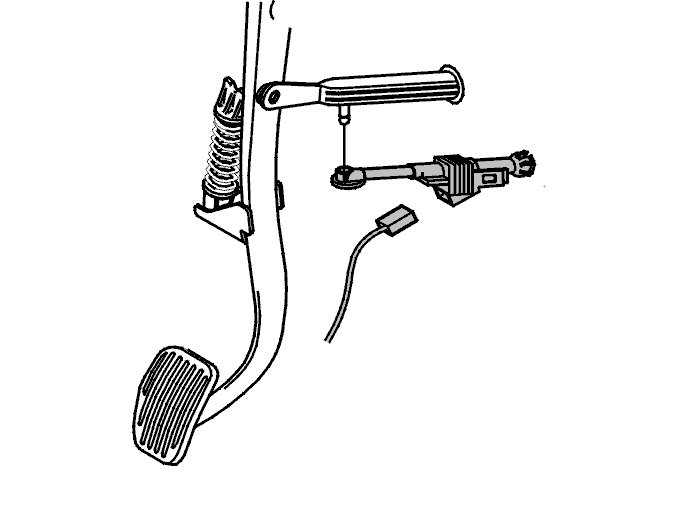

Clutch pedal position sensor




- Remove the soundproofing panel. See Soundproofing panel, replacing Soundproofing Panel, Replacing
- Remove the 2 ball connectors from the master cylinder and the arm
- Disconnect the connector.

Installation

Clutch pedal position sensor
In reverse order.
