Signal Specification, Engine Control Module (ECM)

Signal specification

All values indicated below are between respective connection in column 1 and #A C2 on the breakout box. If this is not the case, it is indicated within brackets.

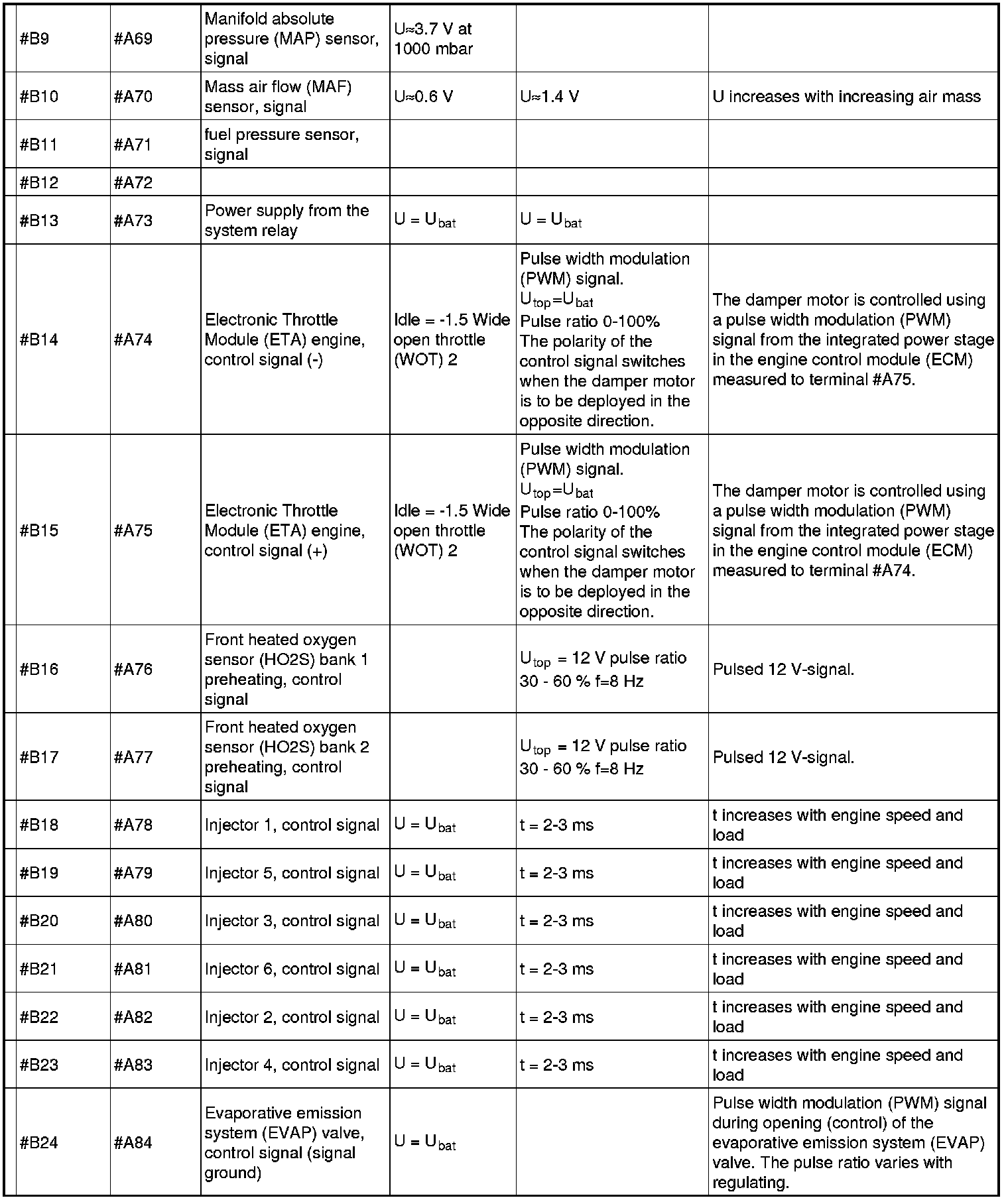

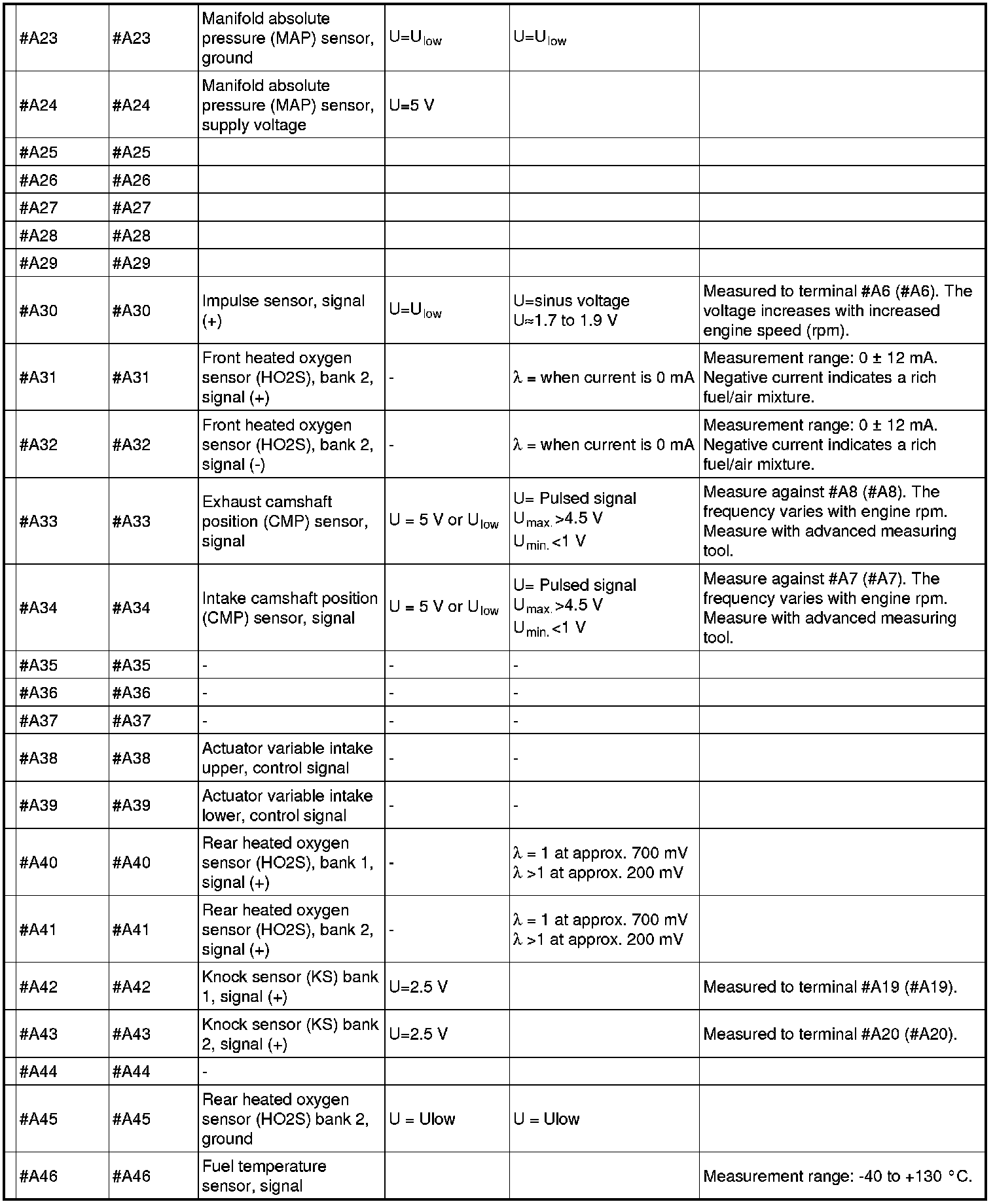

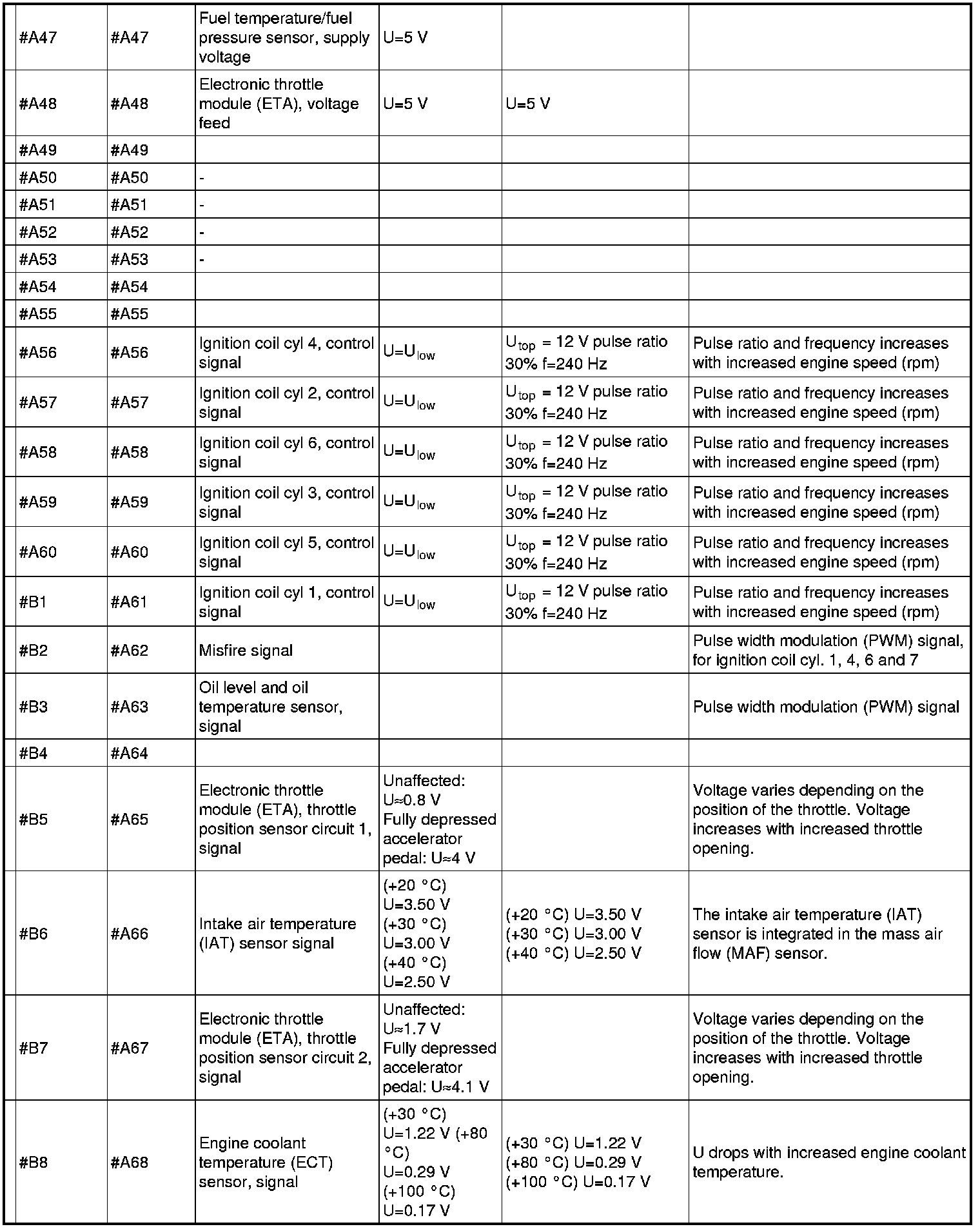

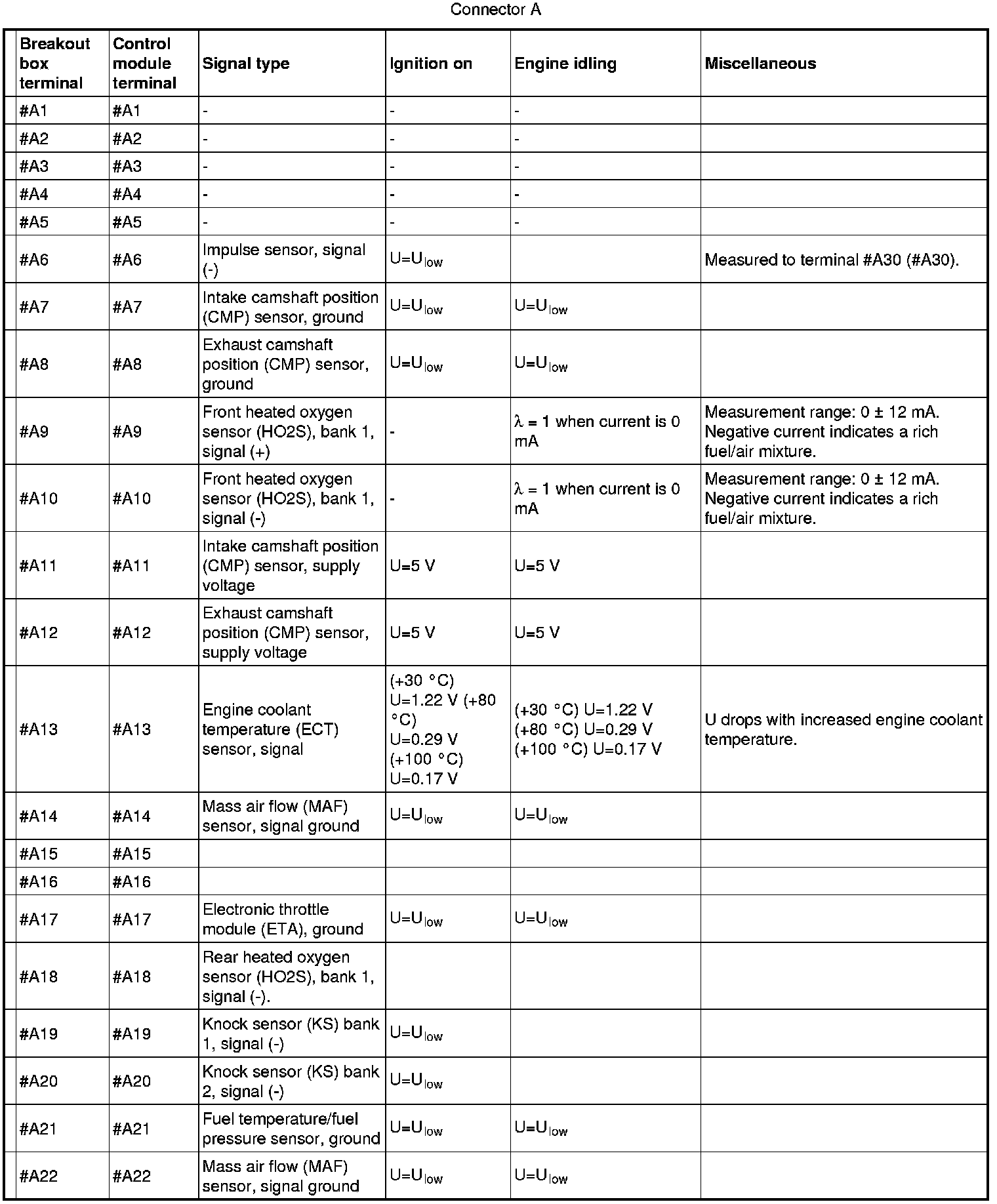

Connector A (96-pin) corresponds to terminals #A1 - #B36 on the breakout box.

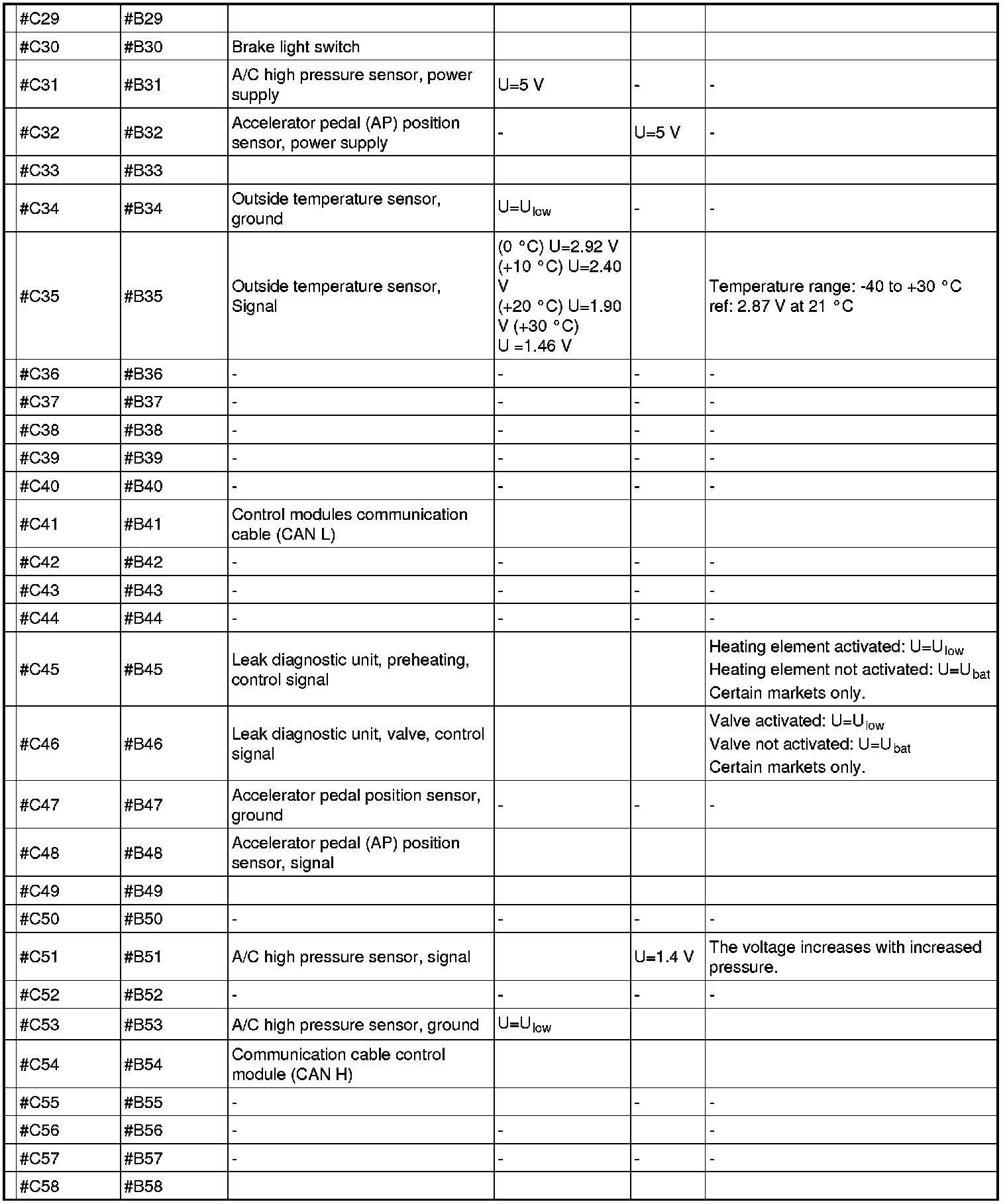

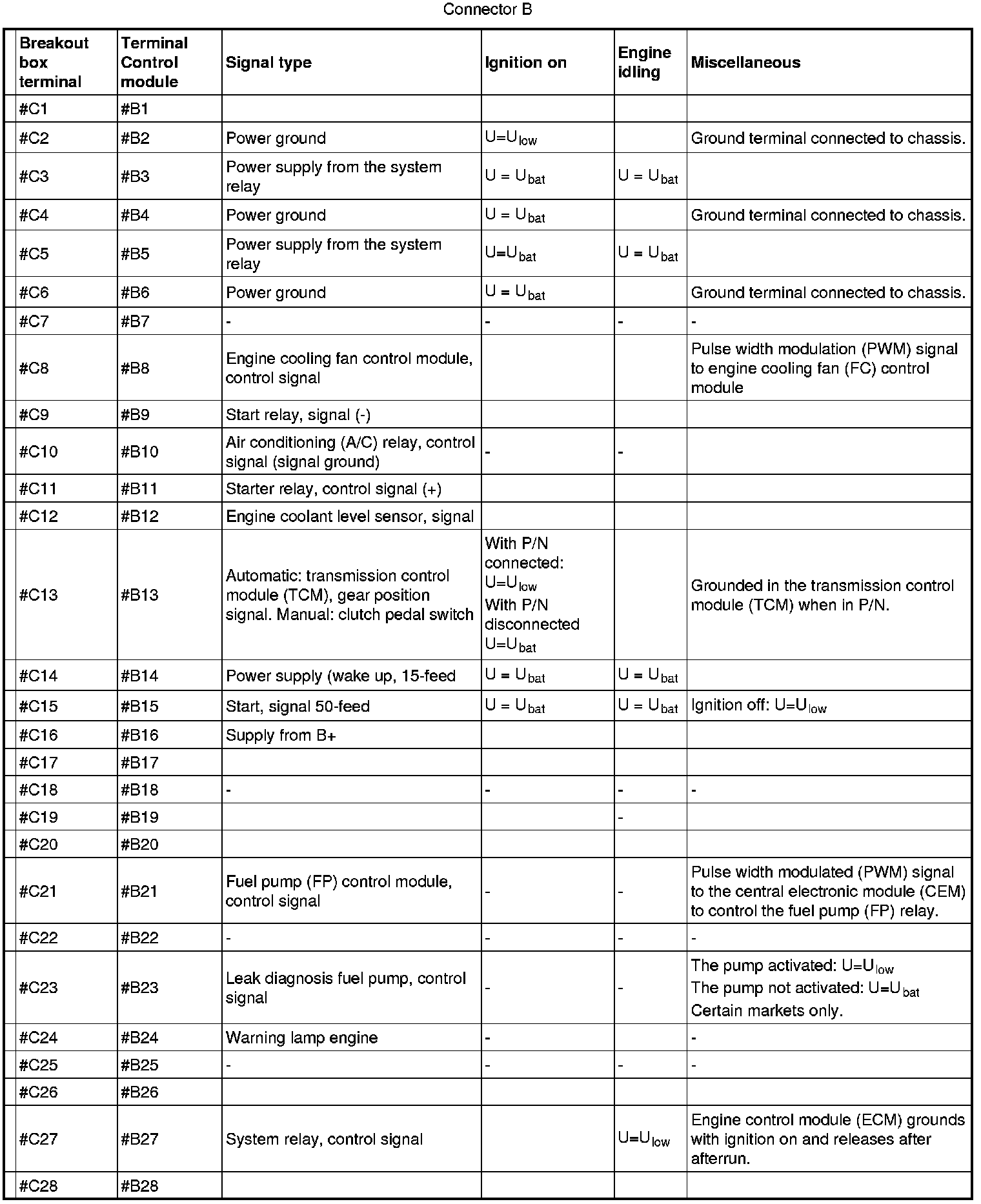

Connector B (58-pin engine side) corresponds to terminals #C1 - #58 on the breakout box.

Note! Connect the breakout box and check the ground connections before starting to measure.
