Seat Temperature Control Module: Service and Repair

Seat heating module (SHM), replacing

Note! The illustrations in this service information are used for different model years and/or models. Some variation may occur. However, the essential information in the illustrations is always correct.

Preparatory work

Ignition off




Move the seat to its uppermost position.
Ignition off.

Removal

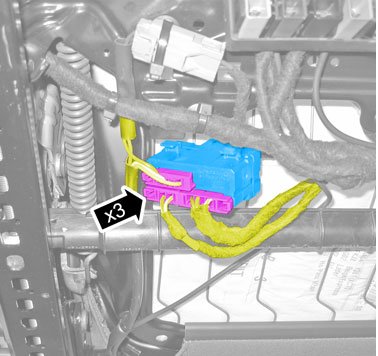

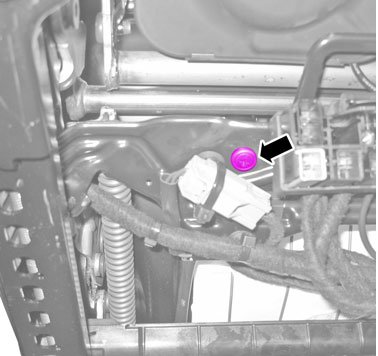

Removing the seat heating module (SHM)














Installation

To install, reverse the removal procedure.

Identify according to: DIAGNOSTICS/VEHICLE COMMUNICATION/Advanced/CCM/Identifying components on LIN-net belonging to Climate control module (CCM)
