Parking Assistance Camera (PAC) (2007-2014): Design: Camera

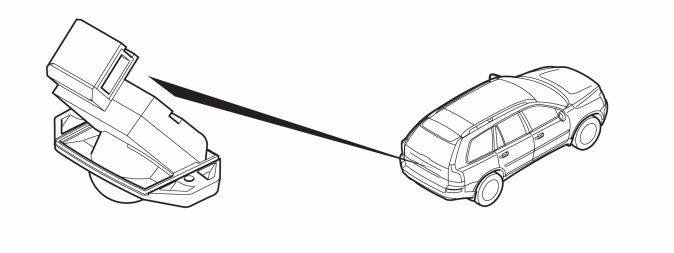

The camera is located in the tailgate, slightly to the right of the handle.
After installing a new camera, it must be set so that the help lines are displayed in the correct place on the screen. This is carried out using a check procedure in Volvo's diagnostic tool. By activating the check procedure, the view of the camera is displayed on screen with a general semi-transparent pattern that should match the contour of the bumper, at the lower edge of the image.
The camera is only activated when the Parking Assistance Camera (PAC) is activated.
