Universal Serial Bus (USB) Module: Remove

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Removal steps in this procedure may contain installation details.

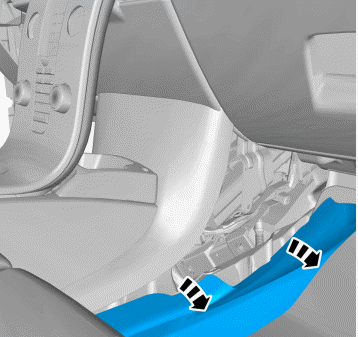

Fig 1: Removing Side Panels

Courtesy of VOLVO CARS CORPORATION

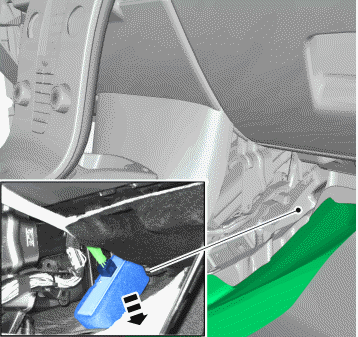

Fig 2: Locating Module

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

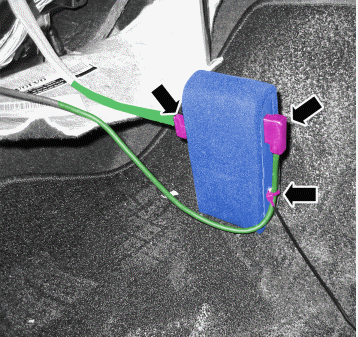

Fig 3: Identifying Connectors

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.
