Installing Service Clips

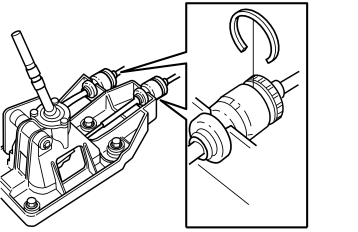

Fig 1: Gear Selector And Clip

Courtesy of VOLVO CARS CORPORATION

Ensure that the gear selector cable is engaged before fitting the blue clip. Press the clip into position as shown in the illustration.

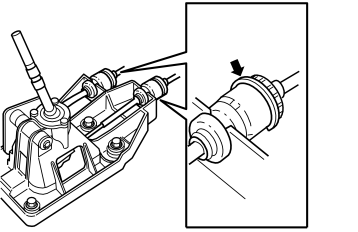

Fig 2: Clip Positioned In Groove

Courtesy of VOLVO CARS CORPORATION

Check that the clip is positioned in the groove as shown in the illustration.

Fig 1: Gear Selector Cable And Clip

Courtesy of VOLVO CARS CORPORATION

Ensure that the gear selector cable is engaged before fitting the blue clip. Press the clip into position as shown in the illustration.

Fig 2: Clip Positioned In Groove

Courtesy of VOLVO CARS CORPORATION

Check that the clip is positioned in the groove as shown in the illustration.
