Diagnostic Trouble Code (DTC) Information

Condition

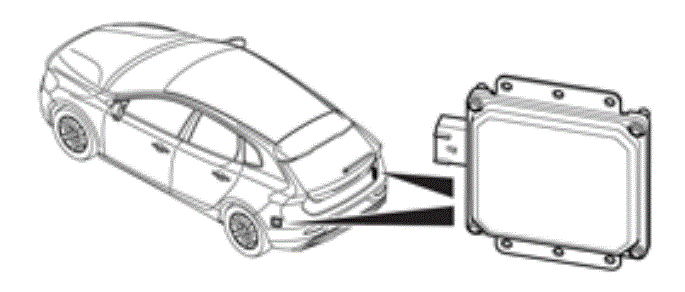

Side Obstacle Detection Control Module left (SODL)/right (SODR) checks the software in the control module.

The diagnostic trouble code (DTC) is stored if the control module detects that:

Software is missing or is incompatible with the hardware.

The control module's test for the diagnostic trouble code (DTC) starts in the event of:

Engine running.

NOTE:

The control module can only detect the fault once the test has been started and the diagnostic trouble code (DTC) is stored when the conditions are met.

Courtesy of VOLVO CARS CORPORATION

Substitute Value

None.

Possible Source

Software error.

Fault symptom[s]

XR, Blind spot information system (BLIS)/Does not work
YC, Cross Traffic Alert (CTA)/Does not work
7G, Text window and warning symbol/Yellow symbol and text message
