Shift Interlock

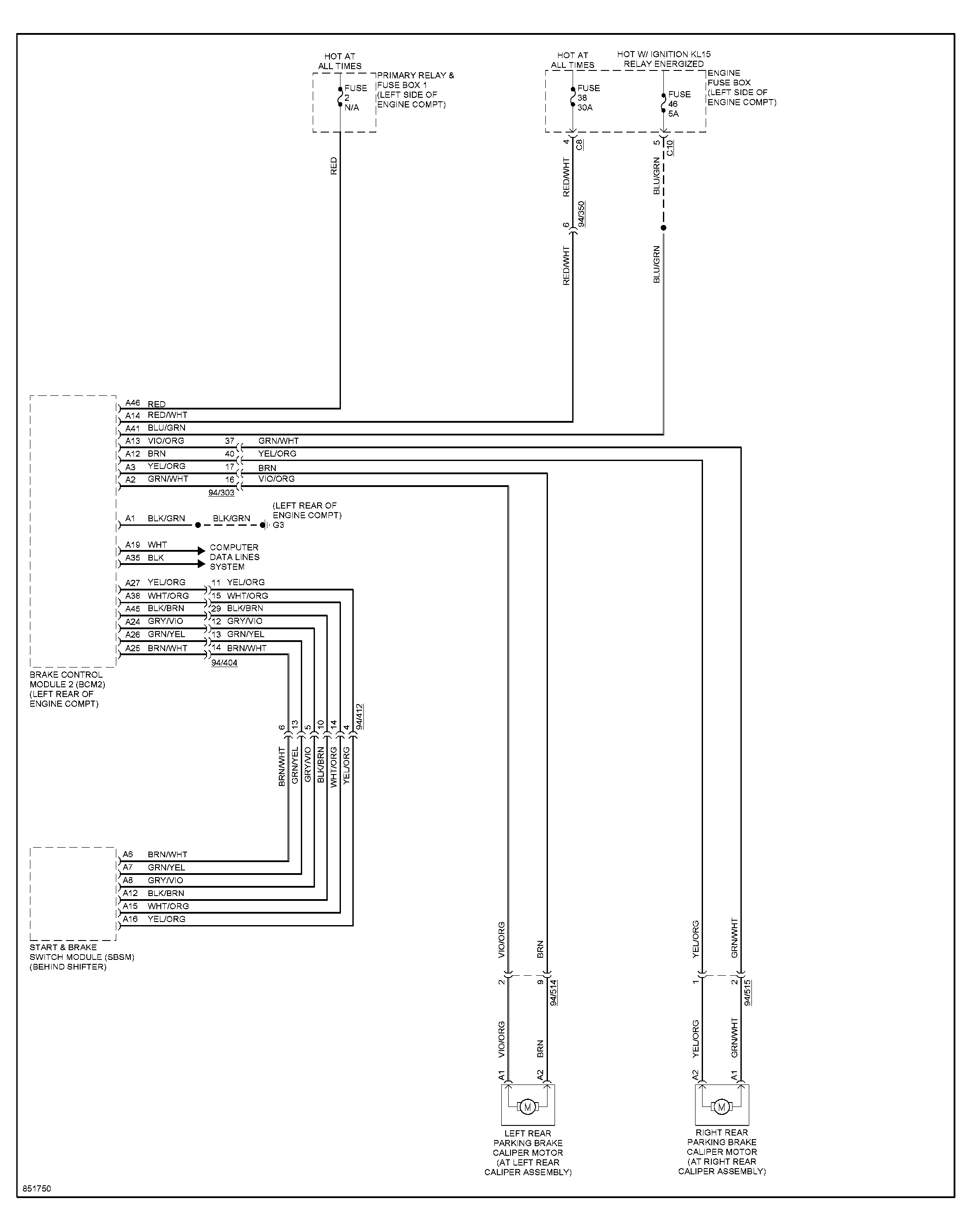

Fig 1: Electric Parking Brake Circuit, Except Hybrid
Fig 2: Electric Parking Brake Circuit, Hybrid

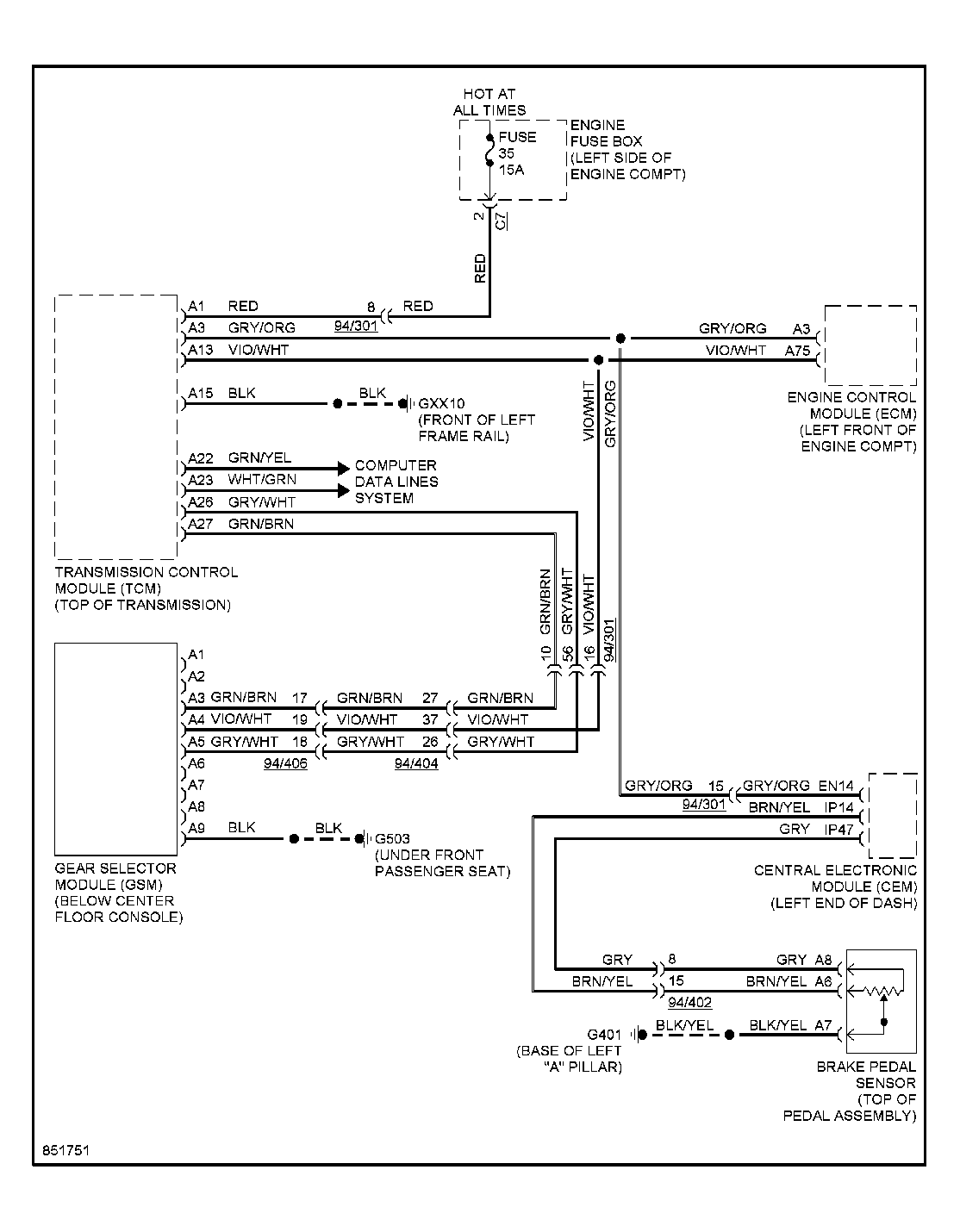

Fig 3: Shift Interlock Circuit, Except Hybrid

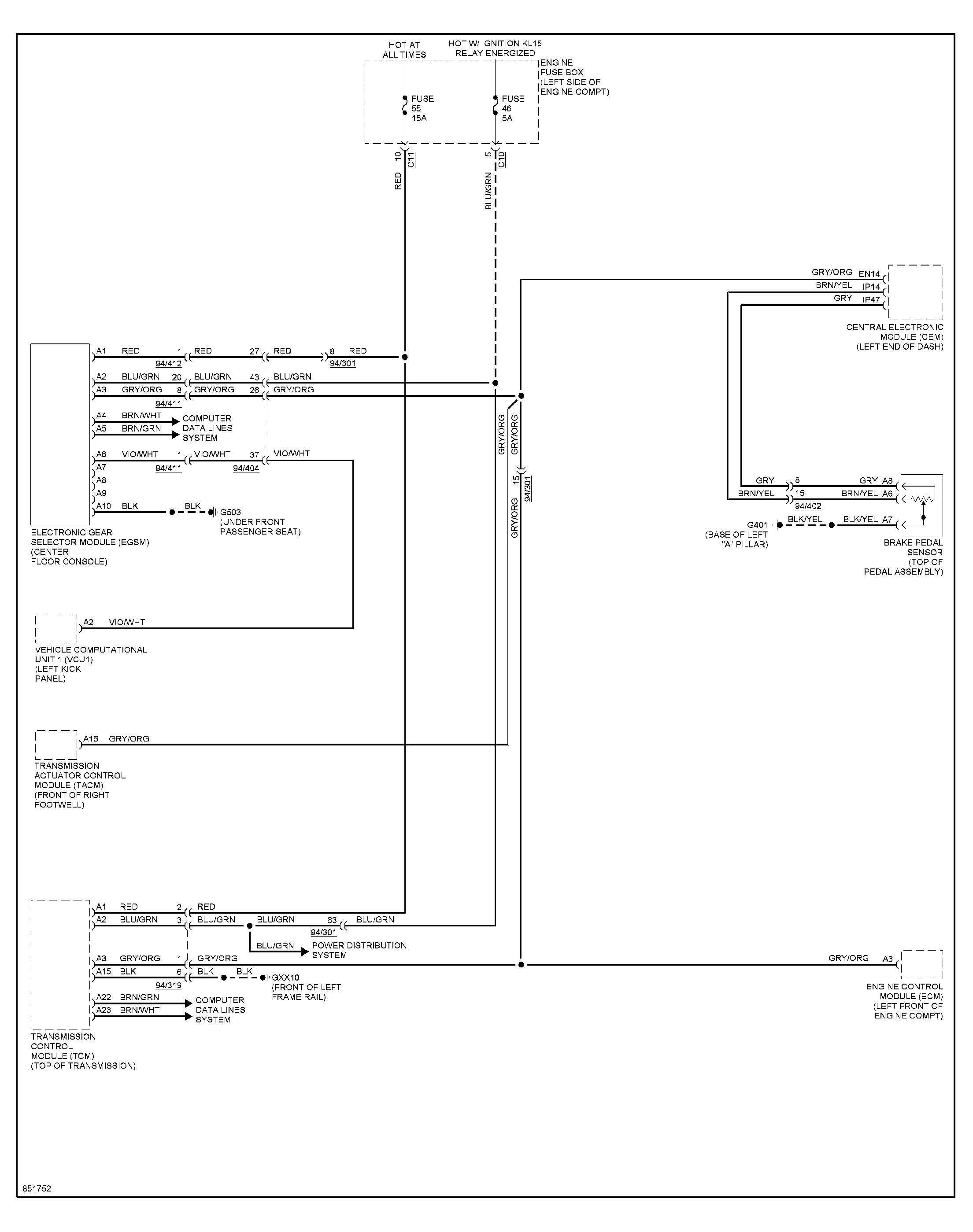

Fig 4: Shift Interlock Circuit, Hybrid
