Lambda Probe, Rear [2021, B420T]: Removal

See information about safety information fuel system. Refer to: [SAFETY INFORMATION FUEL SYSTEM]

Perform depressurizing fuel system. Refer to: [FUEL SYSTEM PRESSURE RELEASE]

Remove the air filter housing. Refer to: [AIR CLEANER HOUSING]

Courtesy of VOLVO CARS CORPORATION

Loosen the hose clamp.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

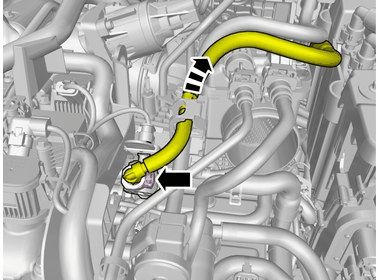

Release the lock.

Undo the hose from the connection.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

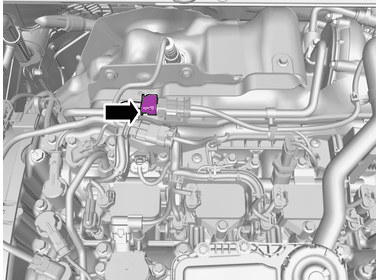

Disconnect the connector.

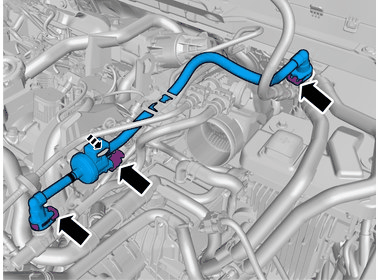

Release the locks.

Undo the hoses from the connections.

Loosen the clip.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

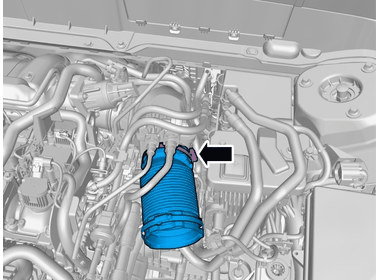

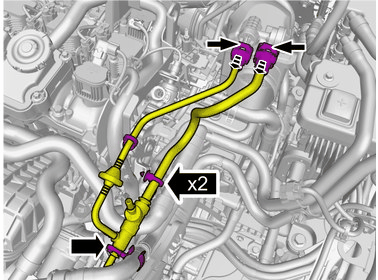

Release the locks.

Undo the hoses from the connections.

Loosen the clips.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

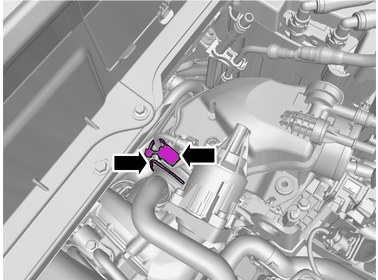

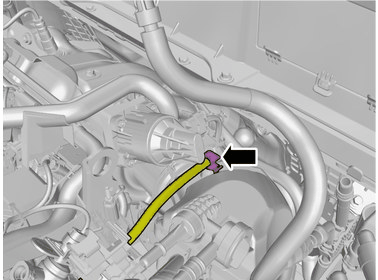

Release the locks.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

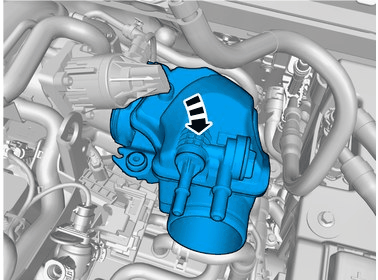

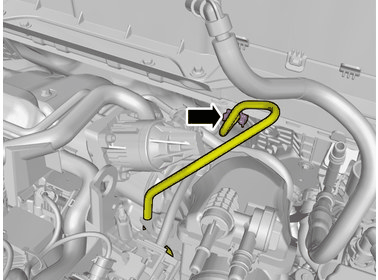

Depress the locking devices.

Undo the hose from the connection.

Courtesy of VOLVO CARS CORPORATION

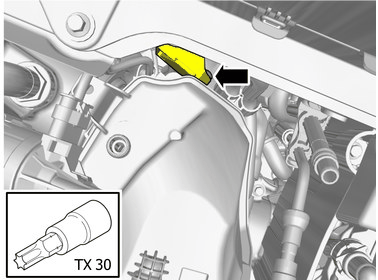

Remove the screw.

Torque:  M6, 10Nm

Loosen the clip.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

Unhook the cable harness clips.

Release the lock.

Courtesy of VOLVO CARS CORPORATION

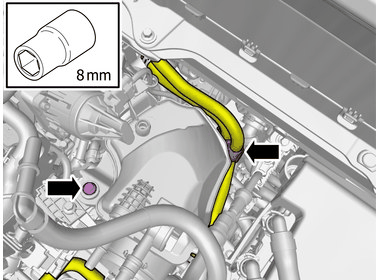

Remove the screw.

Fold marked part aside.

Courtesy of VOLVO CARS CORPORATION

HINT: It may be necessary to twist or turn the component.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

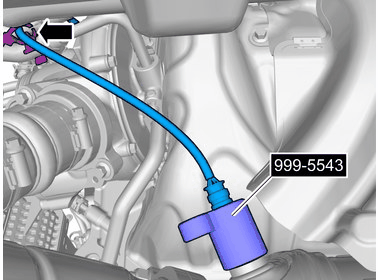

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

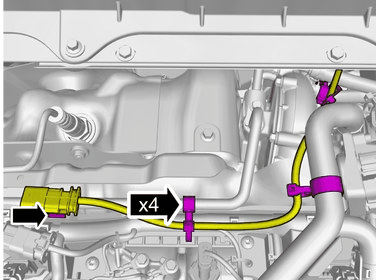

Remove the cable harness clips.

Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

Loosen the marked detail/details.

Special Tool: 999 5543 Socket NV-22

Torque:  Lambda probe, tightening, 45Nm
