Audio Module [2018-2022]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

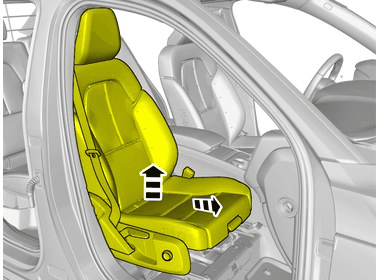

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

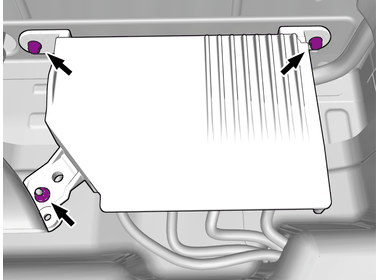

Remove the screws.

Torque: M6, 10Nm

Set the vehicle to Inactive mode, described in user mode. Refer to: USAGE MODE

Courtesy of VOLVO CARS CORPORATION

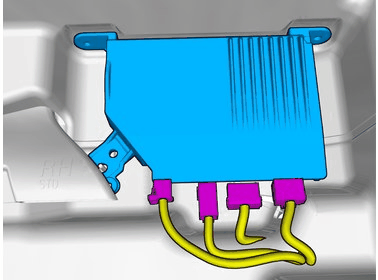

Disconnect the connectors.

Remove the marked part.
