Propeller Shaft: Components

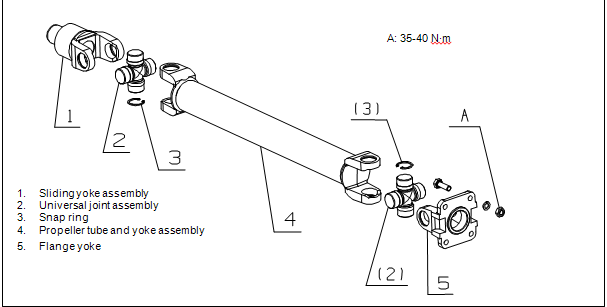

Fig 1: Exploded View Of Propeller Shaft With Torque Specifications
G00499386Courtesy of LIUZHOU WULING MOTORS CO., LTD.
