Removal & Installation (Legend)

  1. Remove the rear seats. See Fig 1. Remove the maintenance access cover.
  2. Disconnect the connector from the fuel pump. See Fig 2. Remove the fuel pump mounting nuts. Remove the fuel pump from the fuel tank.
  3. For installation, reverse removal procedure.

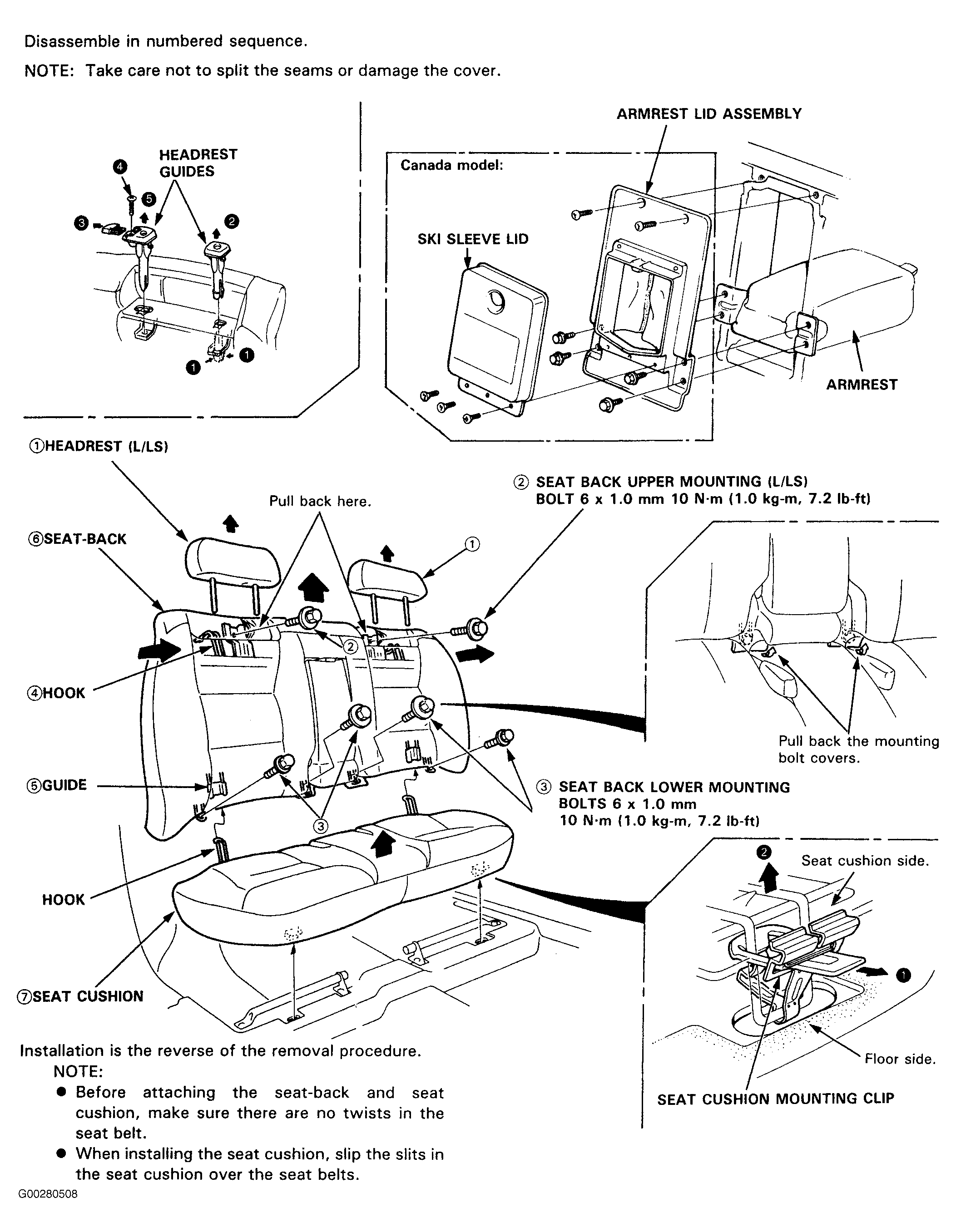

Fig 1: Removing Rear Seats (Legend)
G00280508Courtesy of AMERICAN HONDA MOTOR CO., INC.

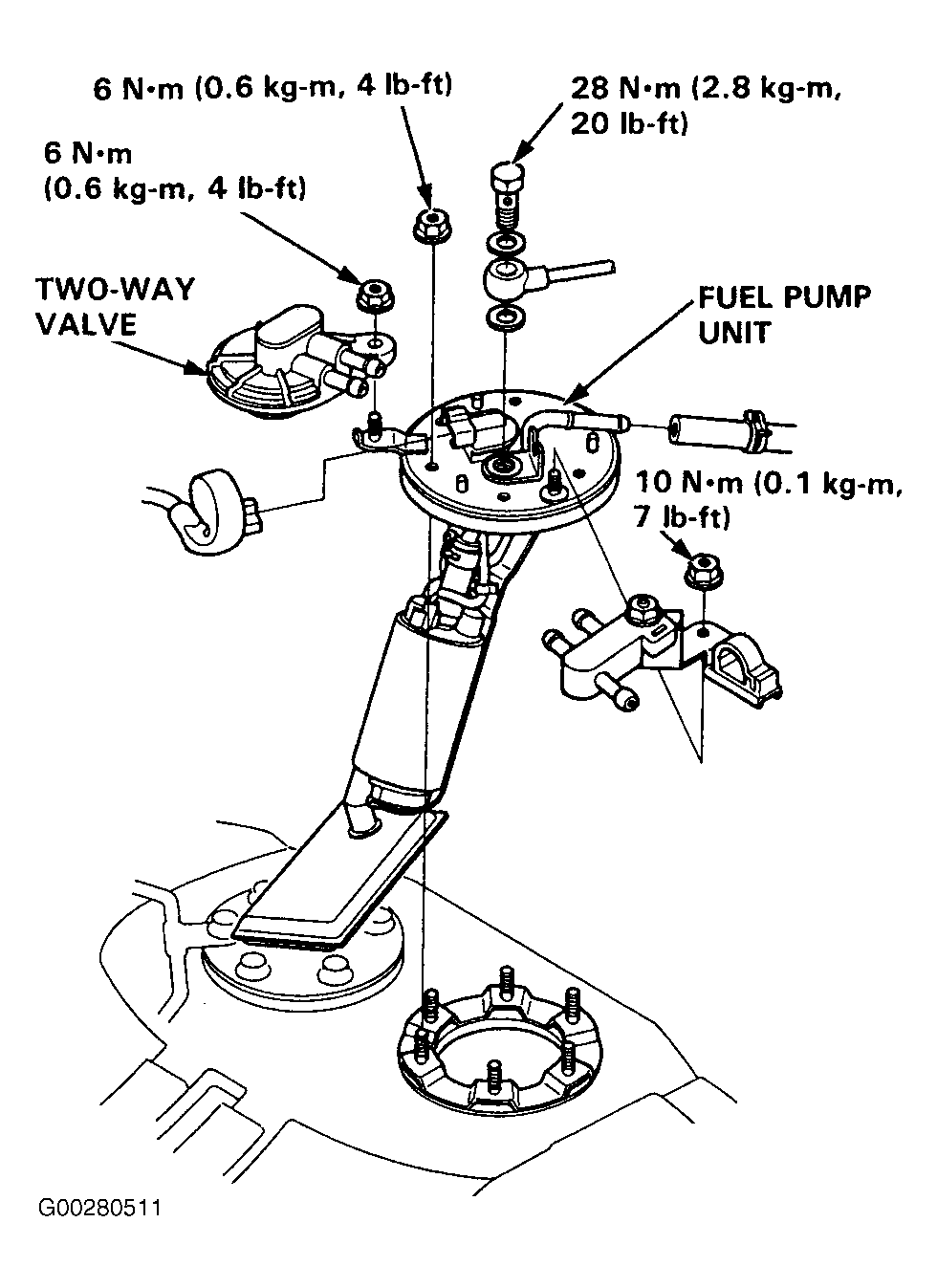

Fig 2: Removing Fuel Pump (Legend)
G00280511Courtesy of AMERICAN HONDA MOTOR CO., INC.
