Slide Motor

Remove seat. Remove seat cushion. Remove slide joint cable. See Fig 1 . Disconnect wiring connectors. Remove slide motor retaining nuts and bolts. Remove slide motor. To install, reverse removal procedure. When installing slide motor, apply grease to slide lead screw.

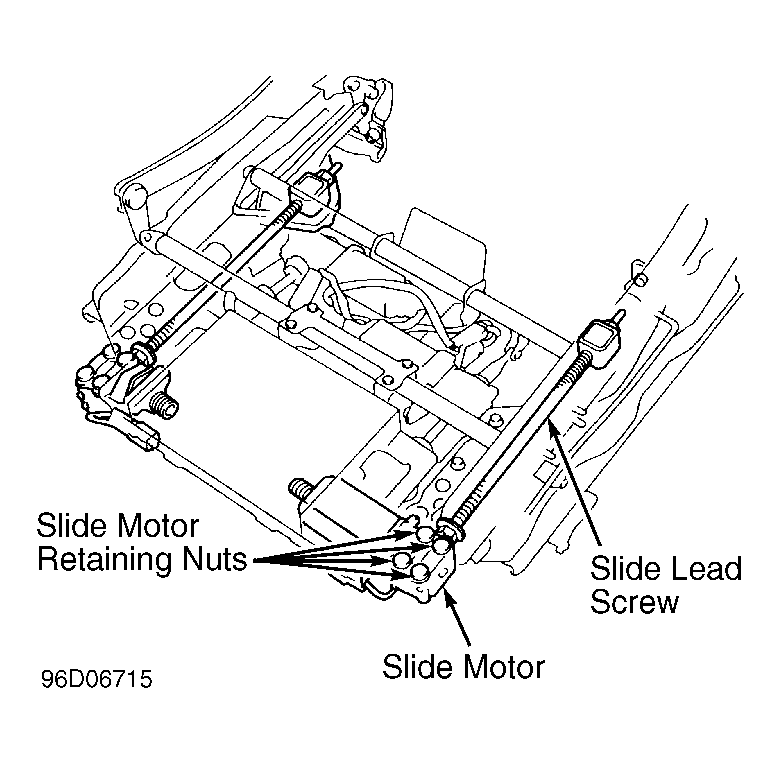

Fig 1: Removing Power Seat Slide Motor

Courtesy of AMERICAN HONDA MOTOR CO., INC.
