Engine Control Module (ECM)

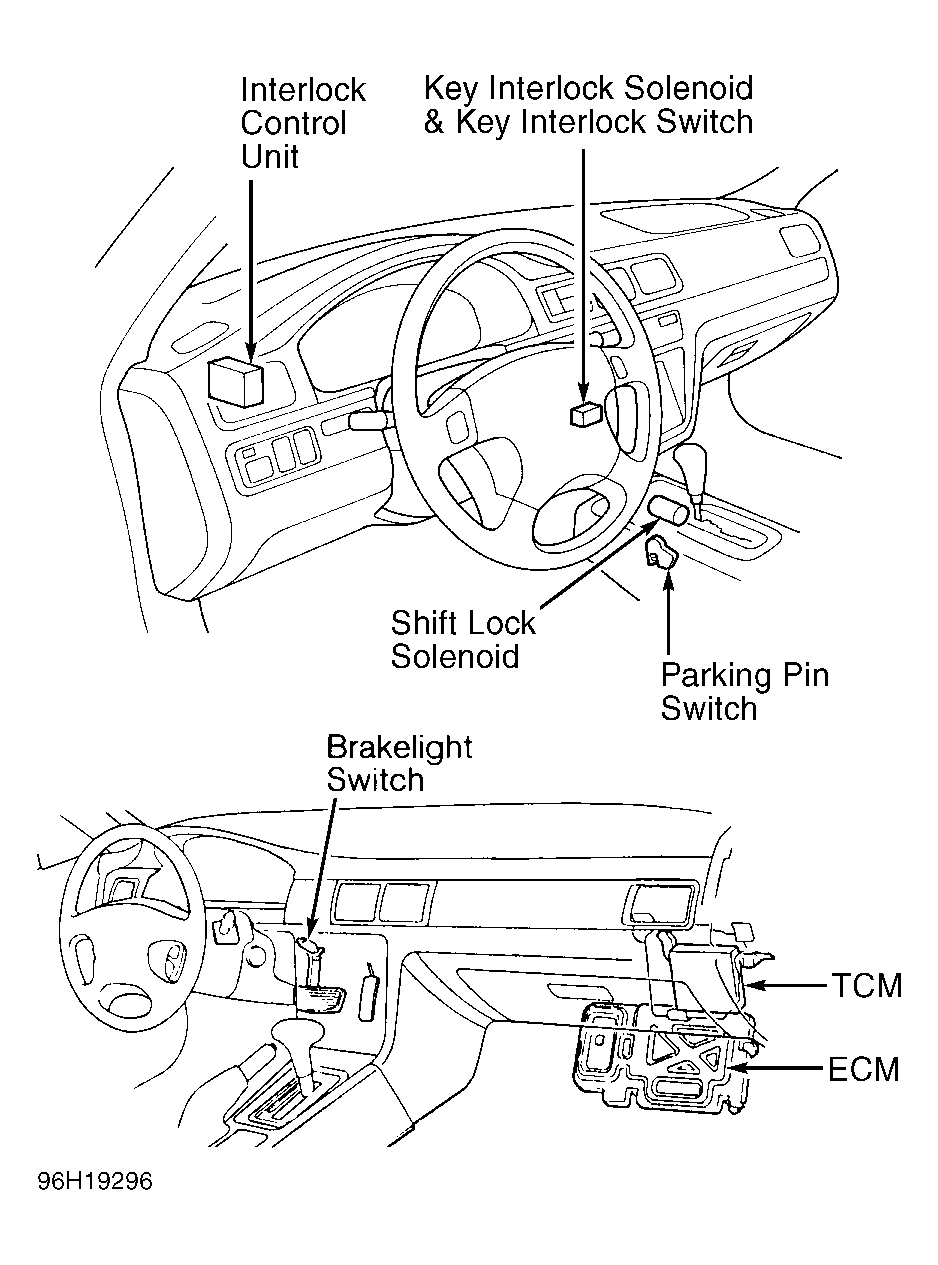

An upshift and downshift comparative signal and shift acknowledge signal is delivered between ECM and TCM. A 5-volt reference signal is delivered between ECM and TCM. The ECM is located below carpet on passenger's side, near the kick panel. See Figure.
