Wiper/Washer System

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 2005 Acura NSX, 2004 Acura NSX, 2003 Acura NSX-T, 2003 Acura NSX, and 2002 Acura NSX-T. However, it is still accessible from the selected car via links, so may be relevant.

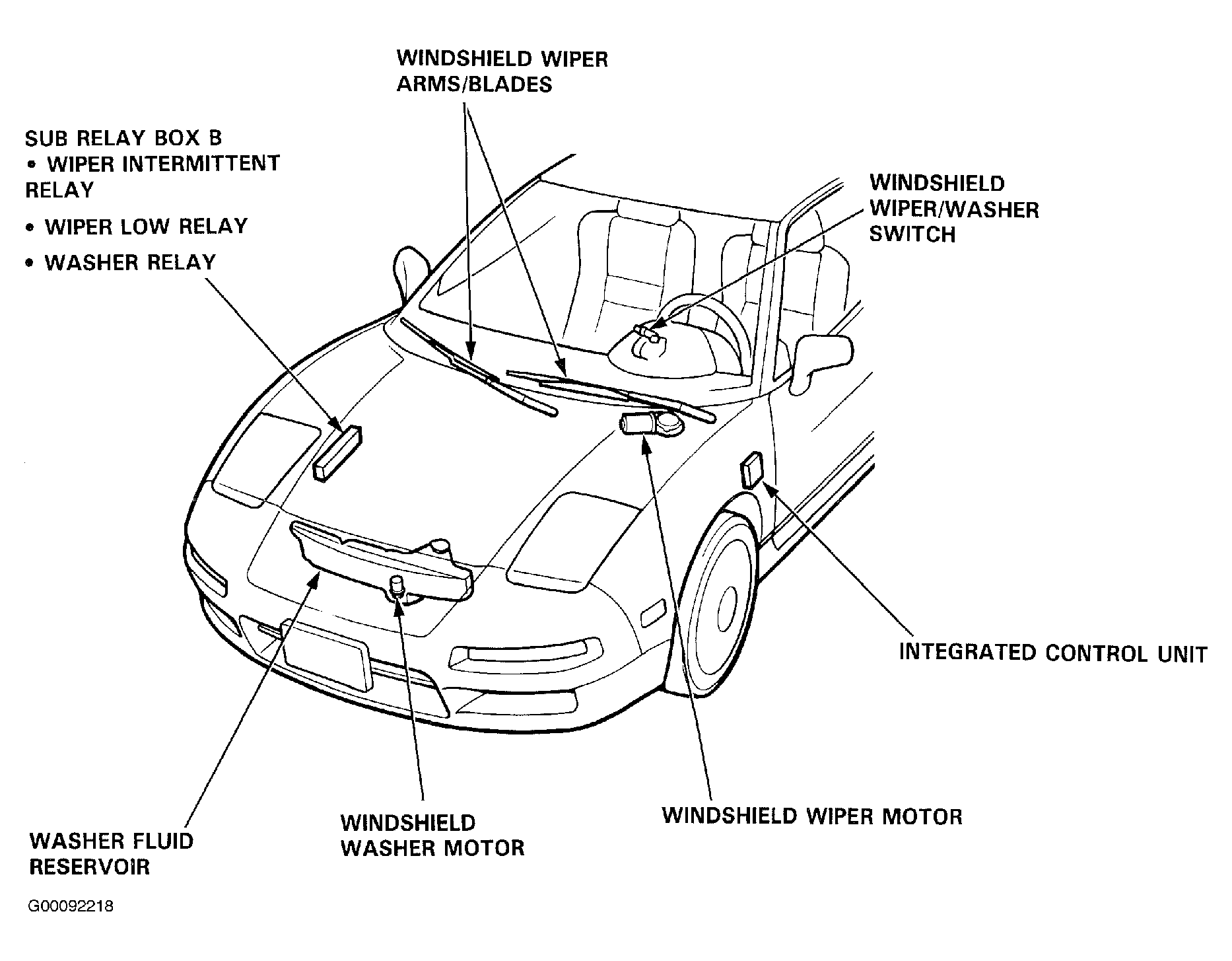

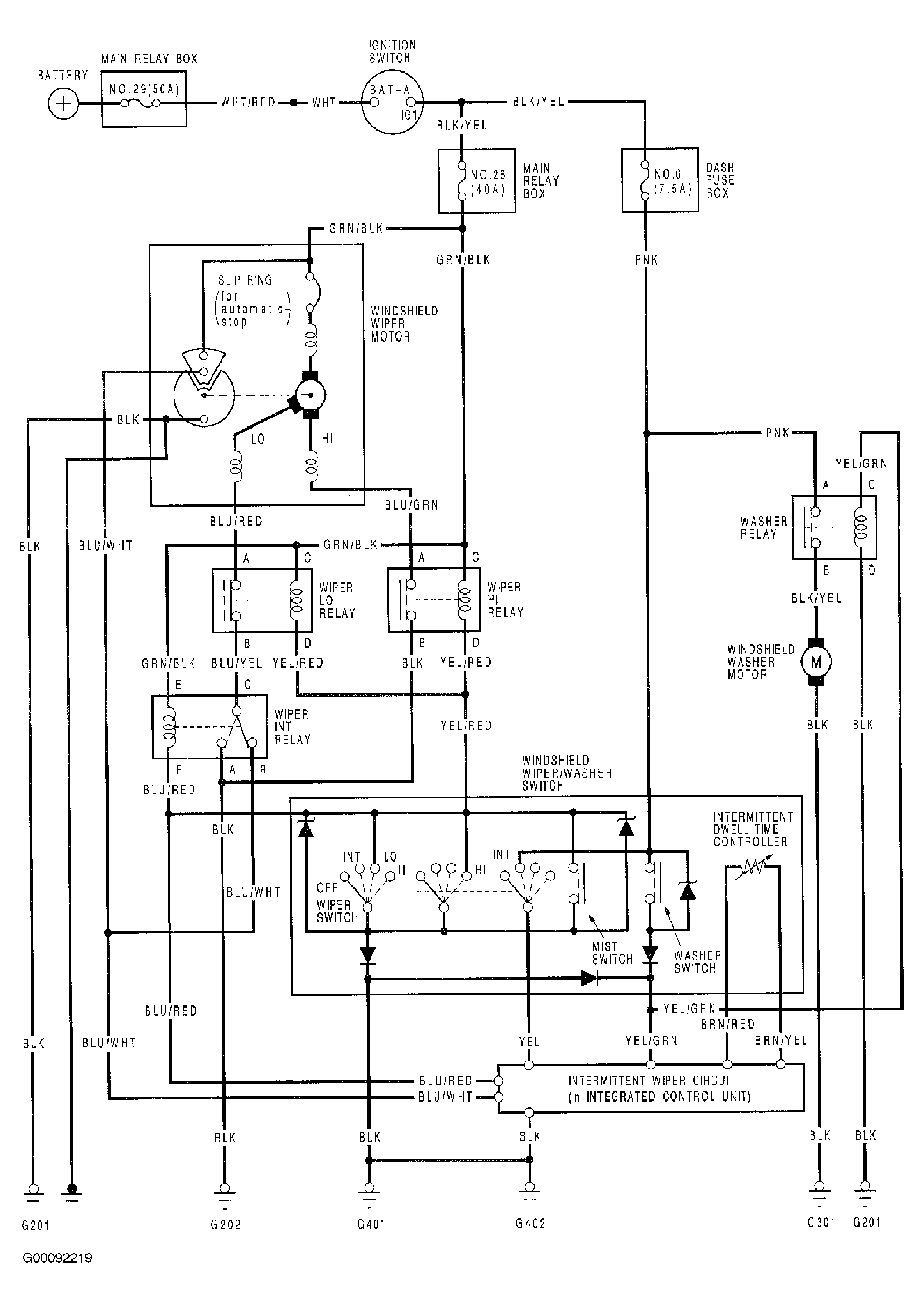

For wiper/washer component location and circuit diagram, see Figure and Figure . To diagnose wiper/washer intermittent fault, follow diagnostic flow chart. See Fig 1 . For more information on wiper/washer systems, see WIPER/WASHER SYSTEMS -- NSX article in ACCESSORIES & EQUIPMENT.

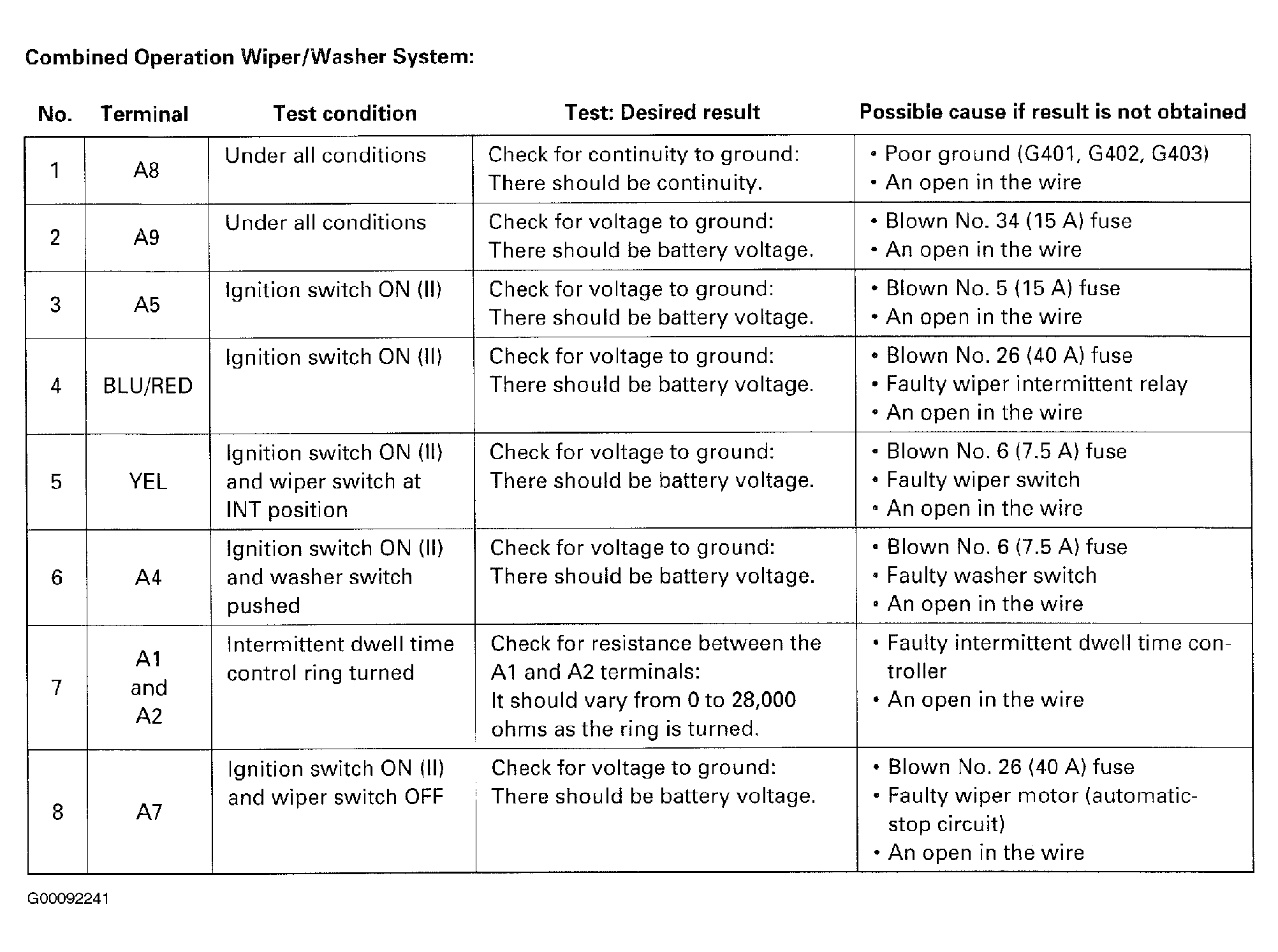

Fig 1: Combined Operation Wiper/Washer System Input Test
G00092241Courtesy of AMERICAN HONDA MOTOR CO., INC.
