Engine Control Module (ECM)

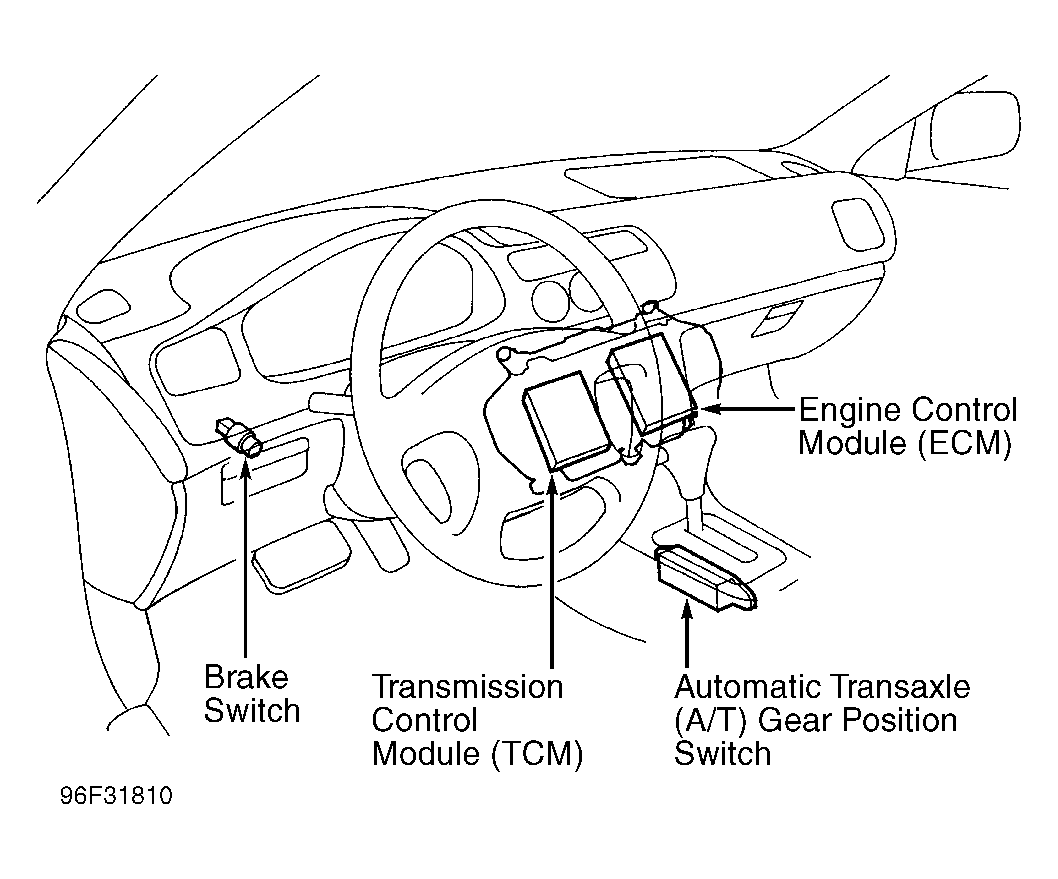

Upshift, downshift and shift acknowledgment signals are delivered between the ECM and TCM. A 5-volt reference signal is present between ECM and TCM. The ECM is located behind center of instrument panel in center console. See Figure .
