Set/Resume Switch

NOTE: This test procedure also tests cable reel in steering column.
  1. Disable air bag system. See appropriate AIR BAG RESTRAINT SYSTEMS article. Remove instrument panel lower cover and knee bolster. Locate cable reel Gray 3-pin connector under steering column, next to SIR Yellow 6-pin connector. Depress SET button to ON position. Check for continuity between cable reel Gray 3-pin connector terminal No. 1 (Light Green/Red wire) and terminal No. 2 (Light Green/Black wire). If continuity exists, go to next step. If continuity does not exist, go to step  3 .
  2. Depress RESUME button to ON position. Check for continuity between cable reel Gray 3-pin connector terminal No. 2 (Light Green/Black wire) and terminal No. 3 (Blue/Green wire). If continuity exists, switch and cable reel are okay. If continuity does not exist, go to next step.
  3. Remove SET/RESUME switch from steering wheel. See SET/RESUME SWITCH  under REMOVAL & INSTALLATION. Depress SET button. Check for continuity between switch terminals No. 1 and 3. See Fig 1 . Depress RESUME button. Check for continuity between switch terminals No. 1 and 2. If continuity exists at both switch positions, replace cable reel. See appropriate AIR BAG RESTRAINT SYSTEMS article. If continuity does not exist, replace SET/RESUME switch. See SET/RESUME SWITCH  under REMOVAL & INSTALLATION.

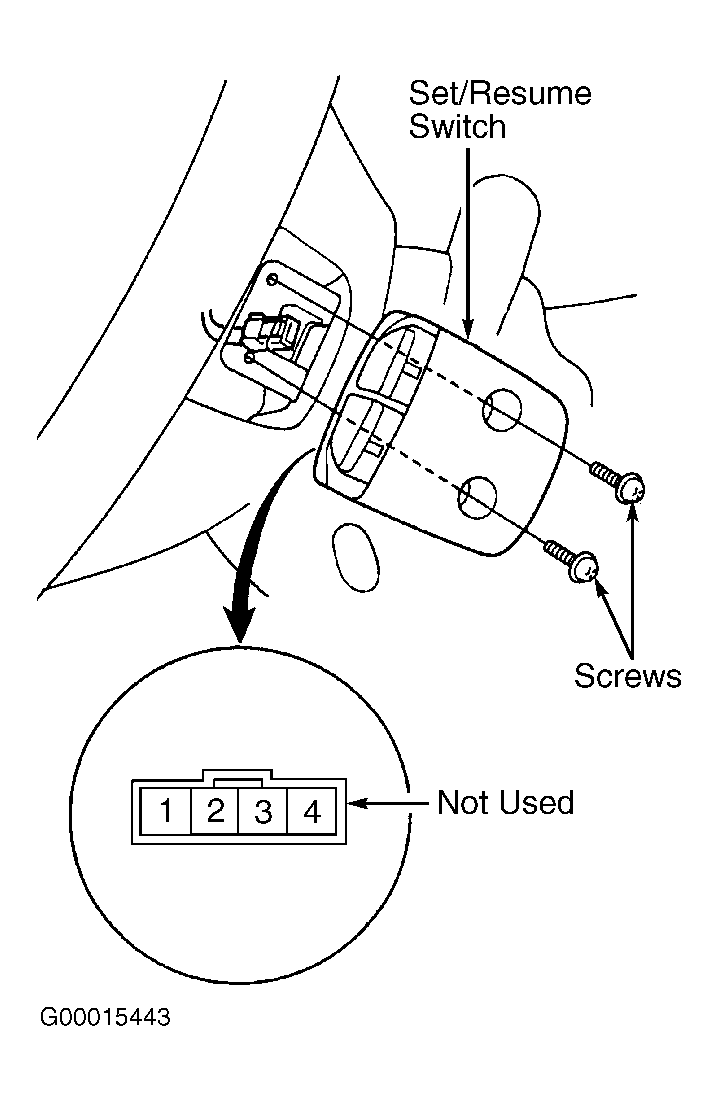

Fig 1: Identifying SET/RESUME Switch Connector Terminals
G00015443Courtesy of AMERICAN HONDA MOTOR CO., INC.
