Washer Level Switch

NOTE: Not all vehicles are equipped with this switch. Fluid may come out of opening when testing.

Turn ignition switch to OFF position. Remove right front inner fender panel to access pump. Disconnect washer level switch 2-pin connector. See Fig 1 . Using DVOM, check for continuity between washer level switch terminals. Continuity should exist with float down, and should not exist with float up. Replace washer level switch if continuity is not as specified.

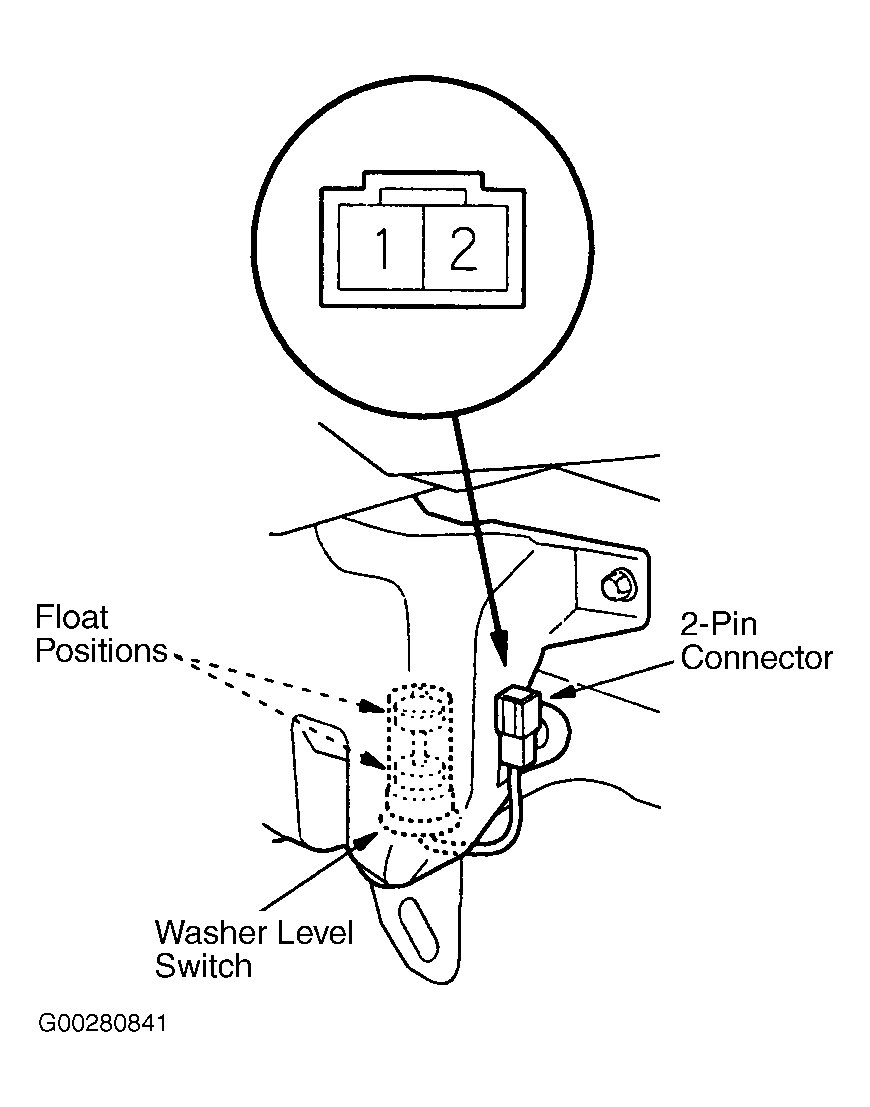

Fig 1: Identifying Washer Fluid Level Switch Assembly

Courtesy of AMERICAN HONDA MOTOR CO., INC.
