Removal & Installation (3.5RL)

Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE . Remove rear seat cushion. Remove access floor panel. See Fig 5. Disconnect fuel tank unit harness connector and fuel lines. Remove fuel tank unit mounting nuts. Remove fuel pump unit. To install, reverse removal procedure. Install NEW base gasket under tank unit.

Fig 1: Identifying Fuel Pump Access Location (MDX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

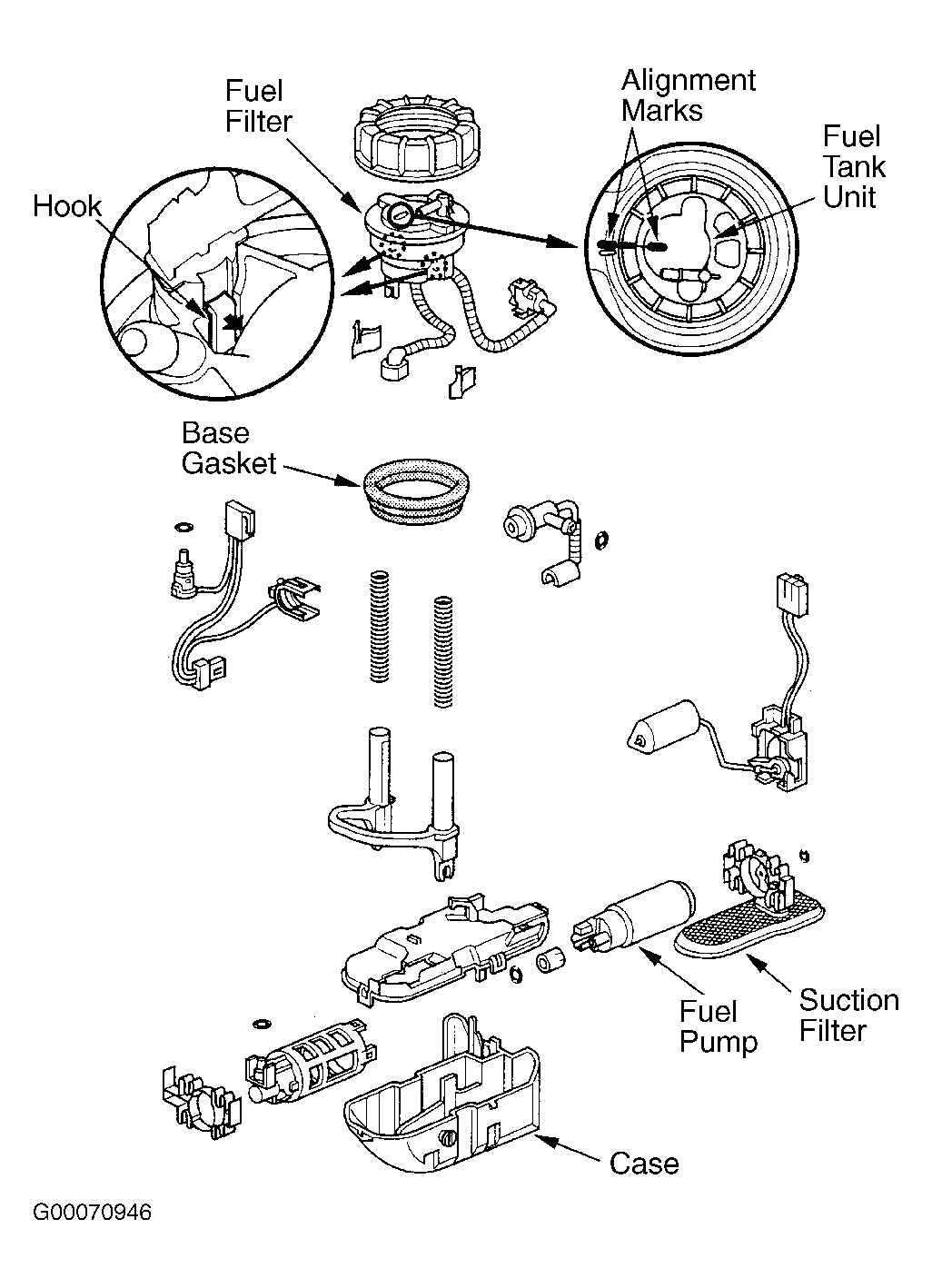

Fig 2: Identifying Fuel Filter & Pump (MDX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

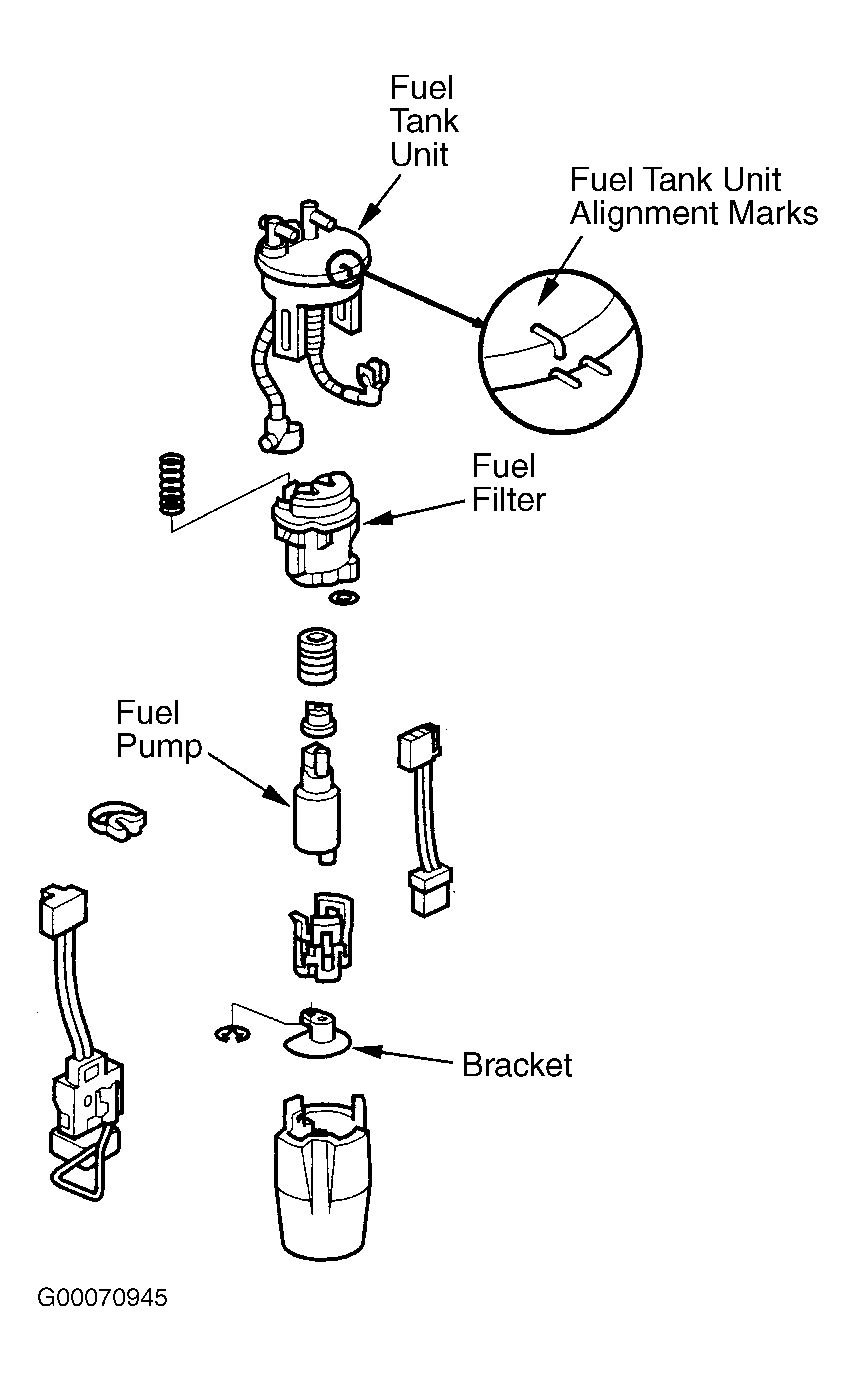

Fig 3: Identifying Fuel Filter & Pump (RSX)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

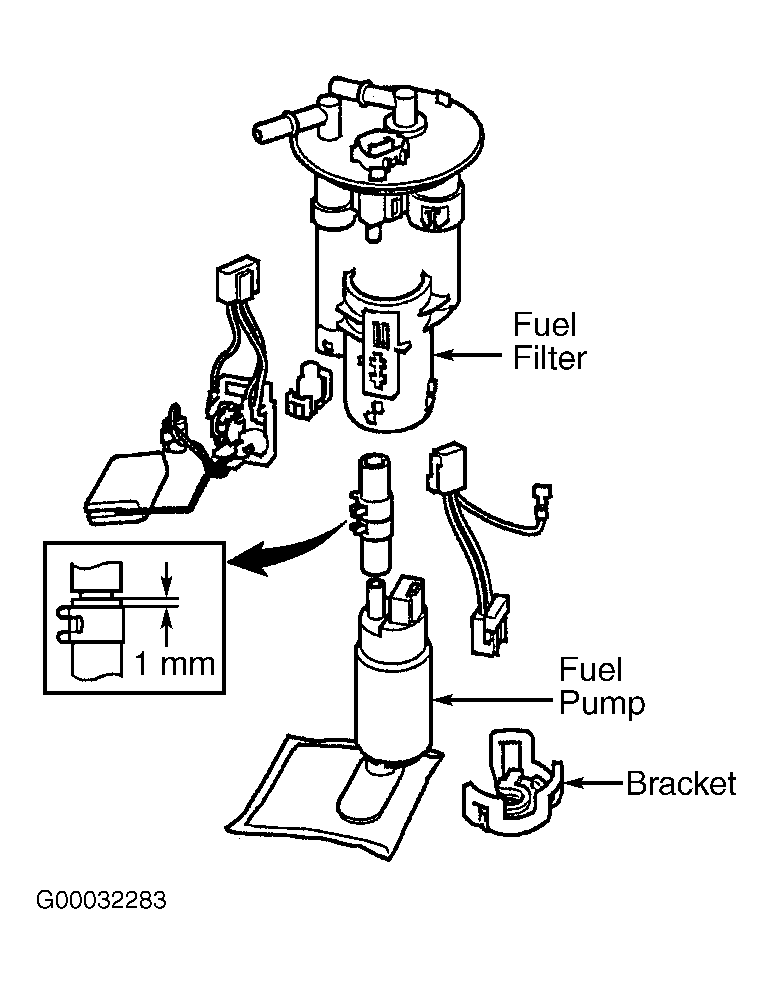

Fig 4: Identifying Fuel Filter & Fuel Pump (3.2CL & 3.2TL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

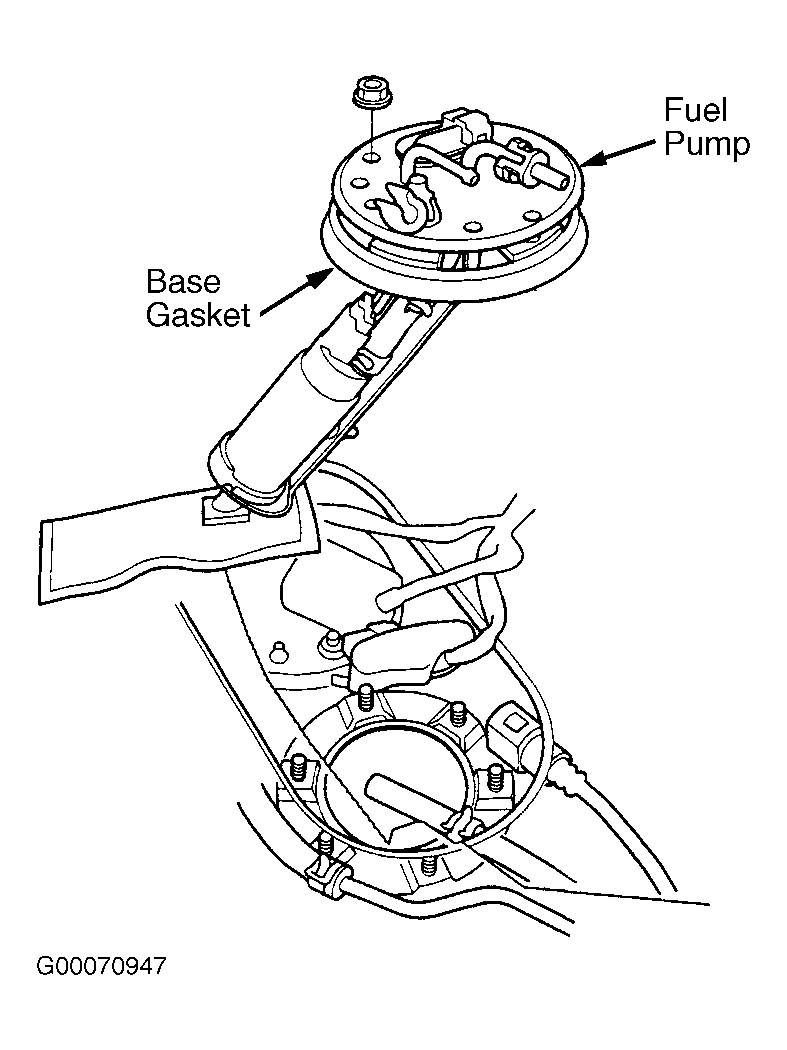

Fig 5: Identifying Fuel Pump (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

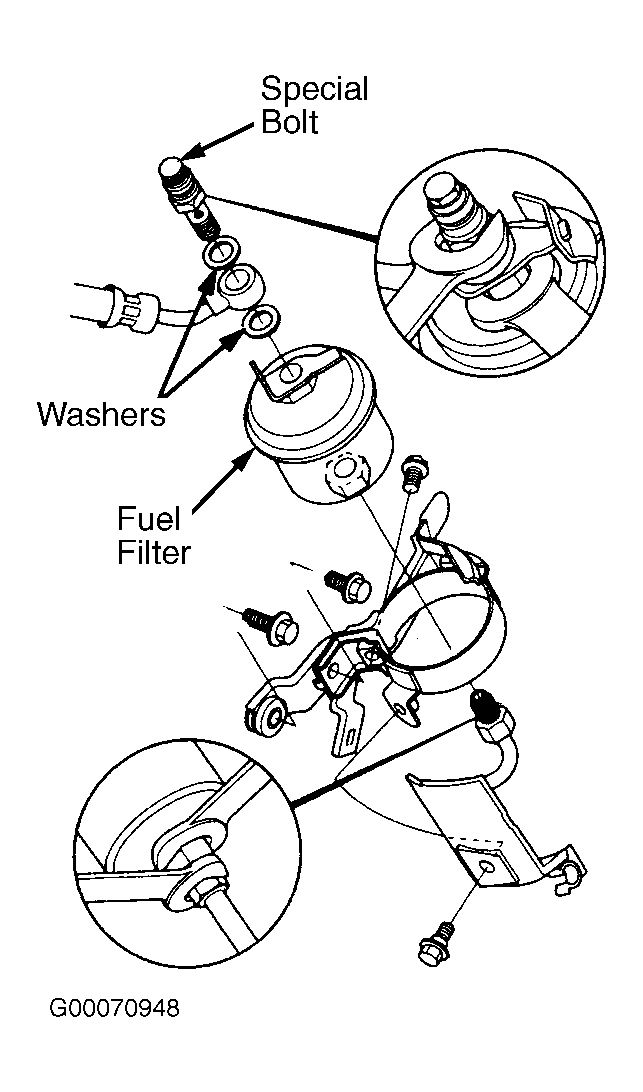

Fig 6: Identifying Fuel Filter (3.5RL)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
