VSA Modulator Fluid
WARNING: This page is about a different variant/trim than selected.

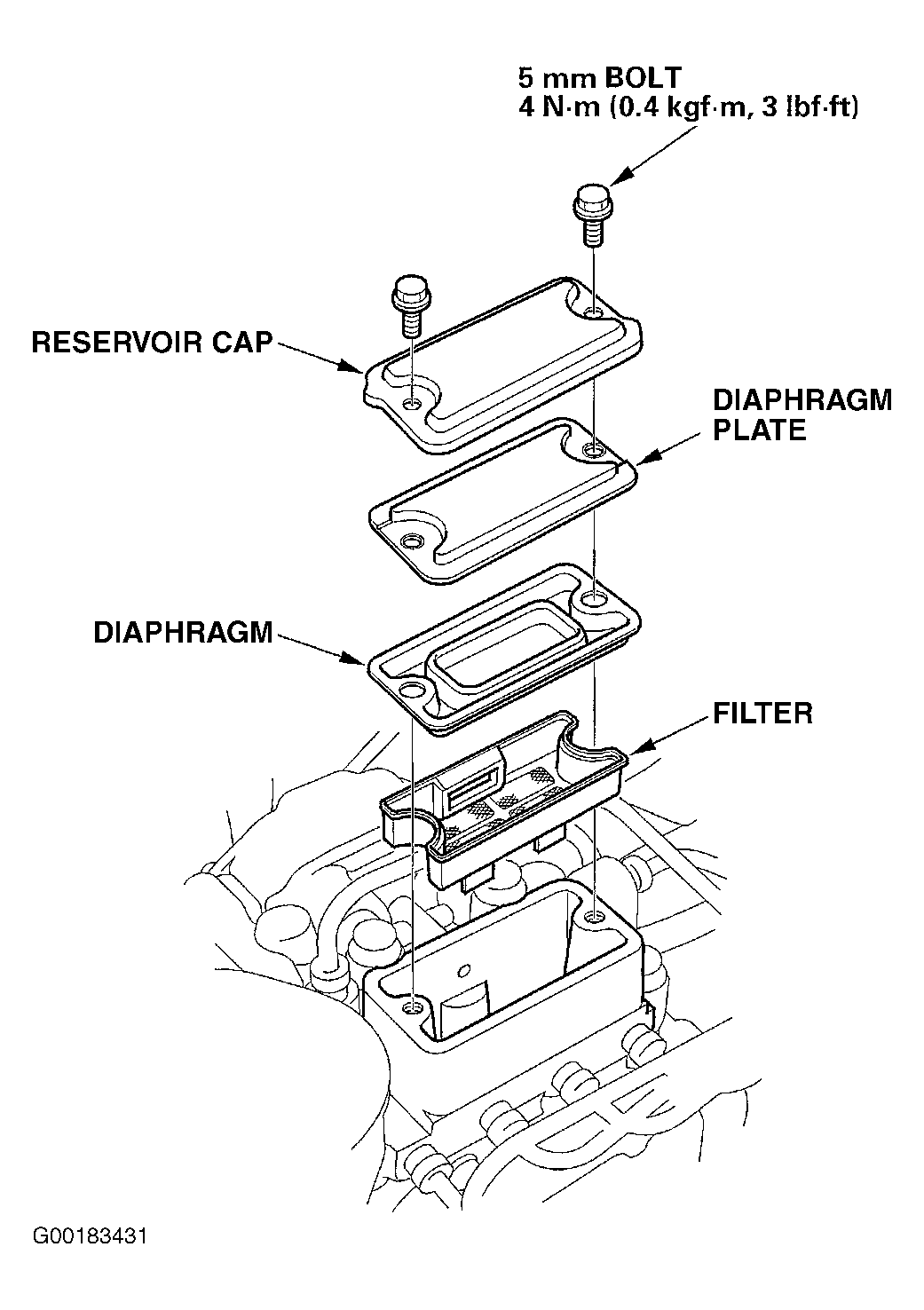

- Clean around the modulator unit. Remove the reservoir cap, diaphragm plate filter, and diaphragm. See Fig 1 .
- Clean the filter. Remove the brake fluid from the VSA reservoir.
- Install in reverse order of removal and hand tighten the bolts. Operate the pump motor by driving the vehicle at 6 MPH or more. Repeat all steps and test drive the vehicle at 18 MPH or more for a few seconds, and check that the ABS indicator and VSA indicator do not come on. Tighten the VSA reservoir cap bolts to the specified torque. See TORQUE SPECIFICATIONS .
NOTE:
Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid gets on paint, wash off with water immediately. Install the filter. Fill the VSA reservoir with brake fluid until it reaches the upper line of filter.
