Component Locations
NOTE:
See
Fig 1
for component locations.

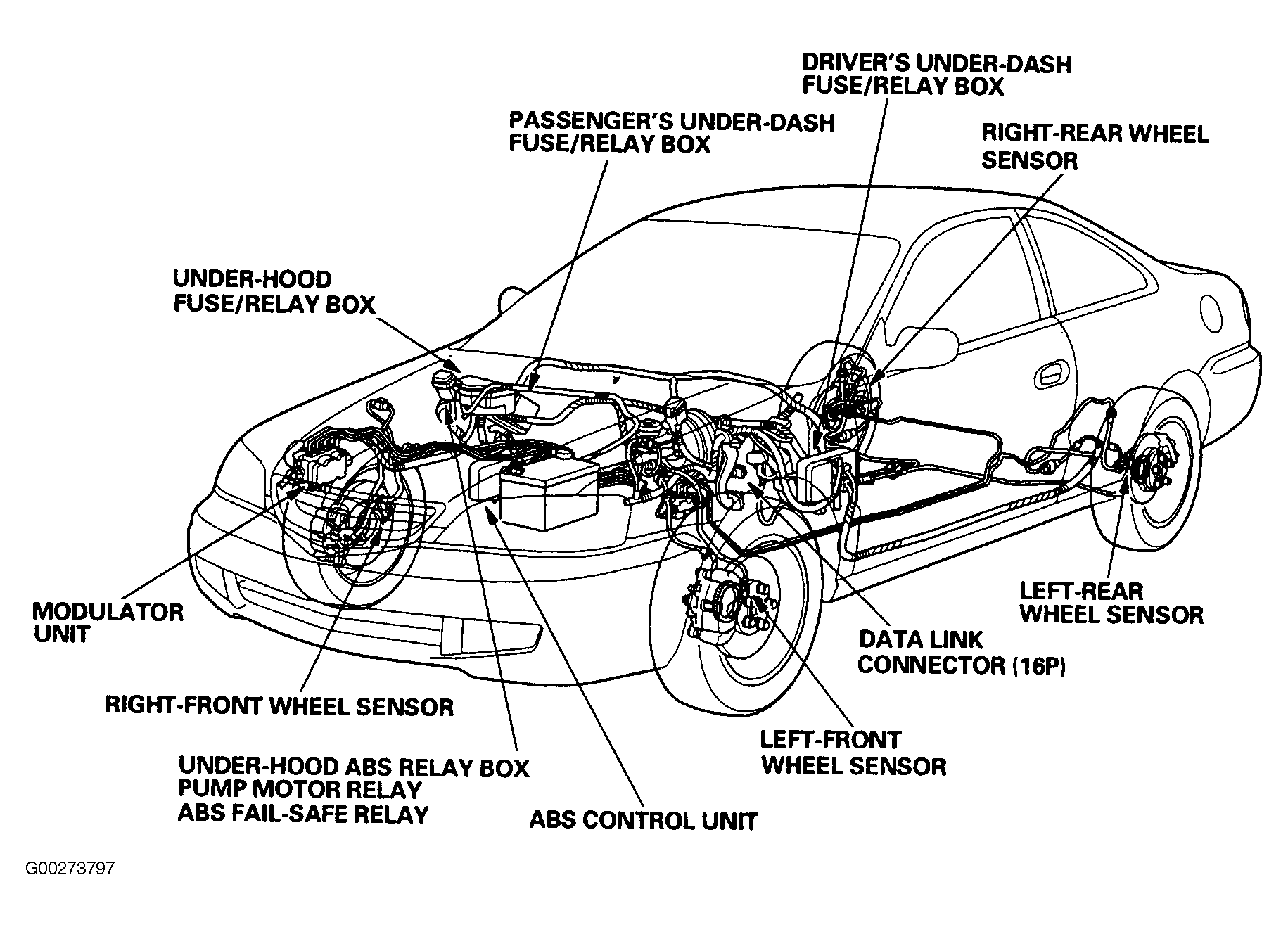

Fig 1: Locating ABS Components
Courtesy of AMERICAN HONDA MOTOR CO., INC.
