Control Unit Input

  1. Disable air bag system. Remove instrument panel lower left cover. Remove left knee bolster. Cruise control unit is located near left kick panel. See Fig 1 .
  2. Disconnect cruise control unit 14-pin connector. Ensure connector and terminals are okay. Repair as necessary and retest system. If connector and terminals are okay, use a DVOM to perform cruise control unit input tests. See Fig 2 . If an input test indicates a problem, find and correct cause and retest system. If all input test results are okay, replace cruise control unit.

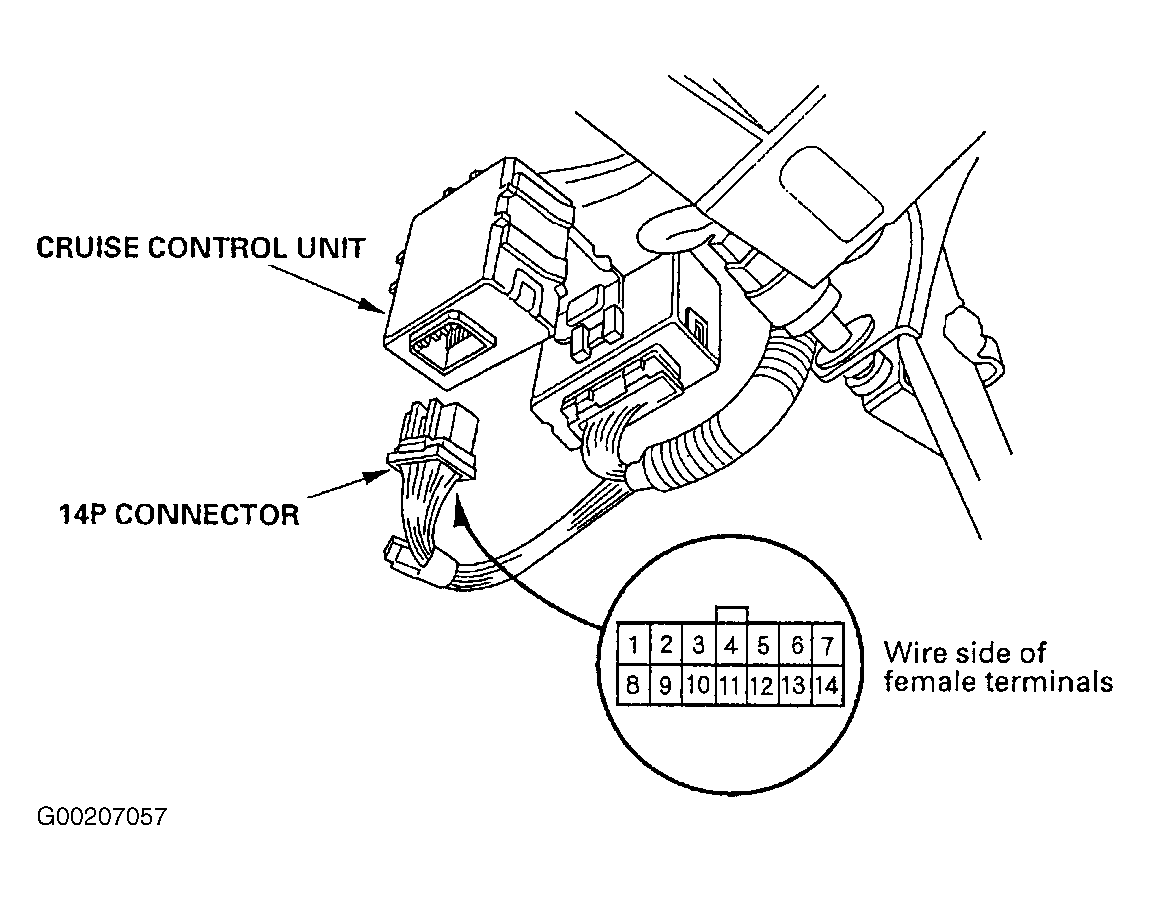

Fig 1: Cruise Control Unit Input Test (1 Of 2)
G00207057Courtesy of AMERICAN HONDA MOTOR CO., INC.

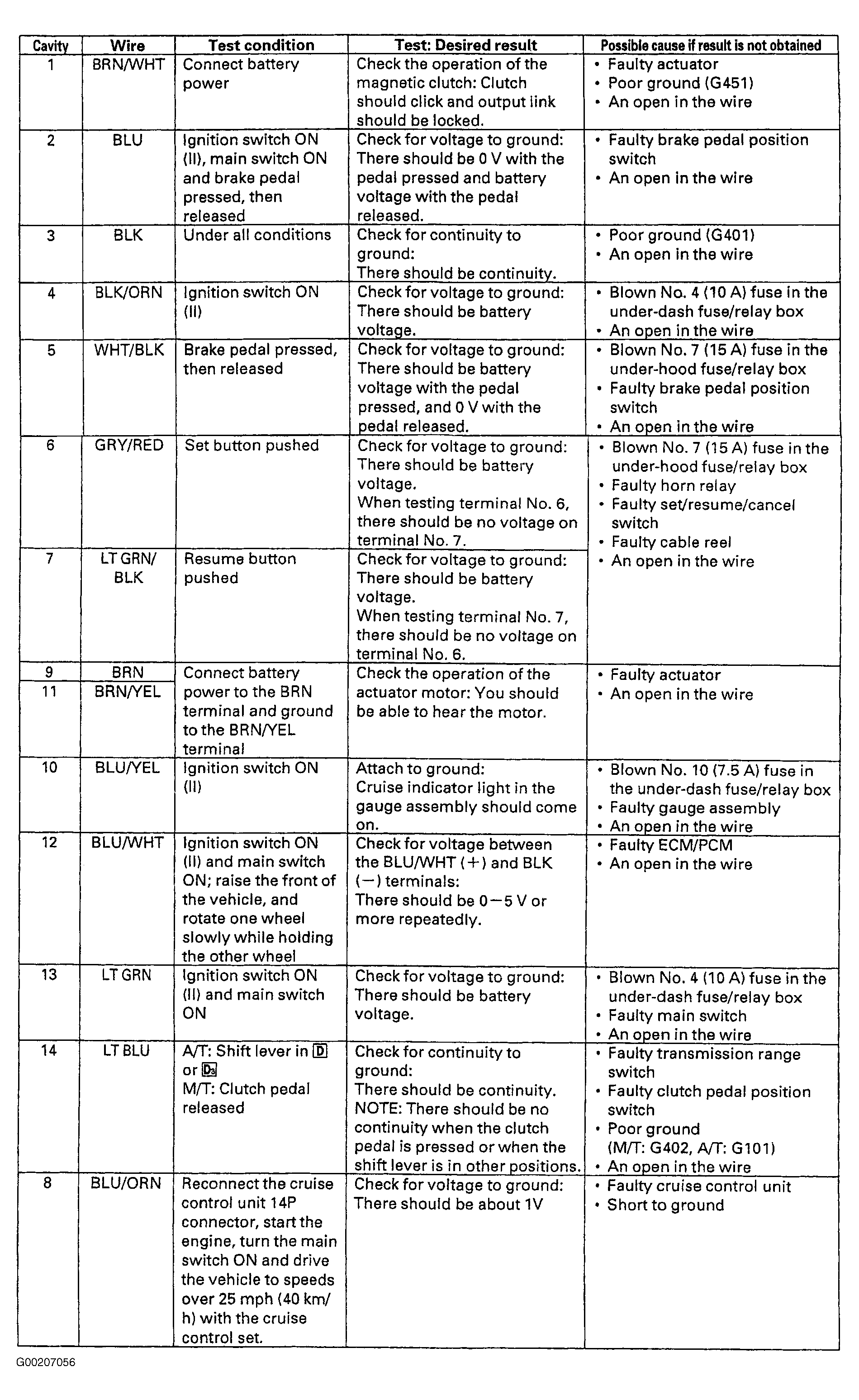

Fig 2: Cruise Control Unit Input Continuity (2 Of 2)
G00207056Courtesy of AMERICAN HONDA MOTOR CO., INC.
