Dashboard Replacement
WARNING: This page is about a different car, the 2011 Acura TL, 2010 Acura TL, and 2009 Acura TL. However, it is still accessible from the selected car via links, so may be relevant.
Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the Acura Tool and Equipment Program, call 888-424-6857
SRS components are located in this area Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service
NOTE:
- Put on gloves to protect your hands
- Have an assistant help you when removing and installing the dashboard
- Take care not to scratch the dashboard, the body or the other related parts
- Take care not to bend the brackets
- Use the appropriate tool from the KTC trim tool set to avoid damage when removing components
- Do the battery terminal disconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION ), then wait at least 3 minutes before beginning work
- Remove these items from the dashboard area
- A-pillar trim, both sides (see TRIM REMOVAL/INSTALLATION - PILLAR AREAS )
- Instrument fascia (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION )
- Driver's switch panel (see DRIVER'S SWITCH PANEL REMOVAL/INSTALLATION )
- Driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION )
- Hood release handle (see HOOD RELEASE HANDLE REPLACEMENT )
- Dashboard center vent (see DASHBOARD CENTER VENT REMOVAL/INSTALLATION )
- Center console (see CENTER CONSOLE REMOVAL/INSTALLATION )
- Glove box (see GLOVE BOX REMOVAL/INSTALLATION )
- Driver's side vent (see DRIVER'S SIDE VENT REMOVAL/INSTALLATION )
- Passenger's side vent (see DRIVER'S SIDE VENT REMOVAL/INSTALLATION )
- Side defogger vent trim, both sides (see SIDE DEFOGGER VENT TRIM REMOVAL/INSTALLATION )
- Gauge control module (see GAUGE CONTROL MODULE REPLACEMENT )
- Center speaker (see USB ADAPTER UNIT REPLACEMENT )
- With navigation system Navigation display unit (see NAVIGATION DISPLAY UNIT REMOVAL/INSTALLATION )
- Without navigation system Audio-HVAC display unit (see AUDIO-HVAC DISPLAY UNIT REMOVAL/INSTALLATION )
- With navigation system Audio-Navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION )
- Without navigation system Audio unit (see AUDIO UNIT REMOVAL/INSTALLATION )
- Steering column (see STEERING COLUMN REMOVAL AND INSTALLATION )
- Humidity/In-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT )
- Sunlight sensor (see SUNLIGHT SENSOR TEST )
- With navigation system GPS antenna (see GPS ANTENNA REMOVAL/INSTALLATION )
- Passenger's airbag (see FRONT PASSENGER'S AIRBAG REPLACEMENT )
- With keyless access system Front interior LF antenna (see FRONT INTERIOR LF ANTENNA REPLACEMENT )
- With keyless access system Remote slot (see REMOTE SLOT CONTROL UNIT )
Driver's side
- Remove the harness clip (A) from between the A-pillar (B) and the dashboard (C)
Center

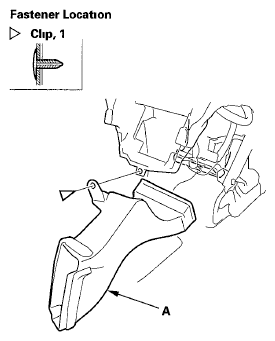

- Remove the clip, then remove the center joint duct (A)

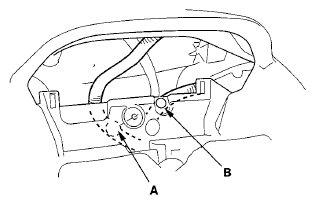

- Release the harness clips (A, B) from below the display unit opening
Passenger's side
- Remove the harness clip (A) from between the A-pillar (B) and the dashboard (C)

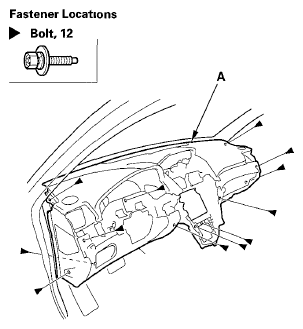

- Remove the bolts securing the dashboard (A)
Bolt specification: 5 x 0.8 mm, 5 N.m (0.5 kgf.m, 4 lbf.ft)

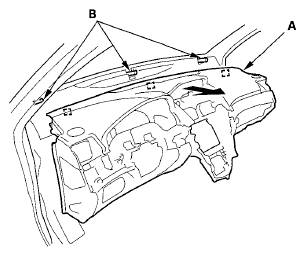

- Lift up on the dashboard (A) to release it from the guide pins (B), then carefully remove the dashboard through the front door openingNOTE: Lay the dashboard on its front or back Do not rest it on the lower console opening or you may damage it
- Install the dashboard in the reverse order of removal, and note these items
- Make sure the dashboard fits onto the guide pins correctly
- Make sure the wire harnesses are not pinched before tightening the bolts
- Make sure the connectors are plugged in properly
- Do the battery terminal reconnection procedure (see BATTERY TERMINAL DISCONNECTION AND RECONNECTION )
- Check for any DTCs that may have been set during repairs, and clear them
