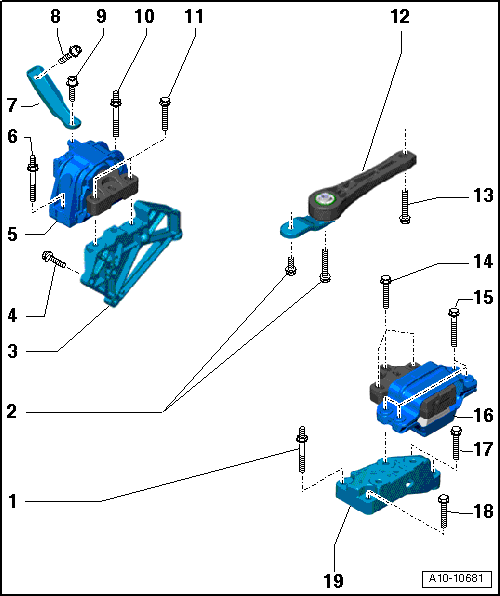

SUBFRAME Mount Overview: Notes
- Bolt
- Replace
- 40 Nm plus an additional 90°
- Transmission support to transmission
- Bolts
- Replace
- 40 Nm plus an additional 90°
- Pendulum support to transmission
- Engine Support
- With support arm
- Bolt
- Engine support to engine
- Tightening specification, refer to SPECIFICATIONS or to SPECIFICATIONS
- Engine Mount
- Bolt
- Engine mount to body
- Tightening specification, refer to SPECIFICATIONS or to SPECIFICATIONS
- Connecting Bar
- Bolt
- Connecting bar to engine
- Tightening specification, refer to SPECIFICATIONS or to SPECIFICATIONS
- Bolt
- Connecting bar to body
- Tightening specification, refer to SPECIFICATIONS or to SPECIFICATIONS
- Bolt
- Engine mount to body
- Tightening specification, refer to SPECIFICATIONS or to SPECIFICATIONS
- Bolts
- Engine mount to engine support
- Tightening specification, refer to SPECIFICATIONS or to SPECIFICATIONS
- Pendulum Support
- Refer to PENDULUM SUPPORT
- Bolt
- Replace
- 100 Nm plus an additional 90°
- Pendulum support to subframe
- Bolt
- Replace
- 60 Nm plus an additional 90°
- Transmission mount to transmission support
- Bolt
- Replace
- 40 Nm plus an additional 90°
- Transmission mount to body
- Transmission Mount
- With support arm
- TRANSMISSION MOUNTING AND TRANSMISSION SUPPORT
- Tightening sequence TRANSMISSION SIDE SUBFRAME MOUNT TIGHTENING SEQUENCE
- Bolt
- Replace
- 40 Nm plus an additional 90°
- Transmission support to transmission
- Bolt
- Replace
- 40 Nm plus an additional 90°
- Transmission support to transmission
- Final Drive Support
Refer to TRANSMISSION MOUNTING AND TRANSMISSION SUPPORT
- Tightening sequence TRANSMISSION SIDE SUBFRAME MOUNT TIGHTENING SEQUENCE
