Wiring Diagrams: 850

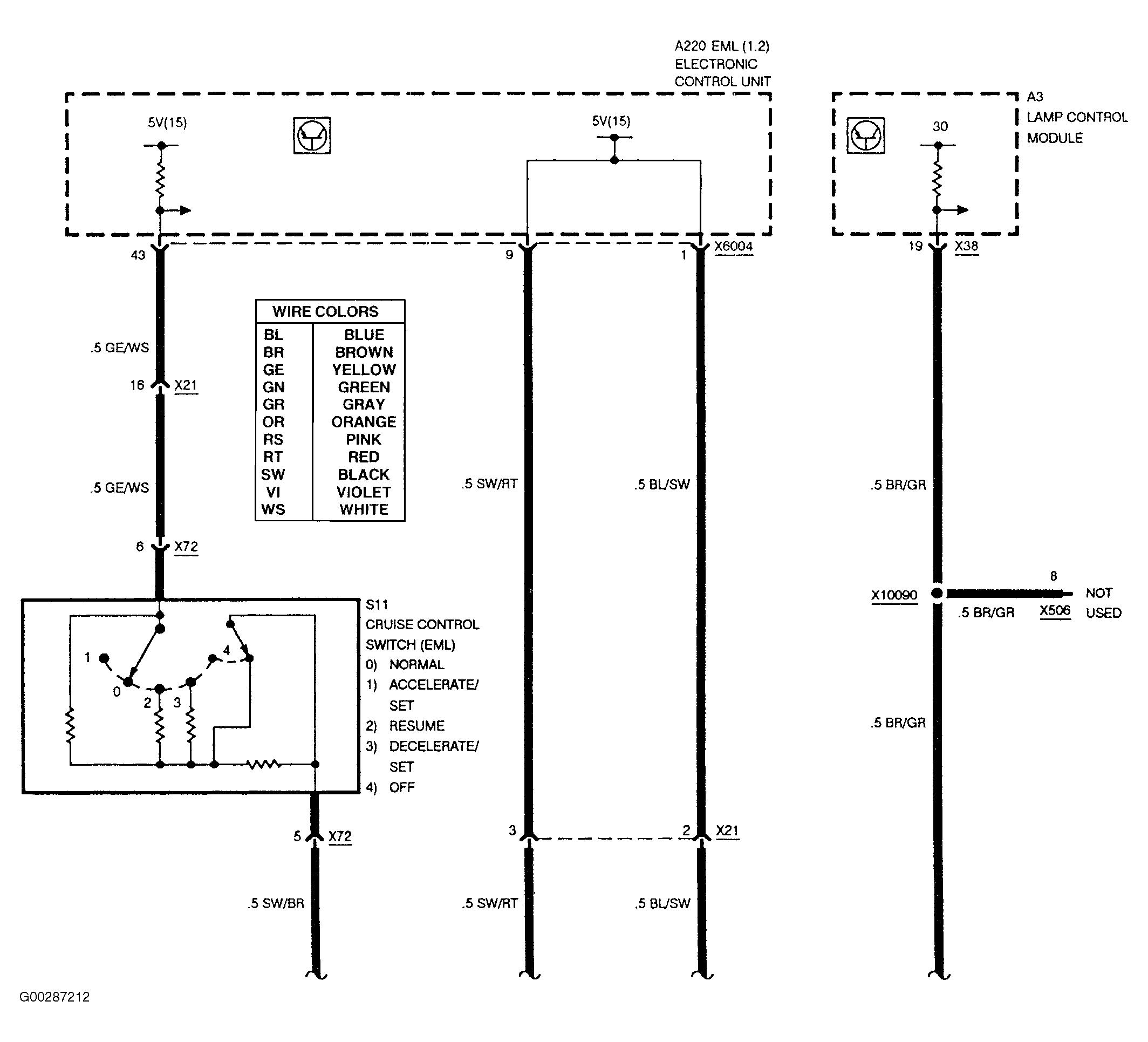

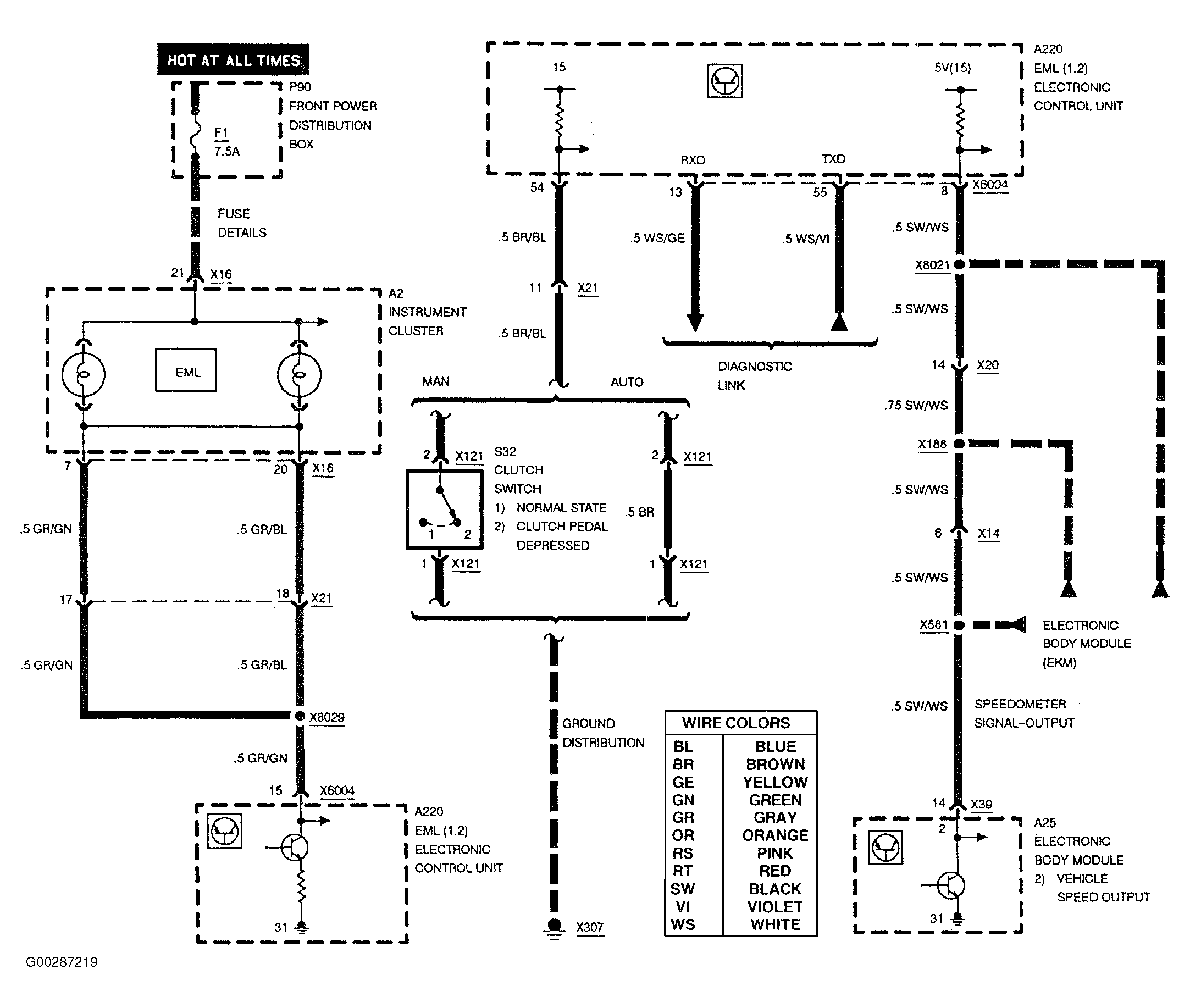

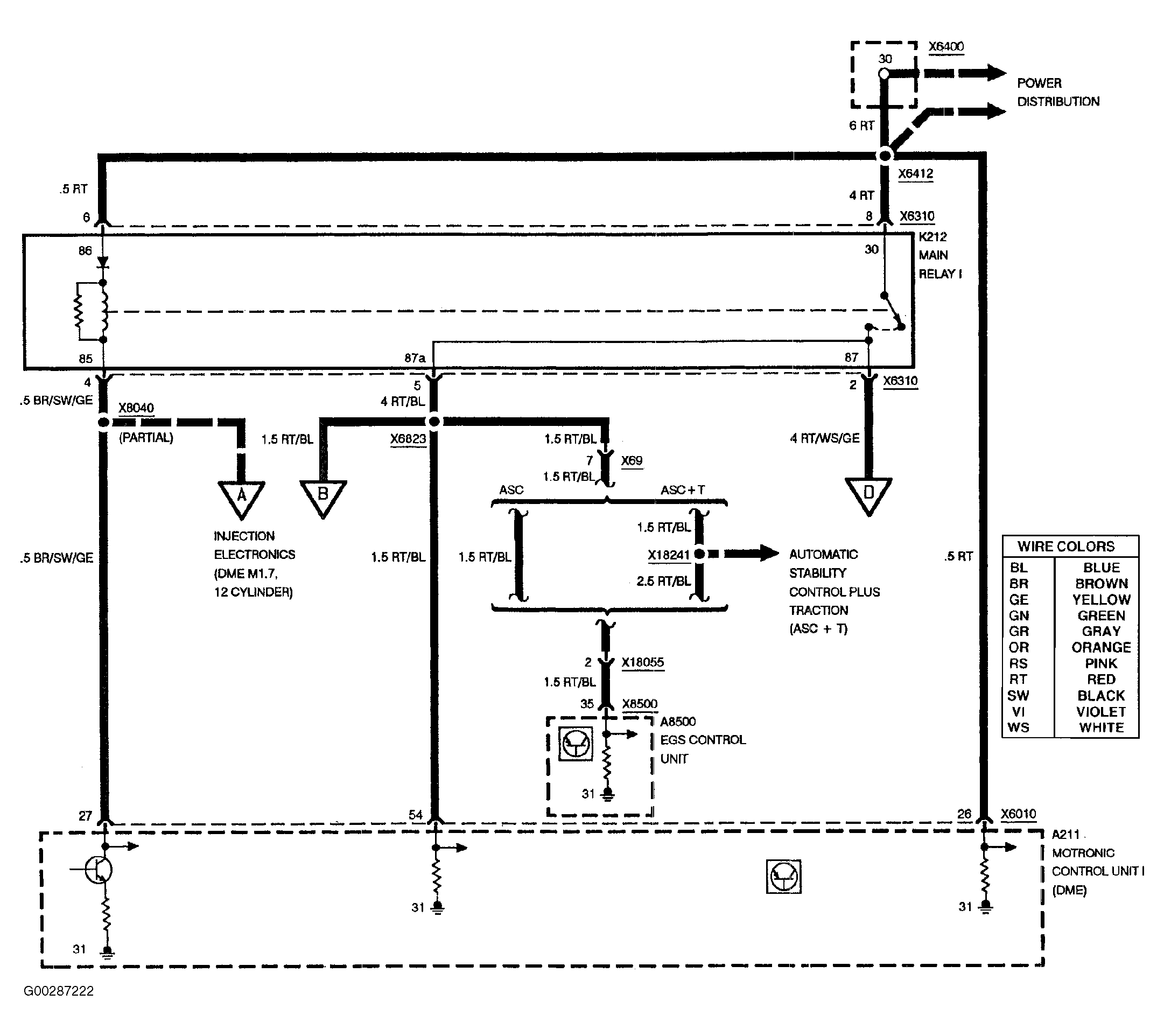

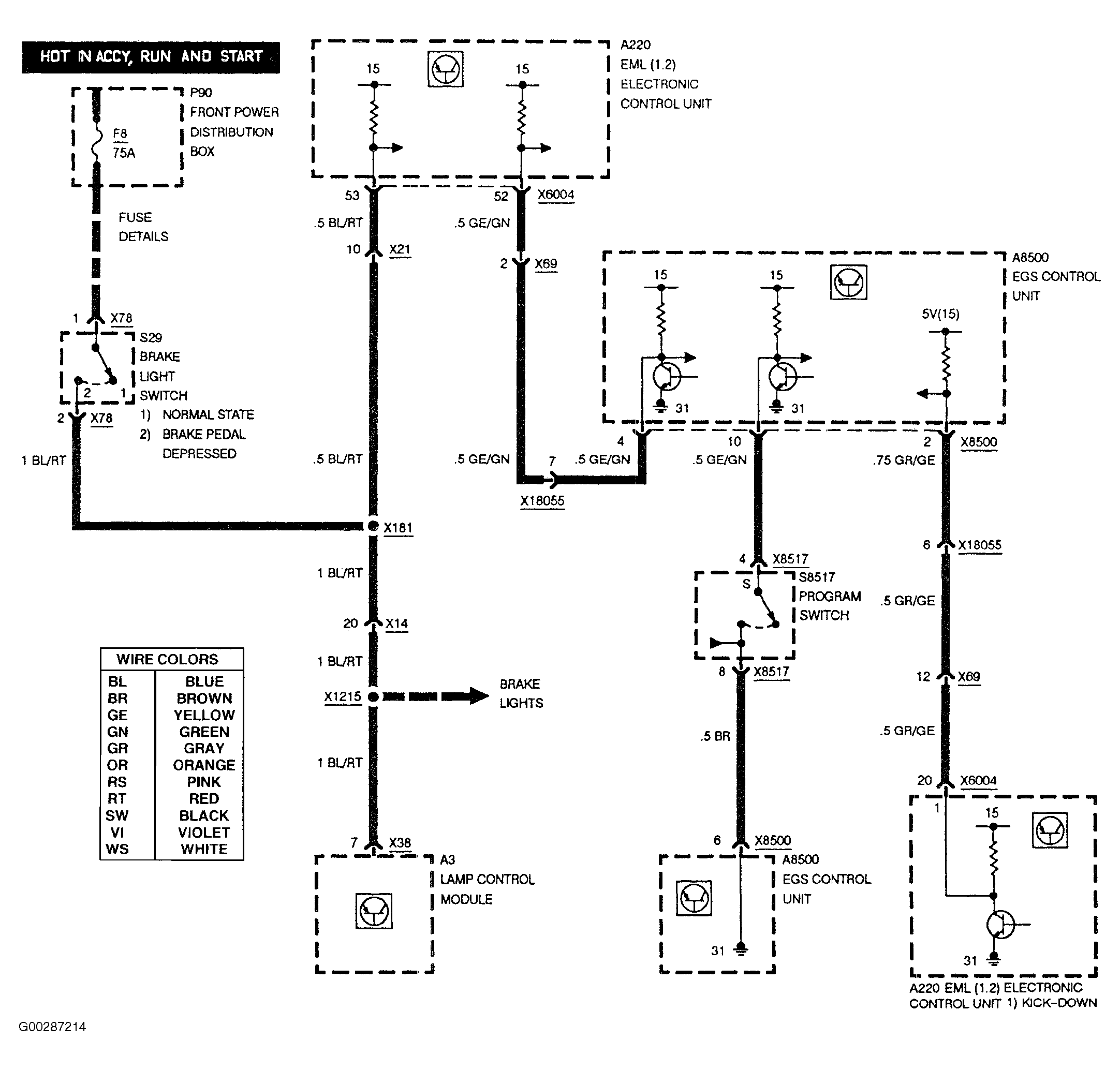

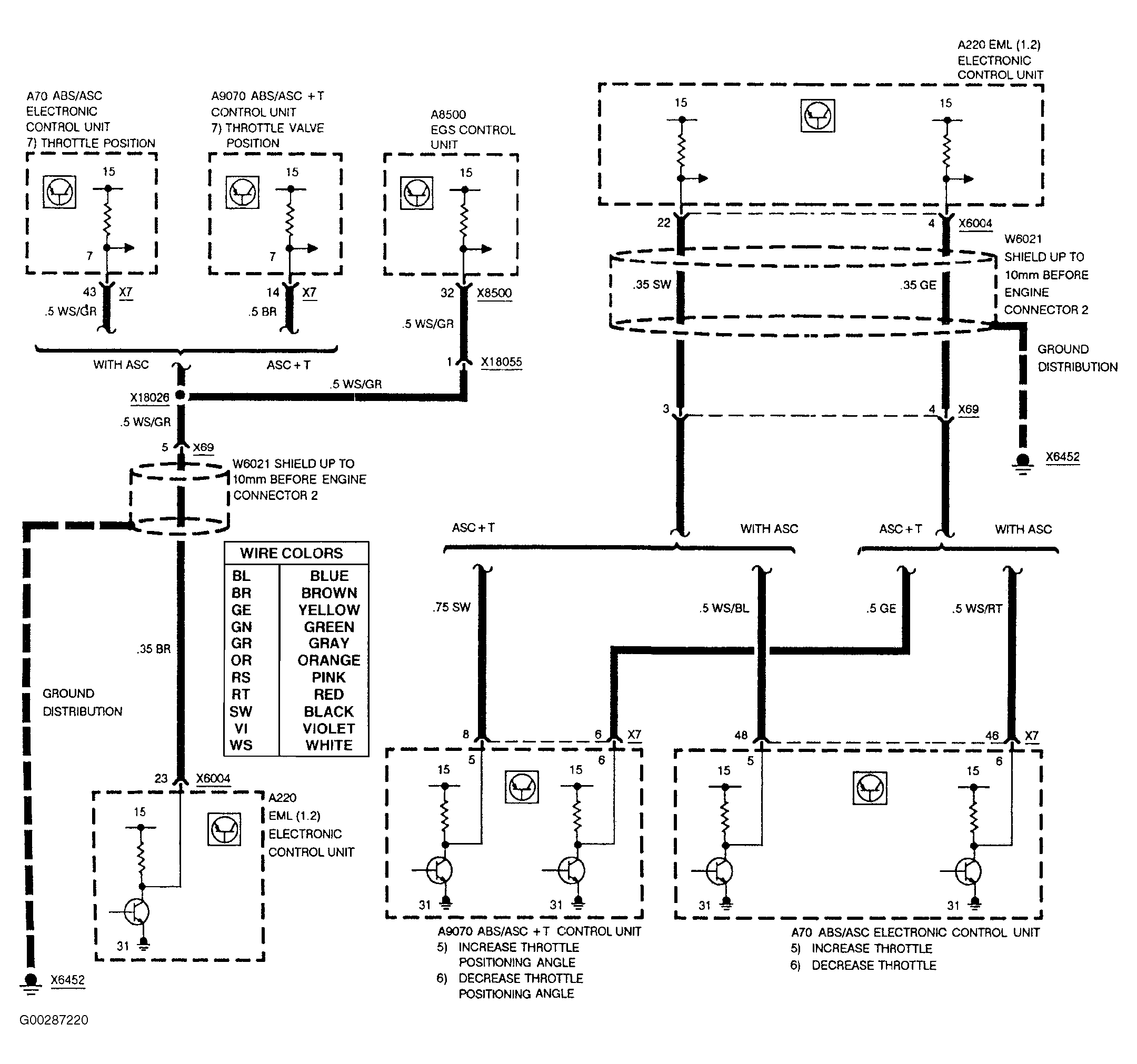

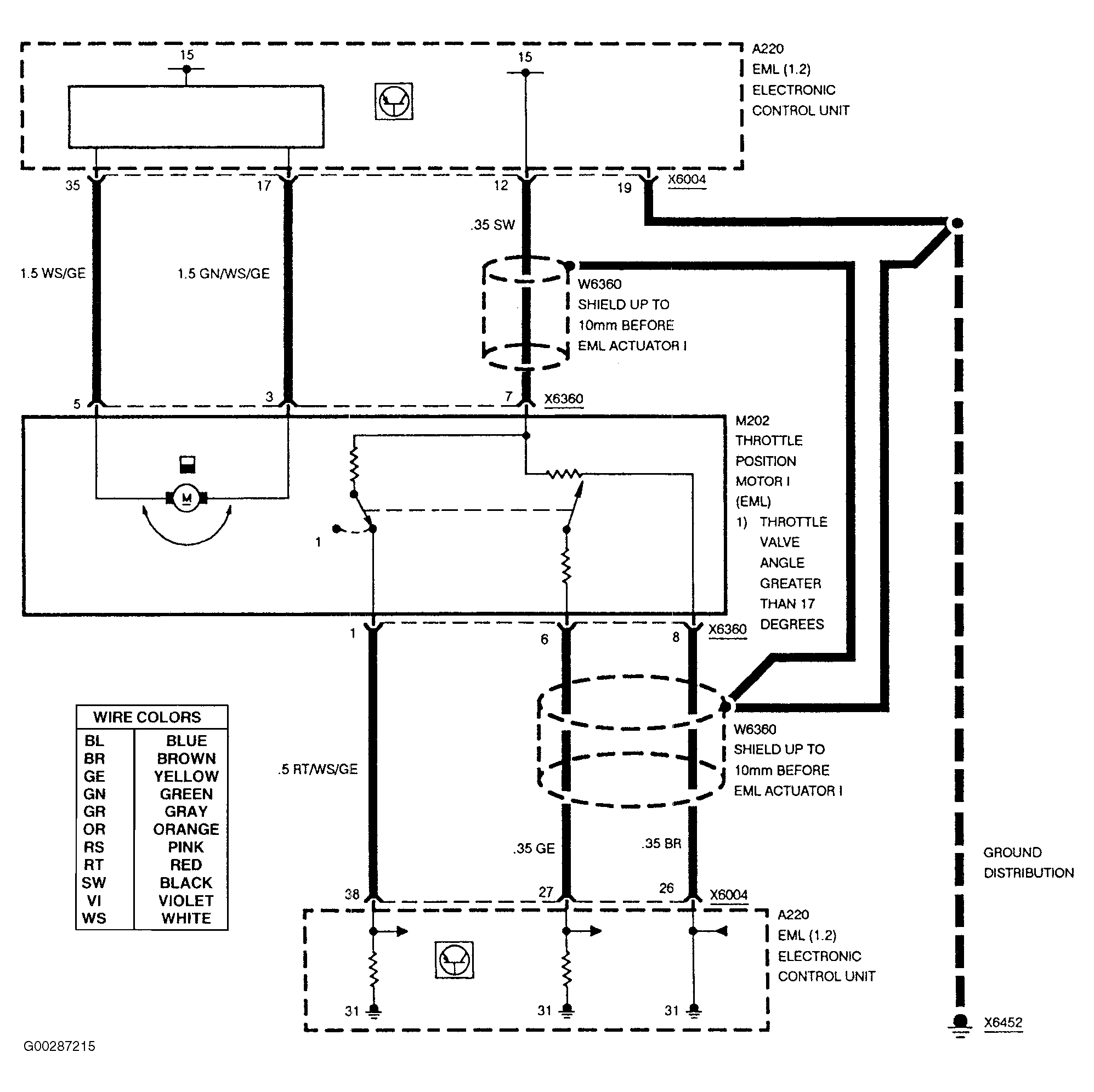

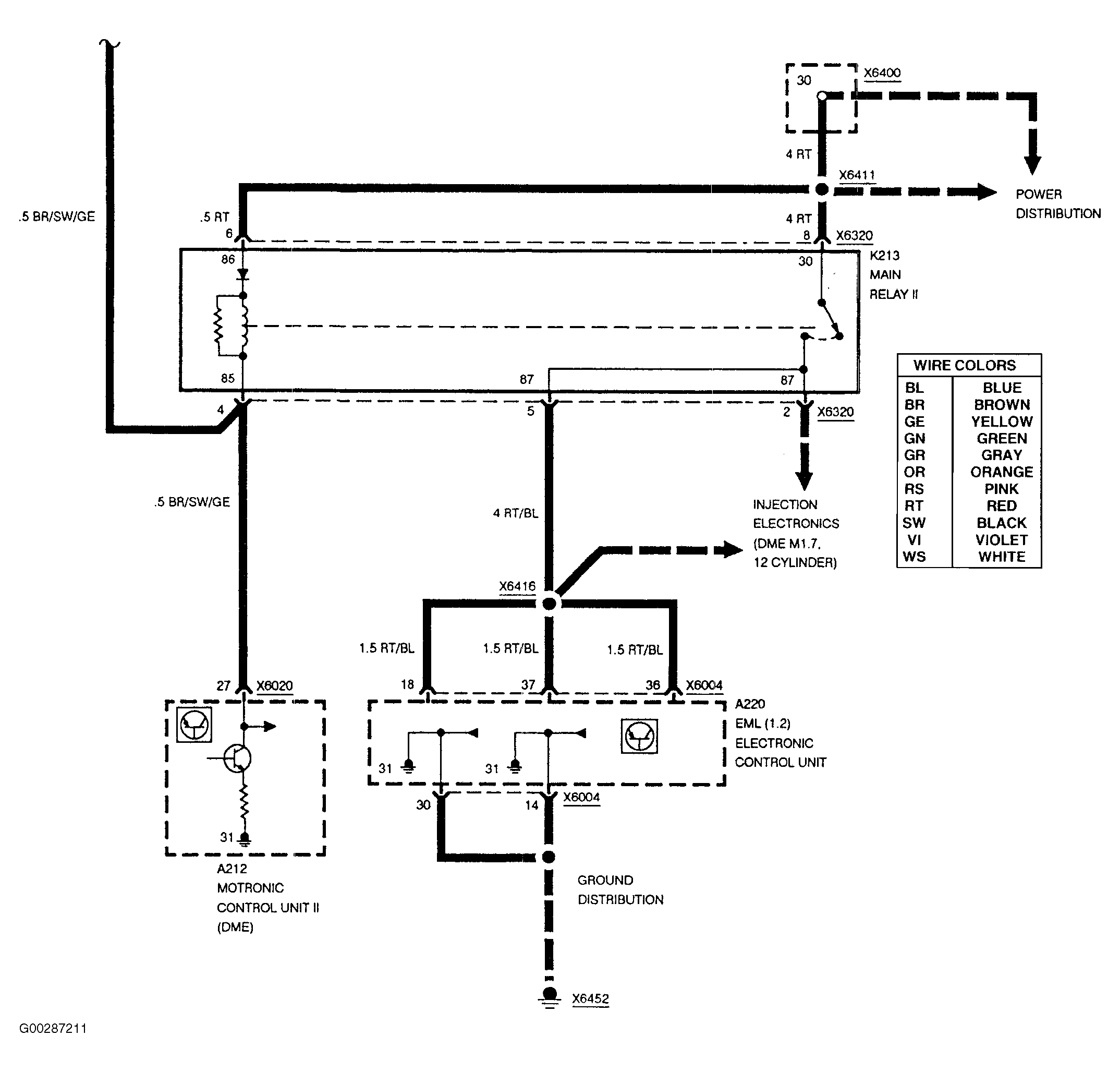

Fig 1: Electronic Throttle Control Wiring Diagram - 8 Series (1 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.

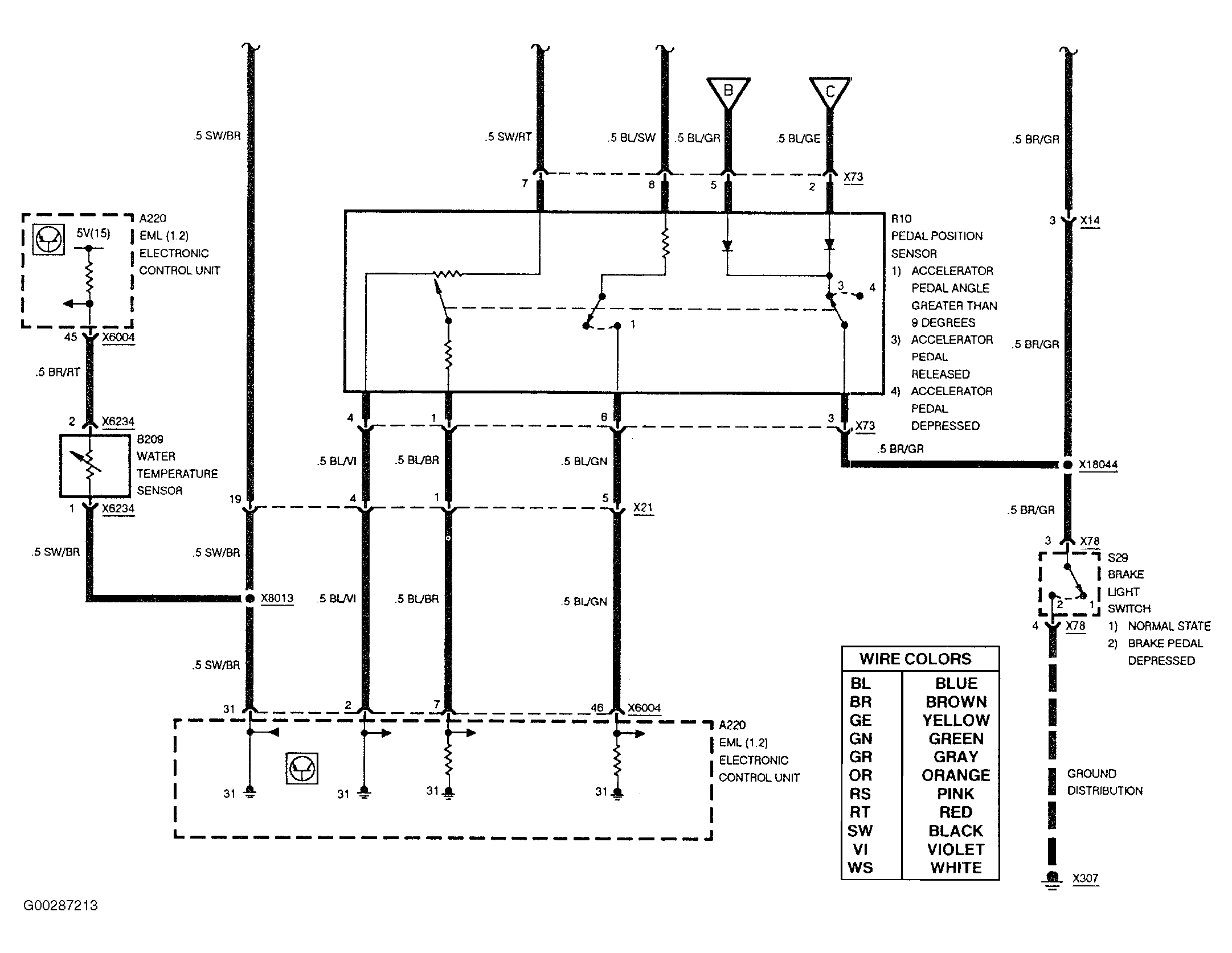

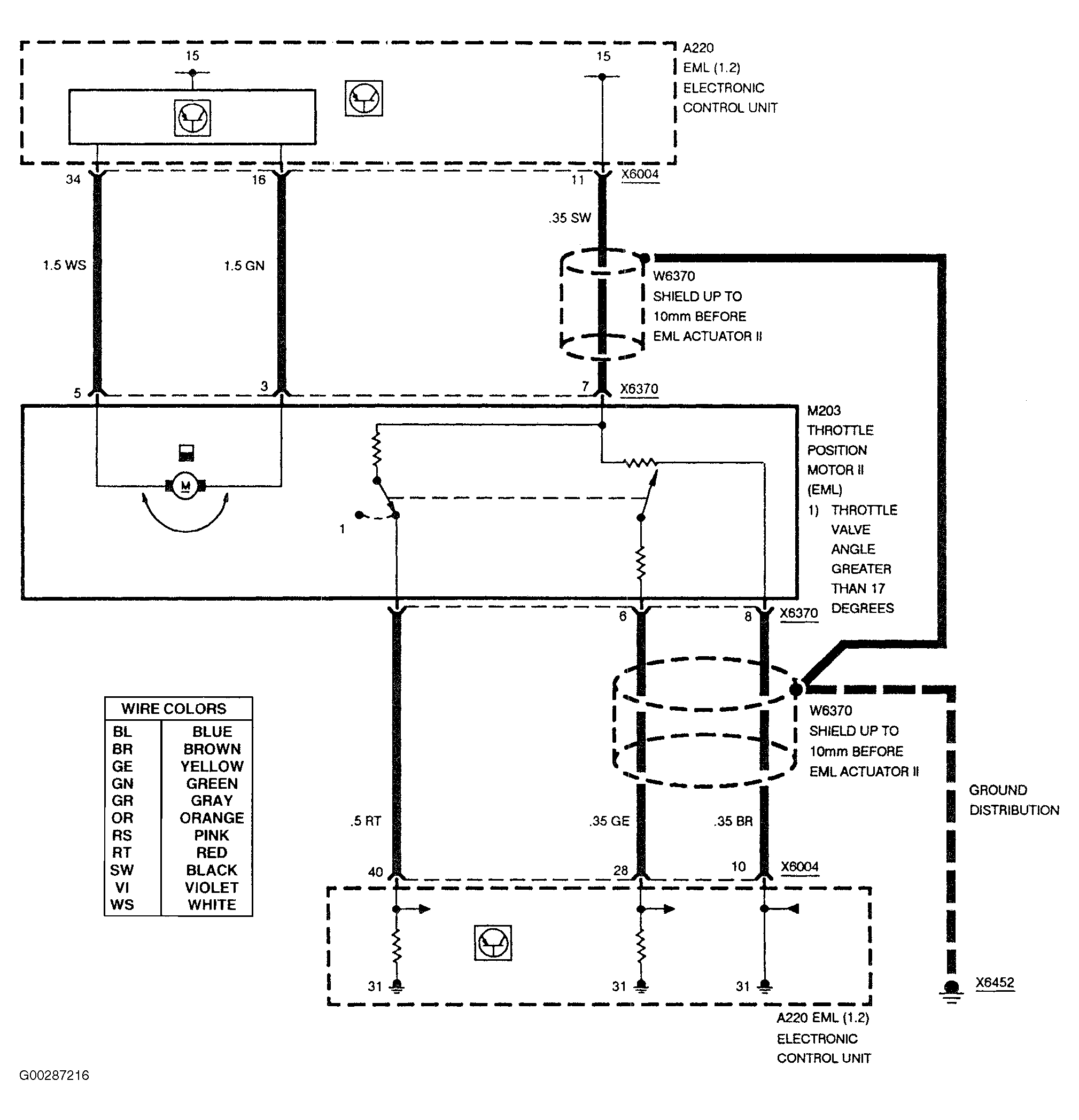

Fig 2: Electronic Throttle Control Wiring Diagram - 8 Series (2 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.

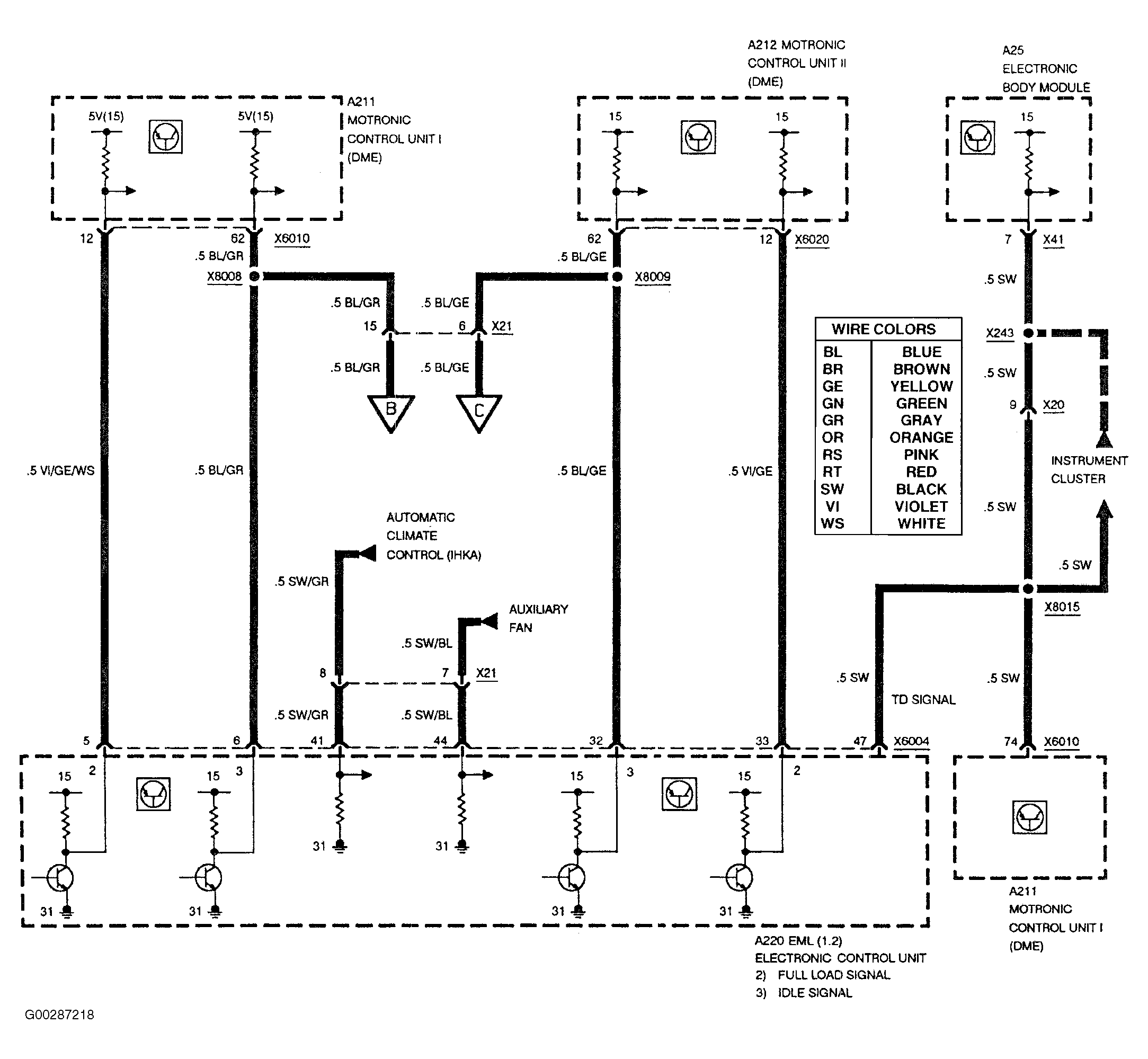

Fig 3: Electronic Throttle Control Wiring Diagram - 8 Series (3 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.

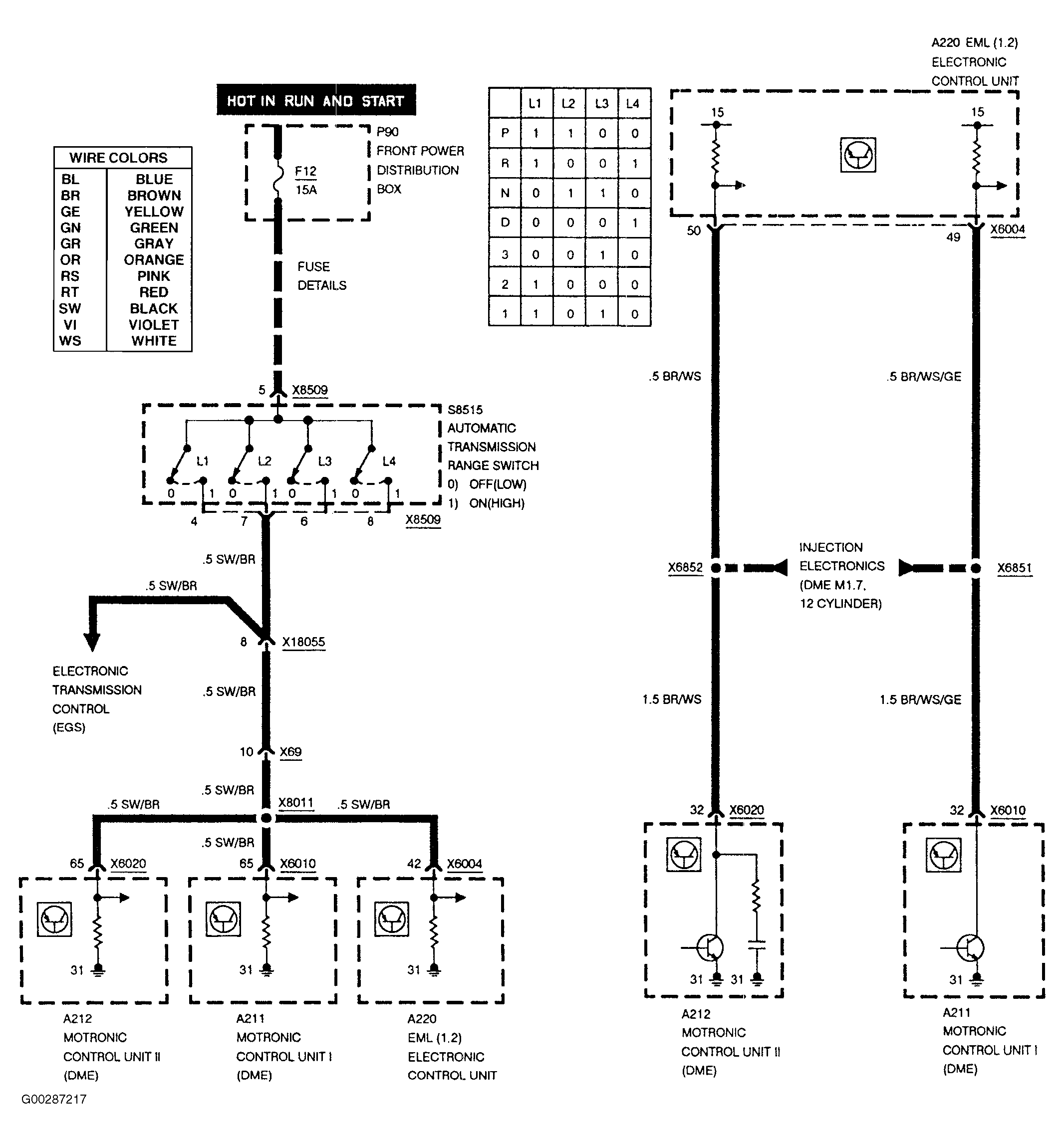

Fig 4: Electronic Throttle Control Wiring Diagram - 8 Series (4 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 5: Electronic Throttle Control Wiring Diagram - 8 Series (5 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 6: Electronic Throttle Control Wiring Diagram - 8 Series (6 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 7: Electronic Throttle Control Wiring Diagram - 8 Series (7 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 8: Electronic Throttle Control Wiring Diagram - 8 Series (8 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 9: Electronic Throttle Control Wiring Diagram - 8 Series (9 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 10: Electronic Throttle Control Wiring Diagram - 8 Series (10 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 11: Electronic Throttle Control Wiring Diagram - 8 Series (11 Of 11)
Courtesy of BMW OF NORTH AMERICA, INC.

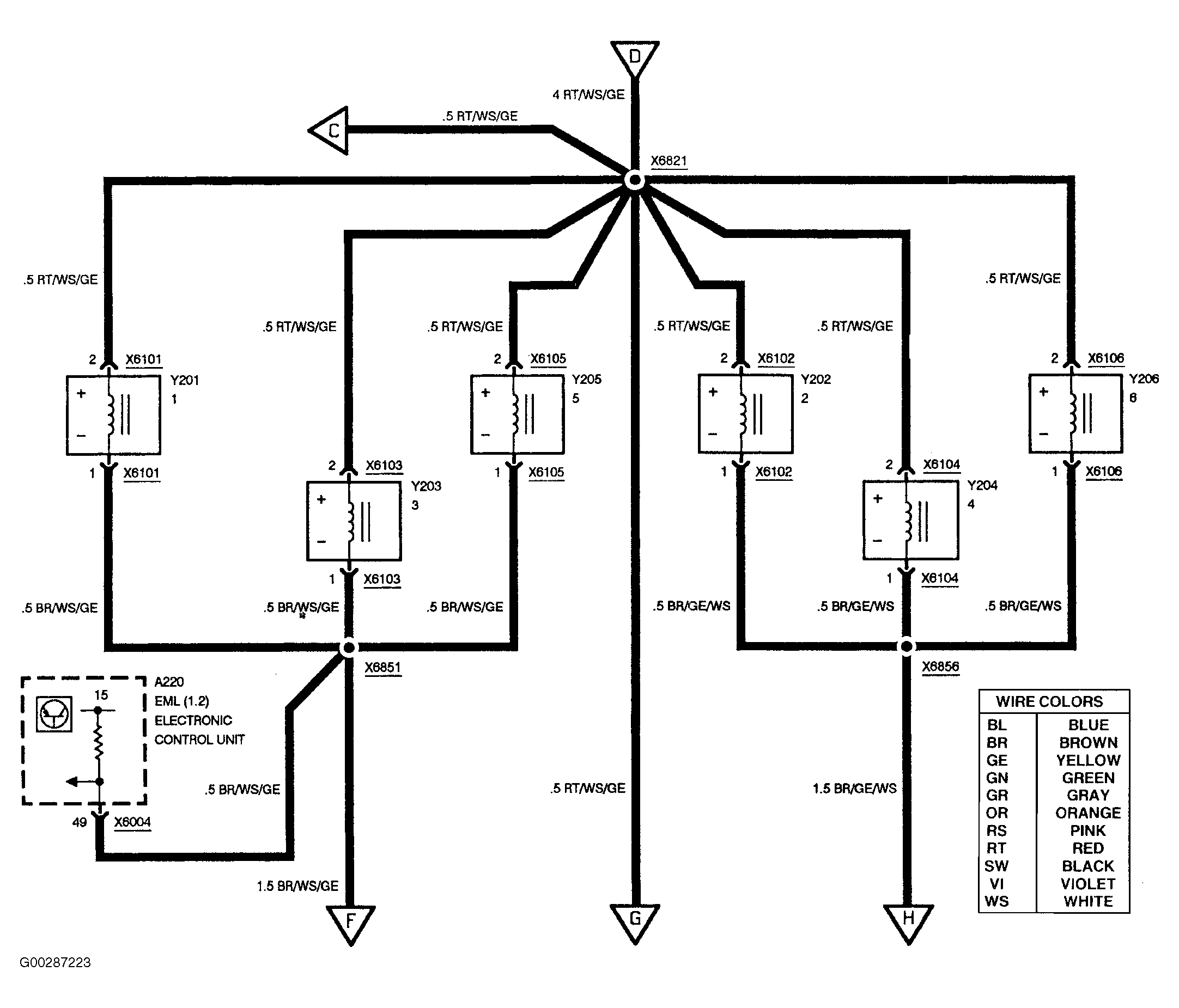

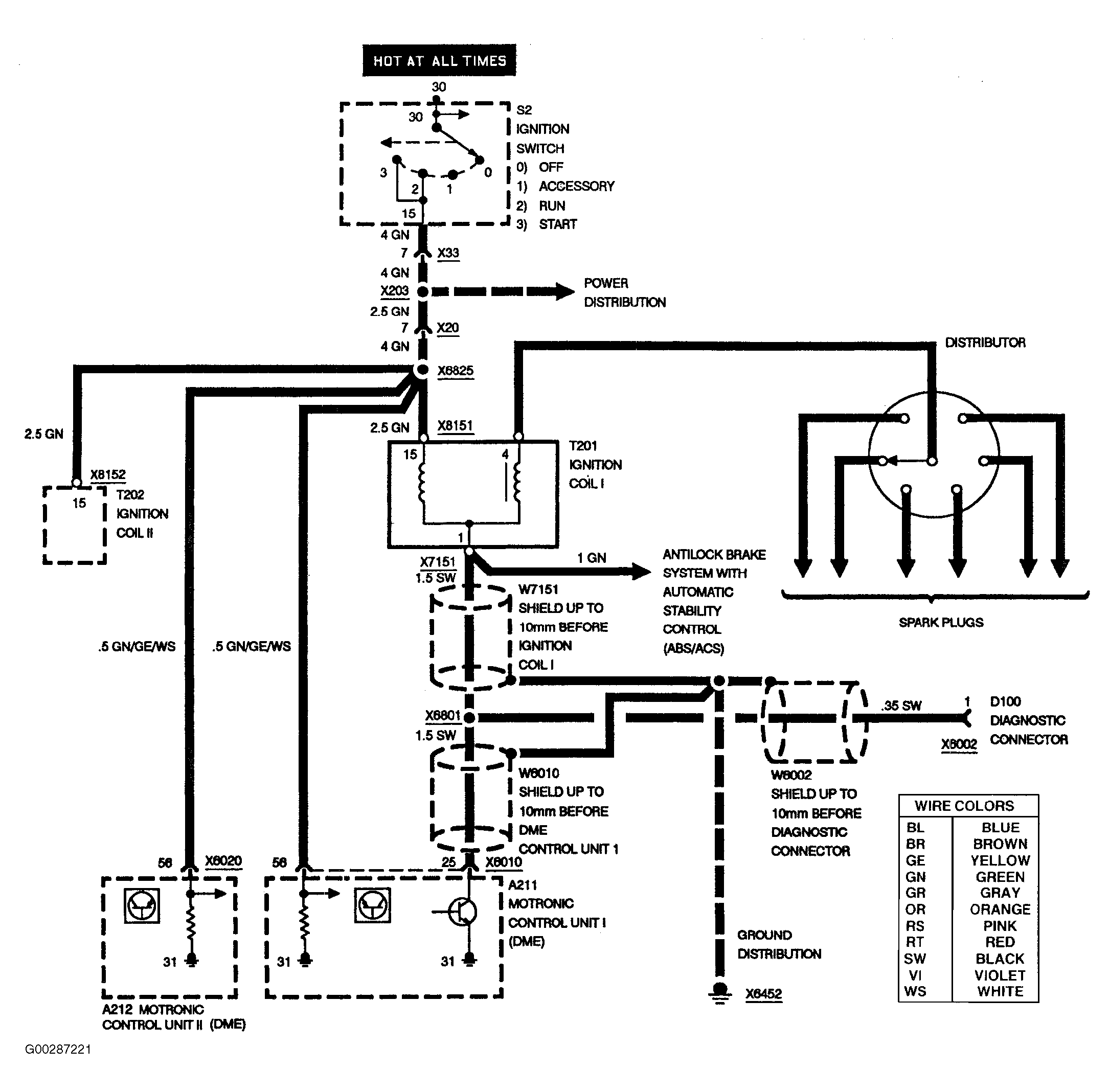

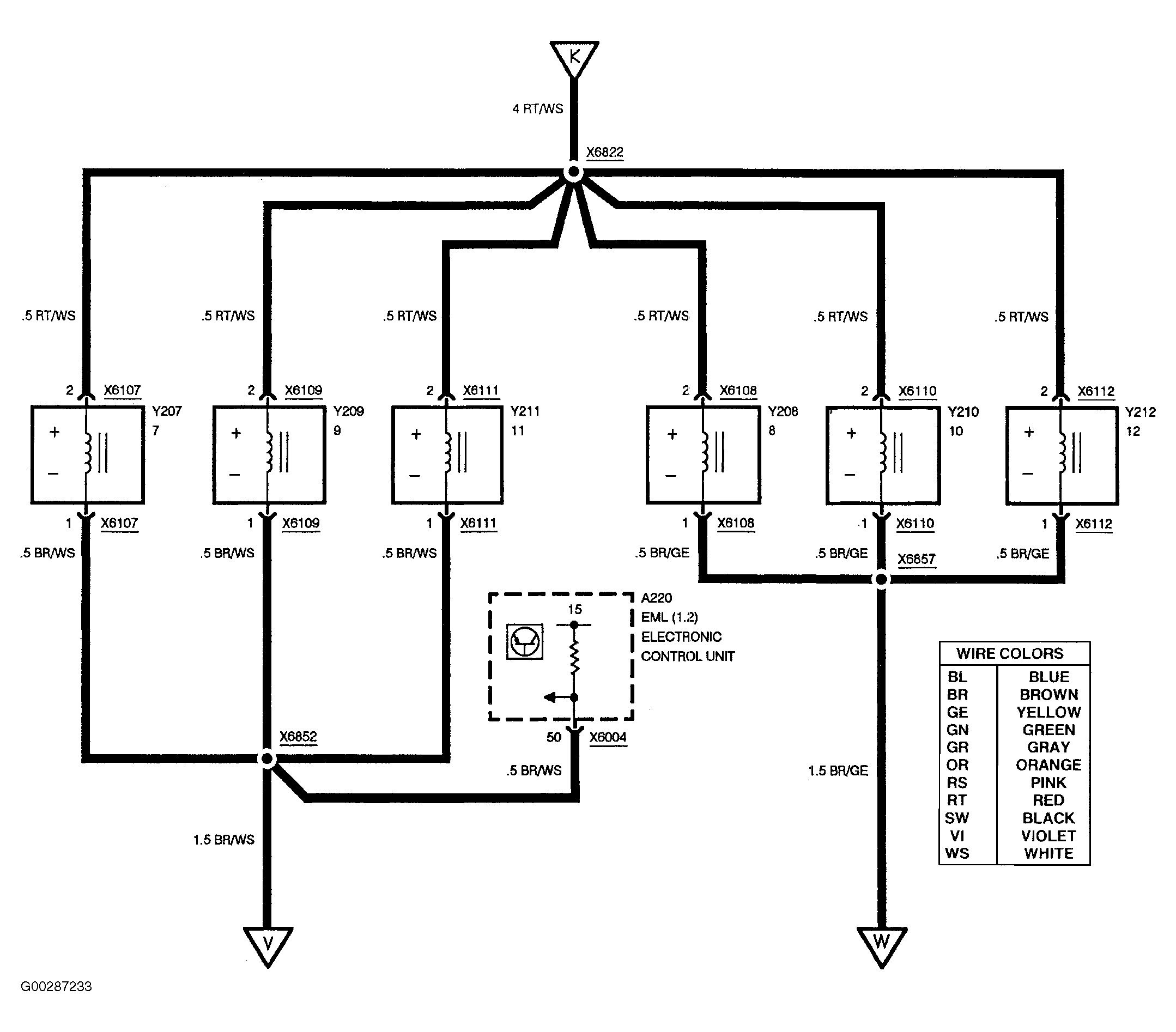

Fig 12: Fuel Injector System Wiring Diagram - 8 Series (1 Of 1)
Courtesy of BMW OF NORTH AMERICA, INC.

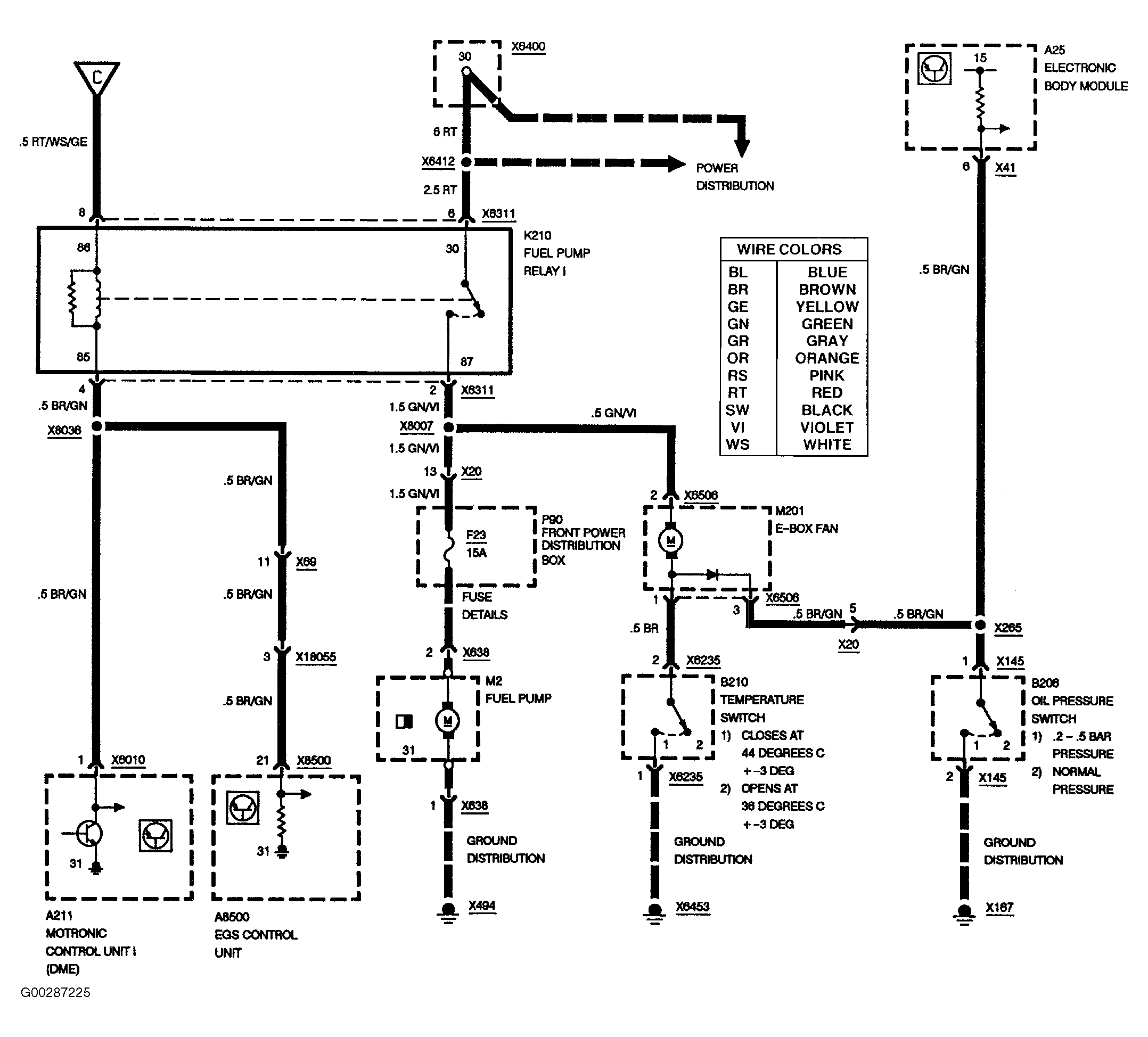

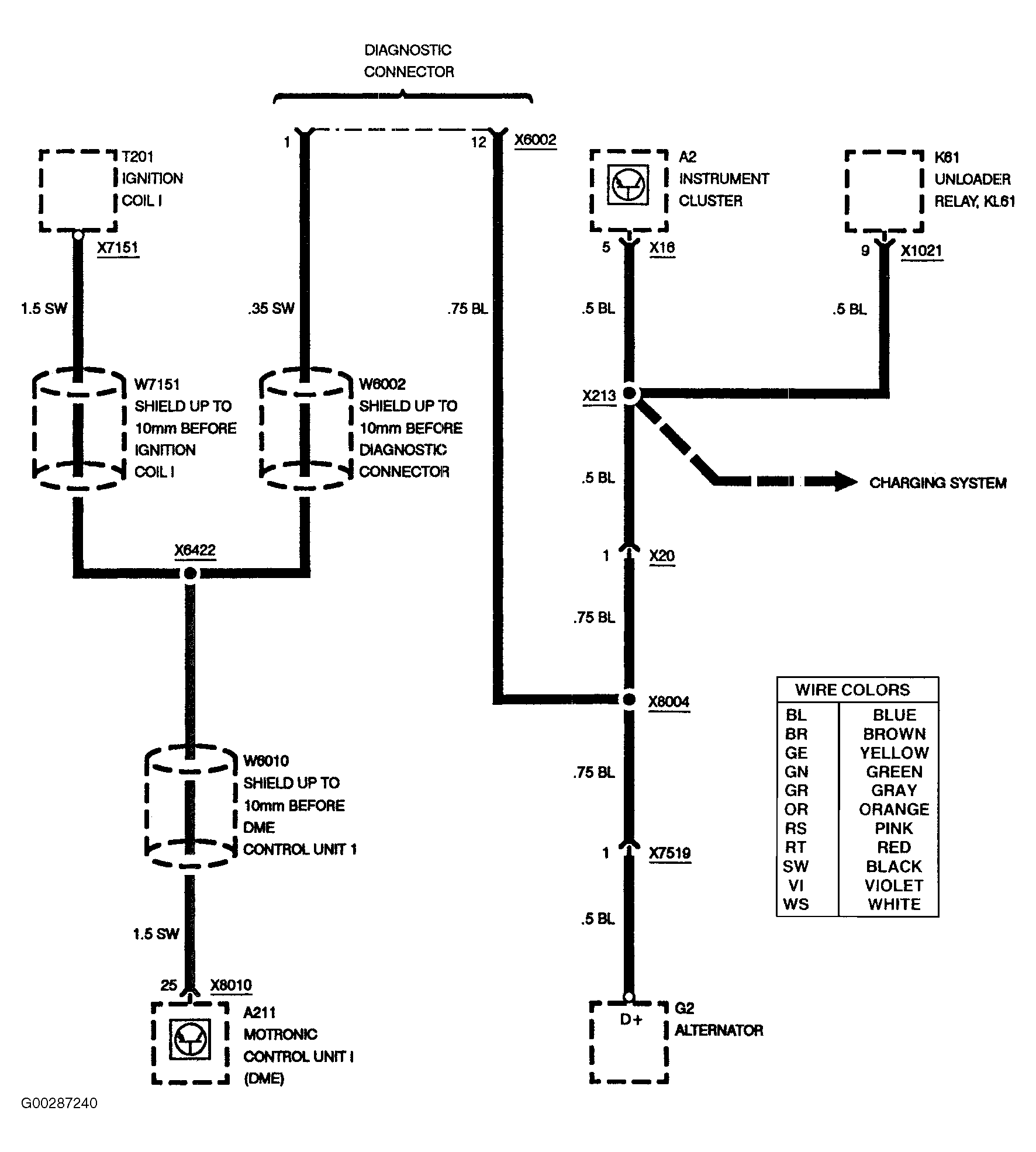

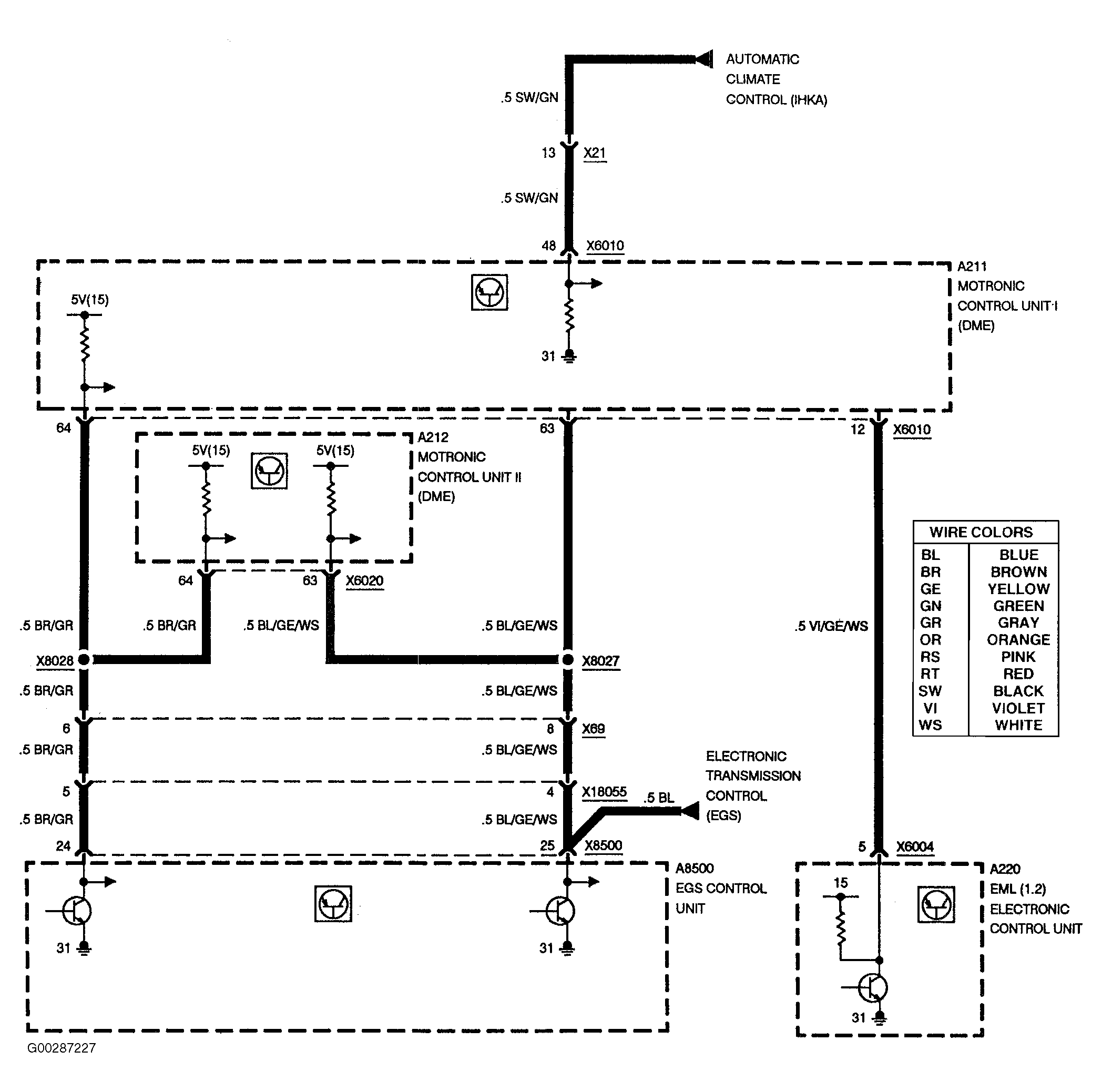

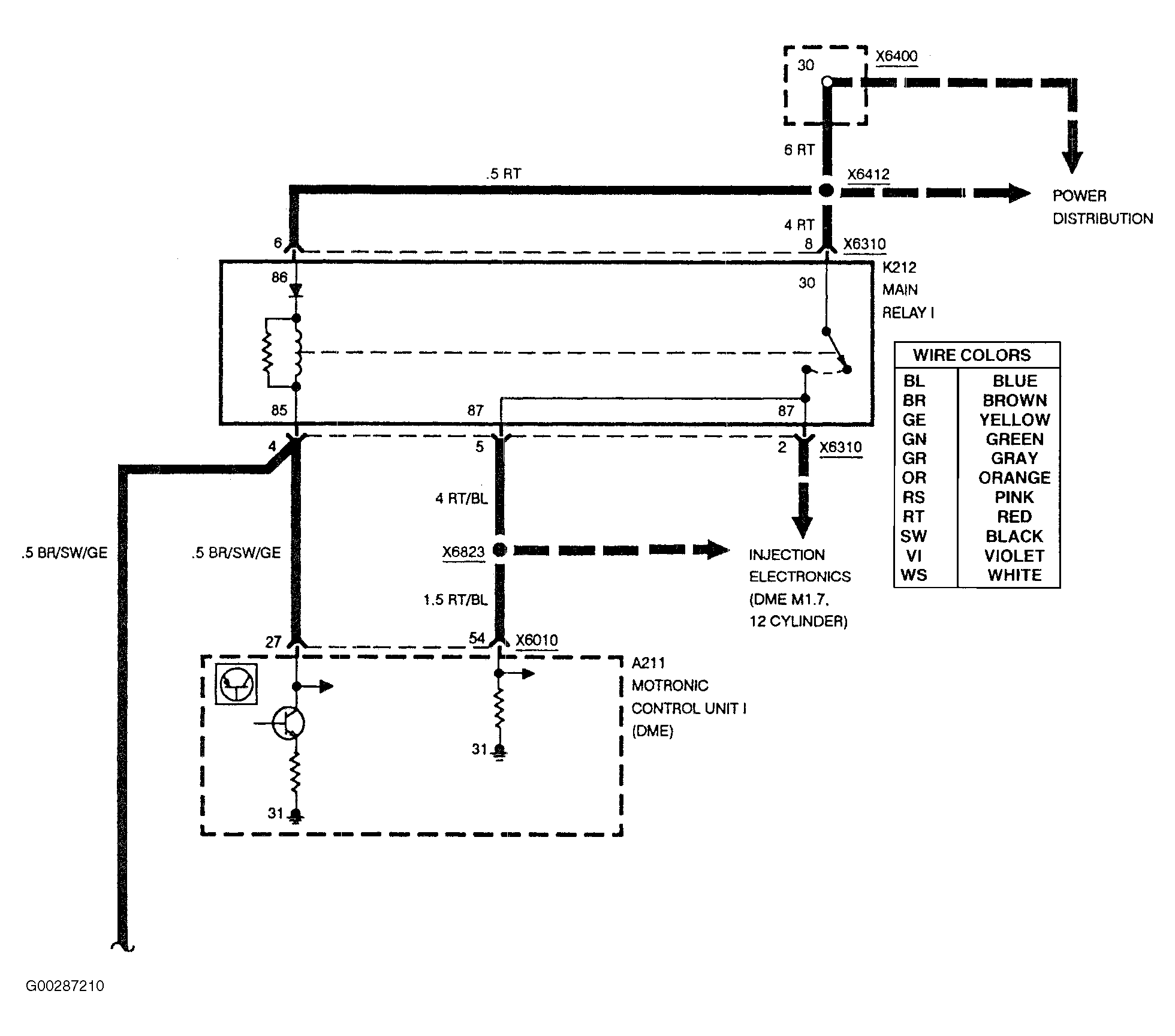

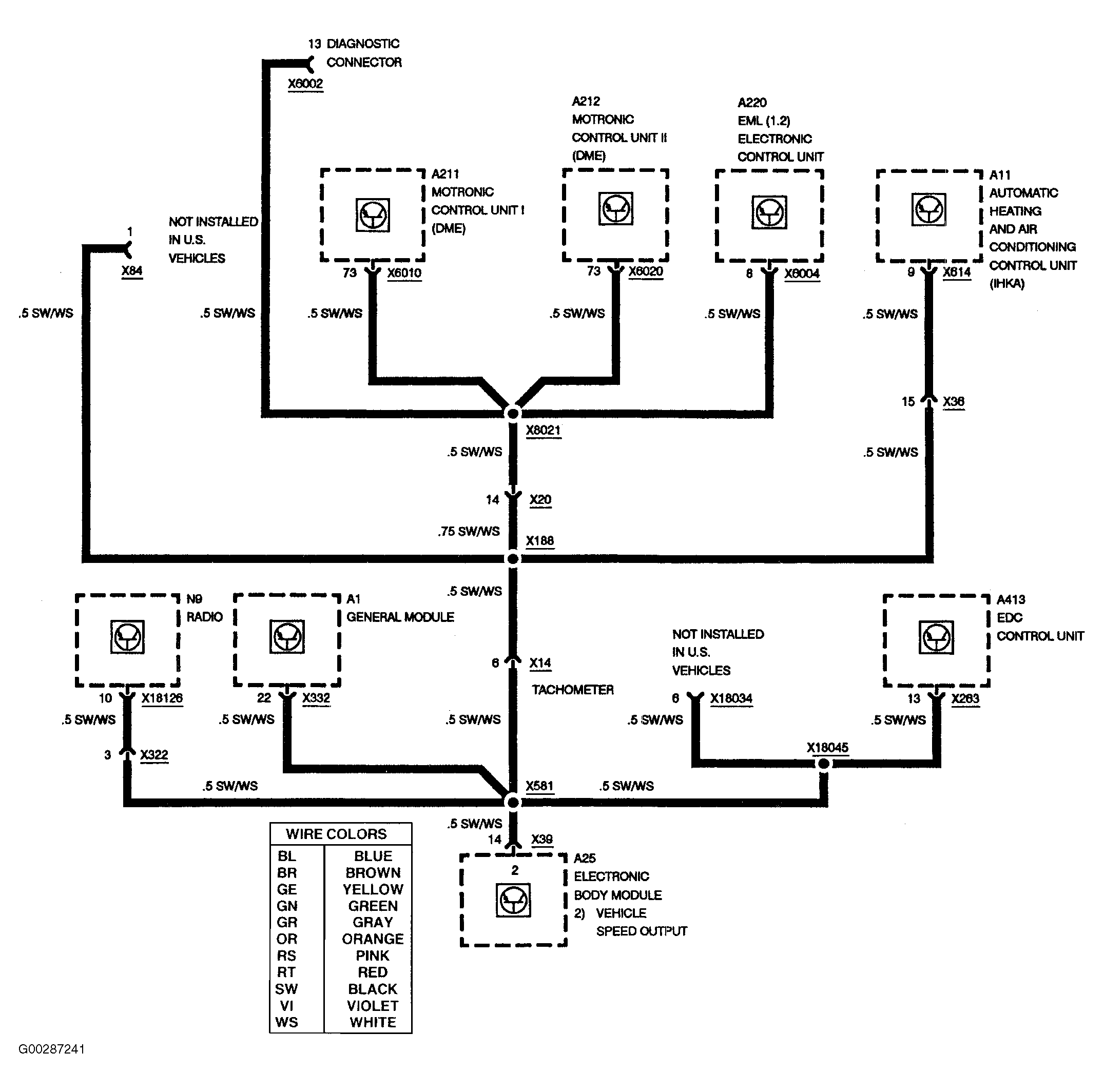

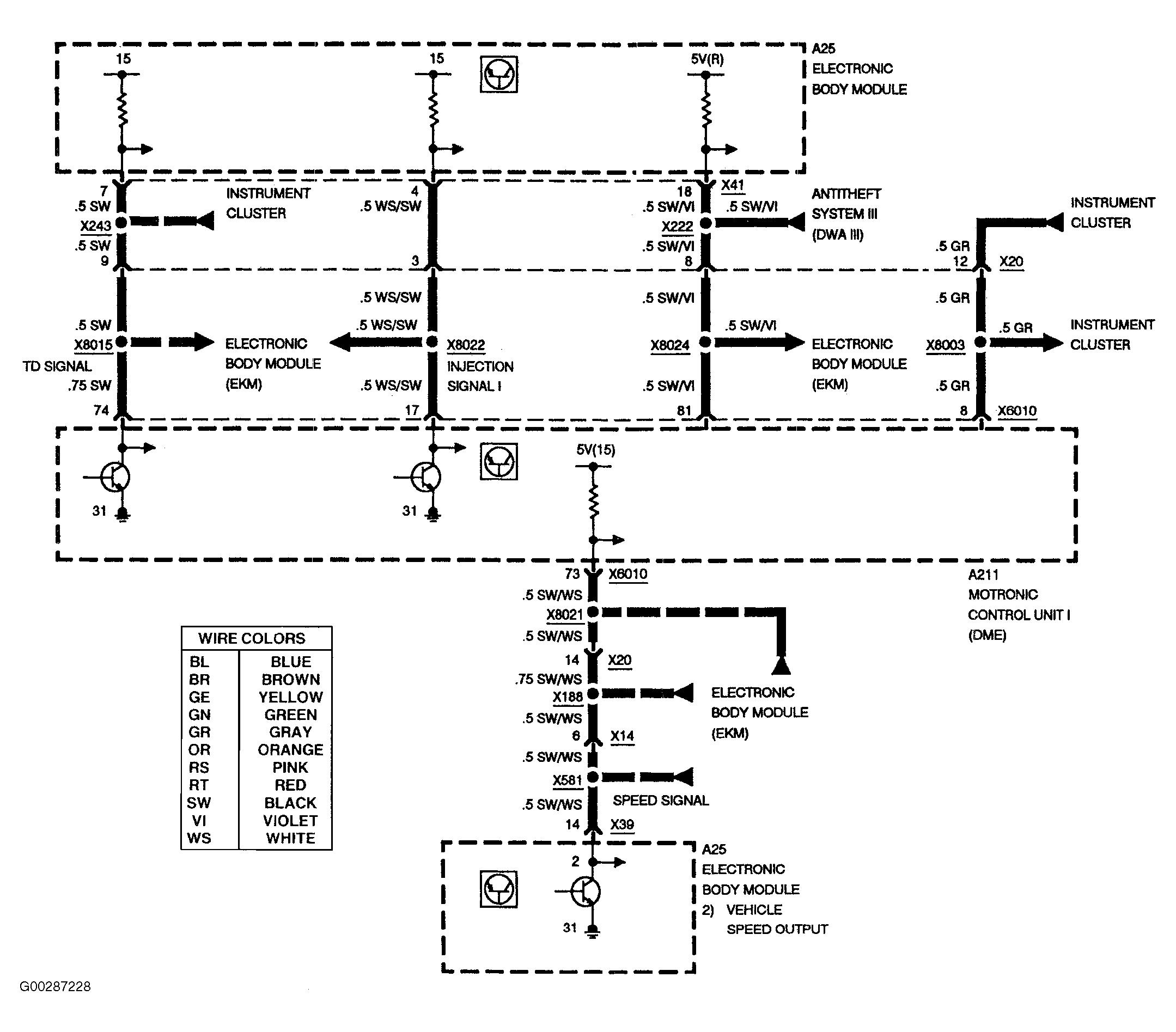

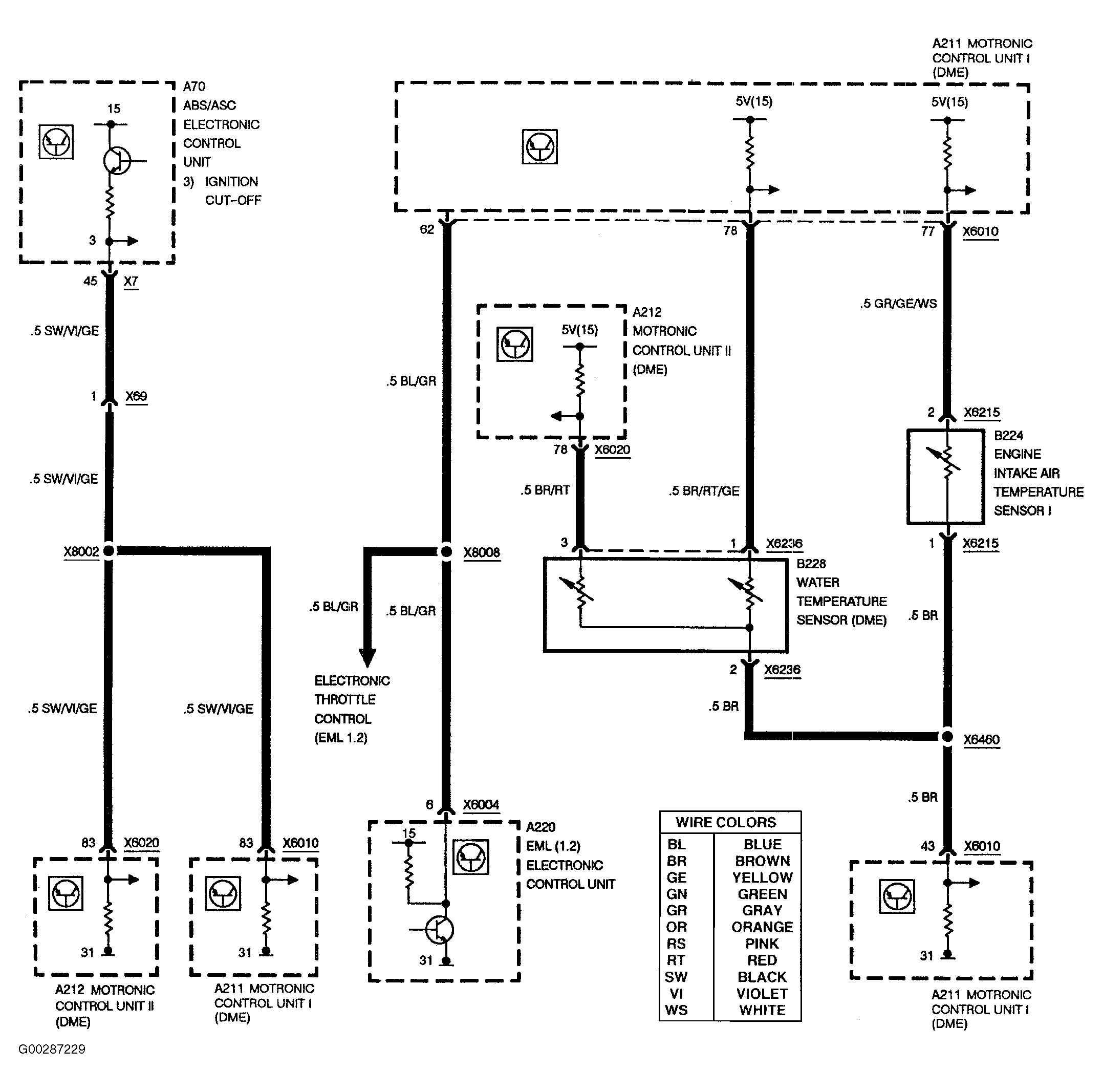

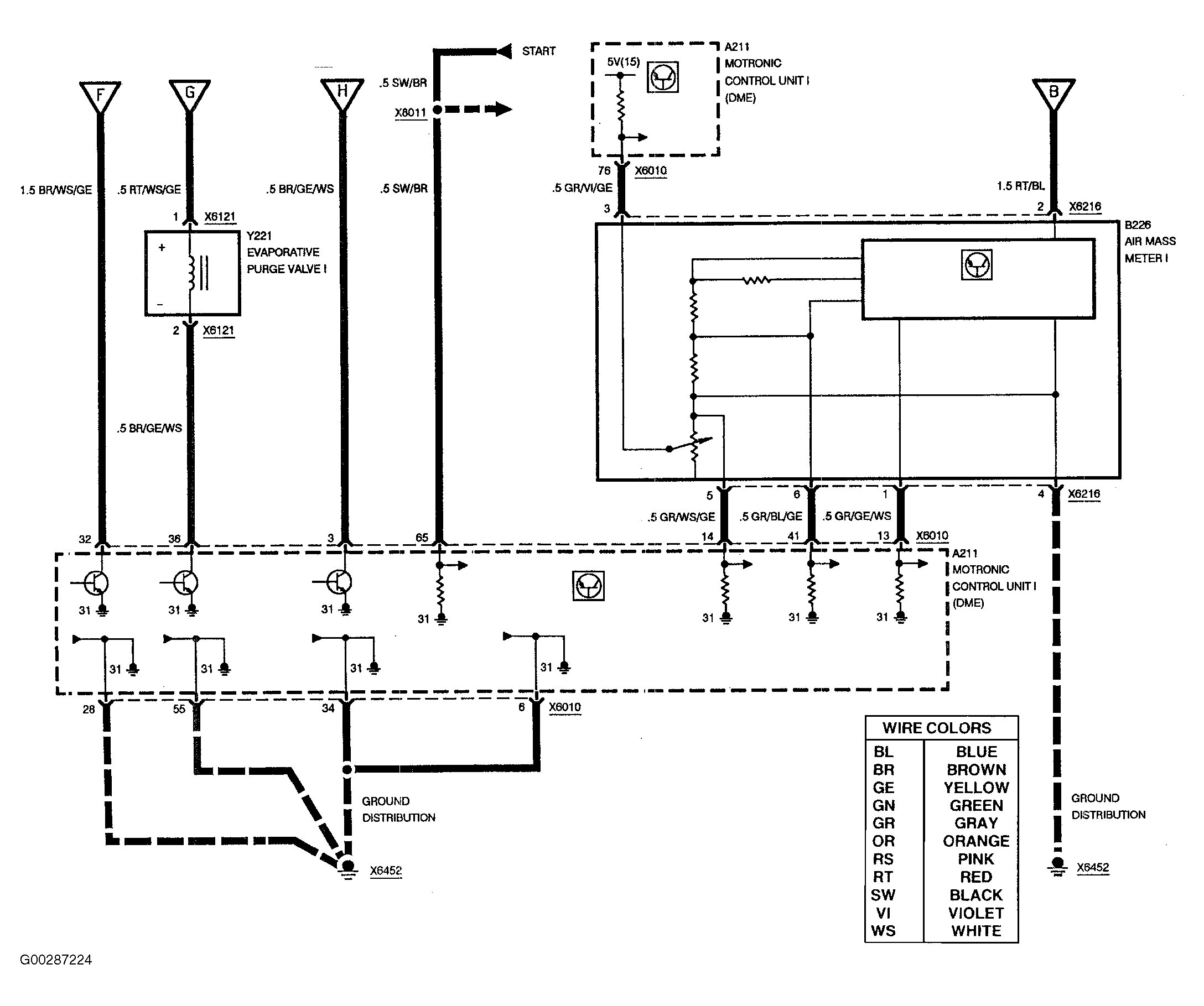

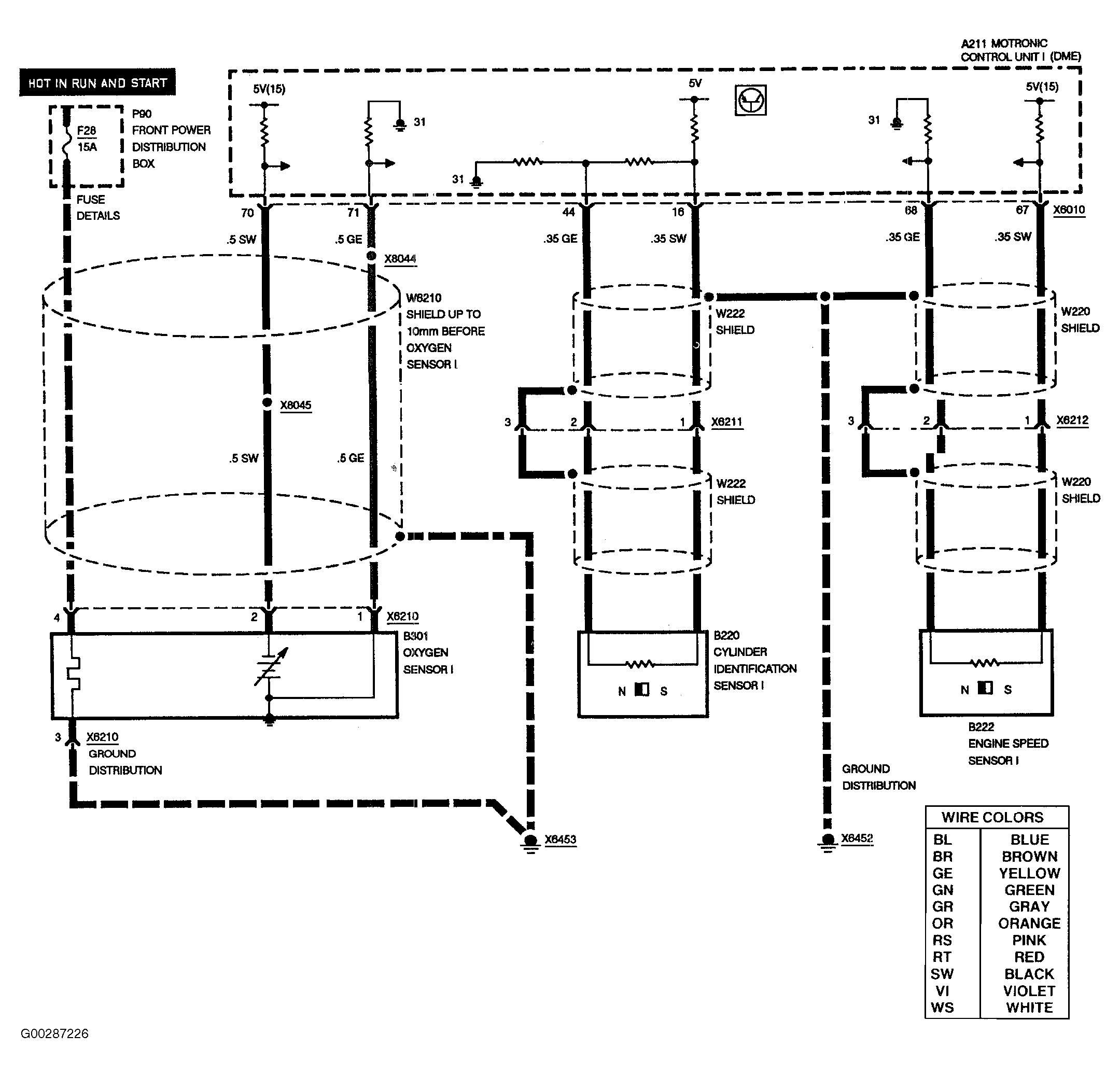

Fig 13: Motronic Control Unit I Wiring Diagram - 8 Series (1 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 14: Motronic Control Unit I Wiring Diagram - 8 Series (2 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 15: Motronic Control Unit I Wiring Diagram - 8 Series (3 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 16: Motronic Control Unit I Wiring Diagram - 8 Series (4 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 17: Motronic Control Unit I Wiring Diagram - 8 Series (5 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 18: Motronic Control Unit I Wiring Diagram - 8 Series (6 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 19: Motronic Control Unit I Wiring Diagram - 8 Series (7 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 20: Motronic Control Unit I Wiring Diagram - 8 Series (8 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 21: Motronic Control Unit I Wiring Diagram - 8 Series (9 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 22: Motronic Control Unit I Wiring Diagram - 8 Series (10 Of 10)
Courtesy of BMW OF NORTH AMERICA, INC.

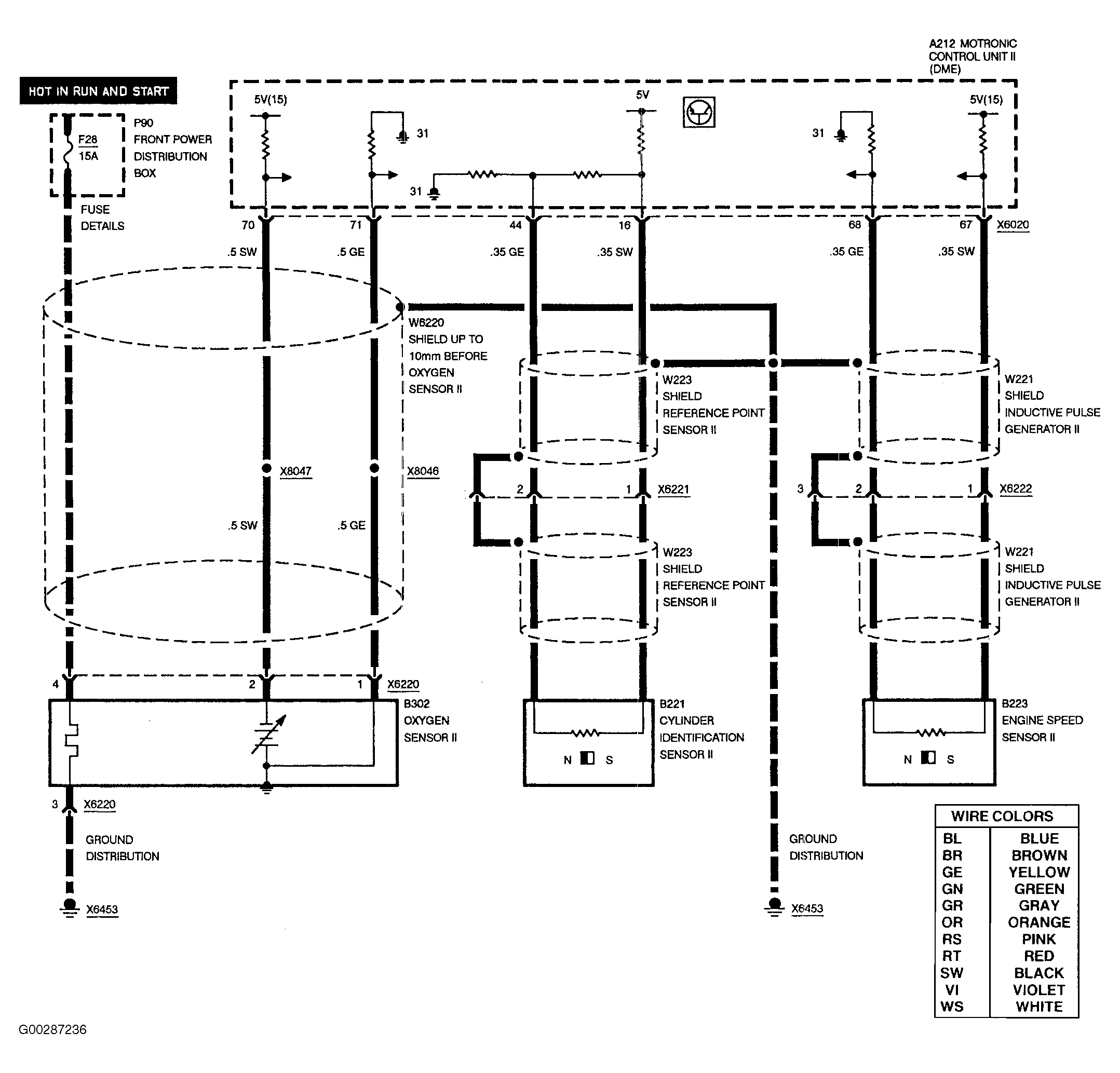

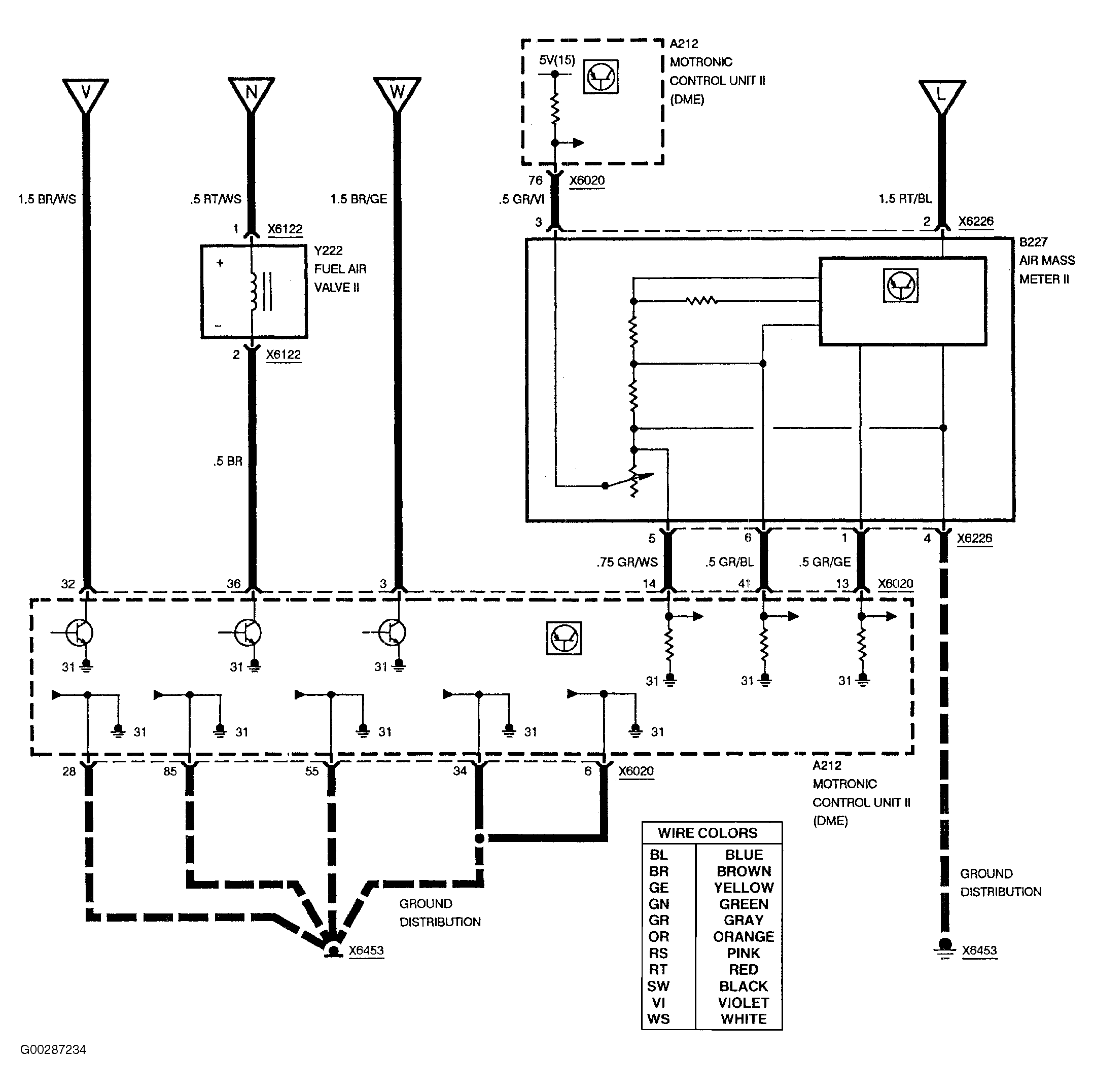

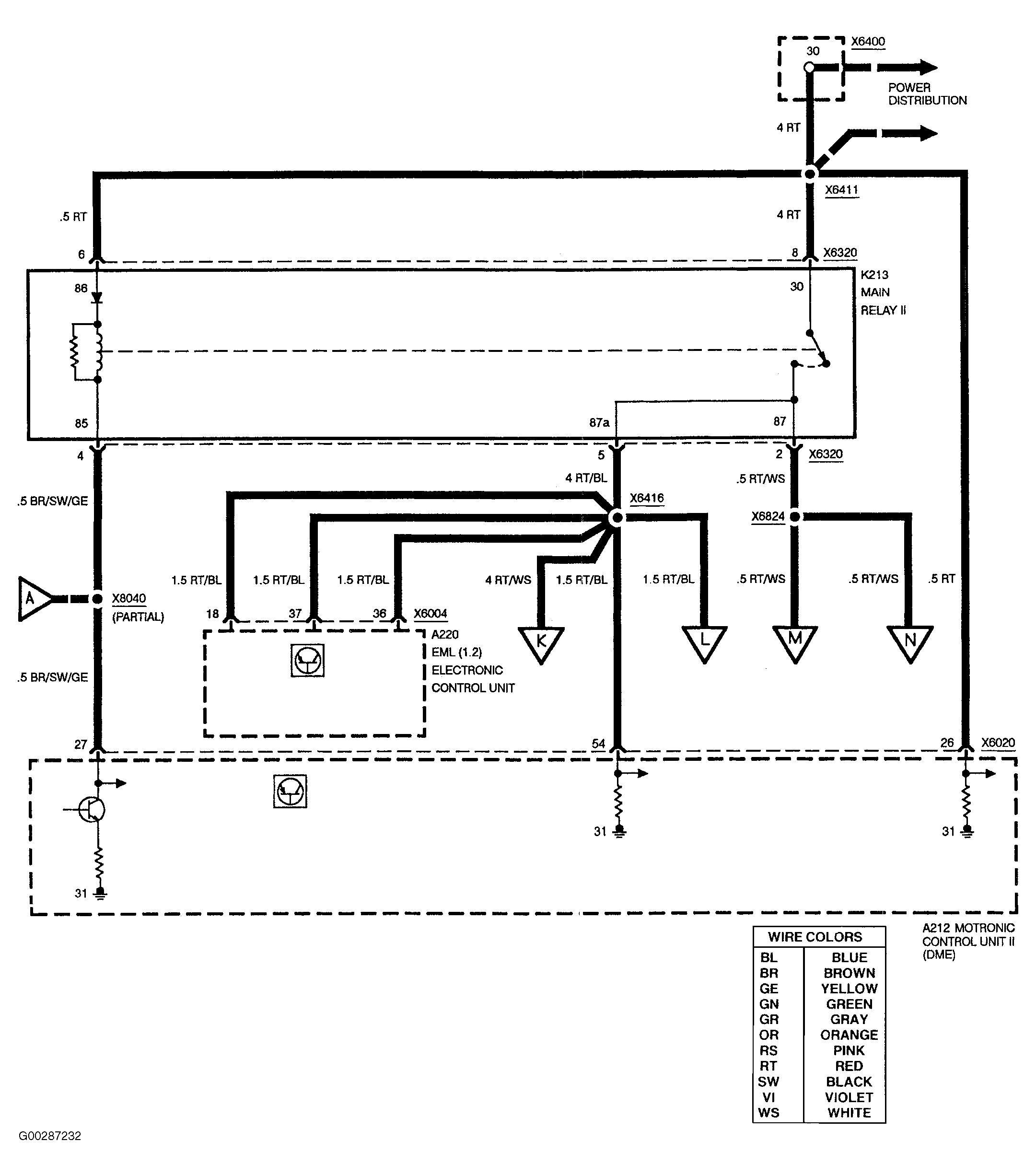

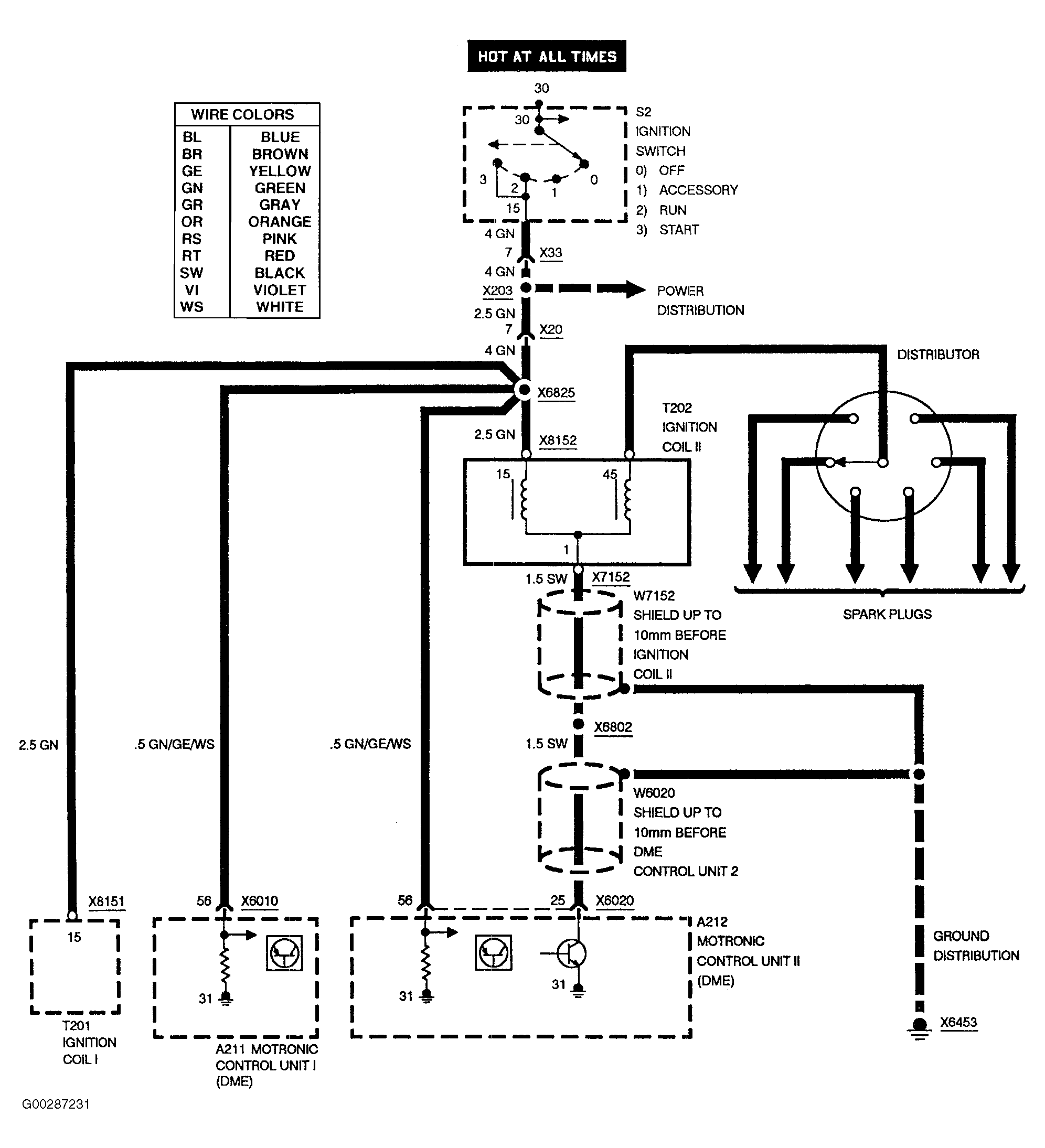

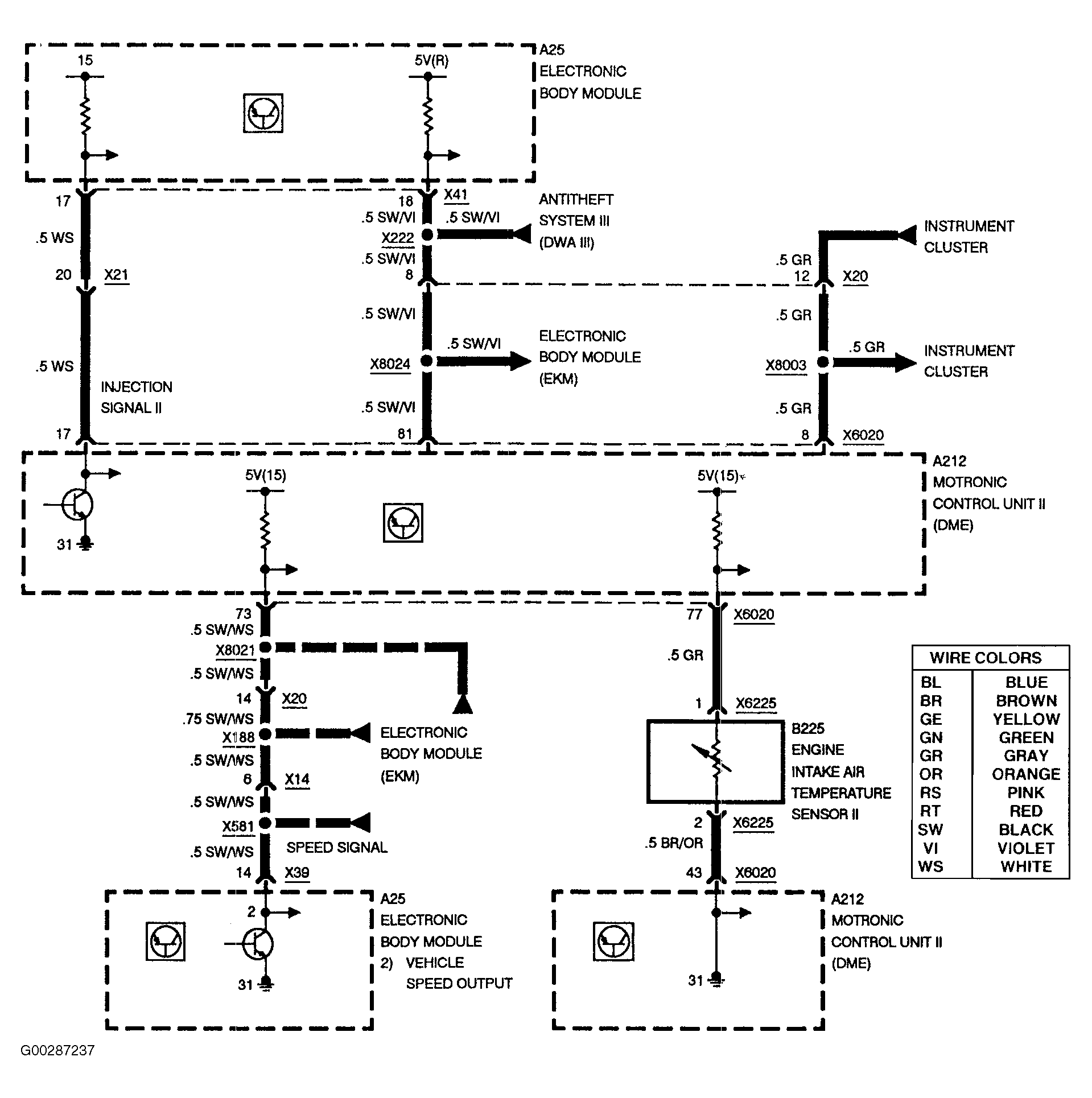

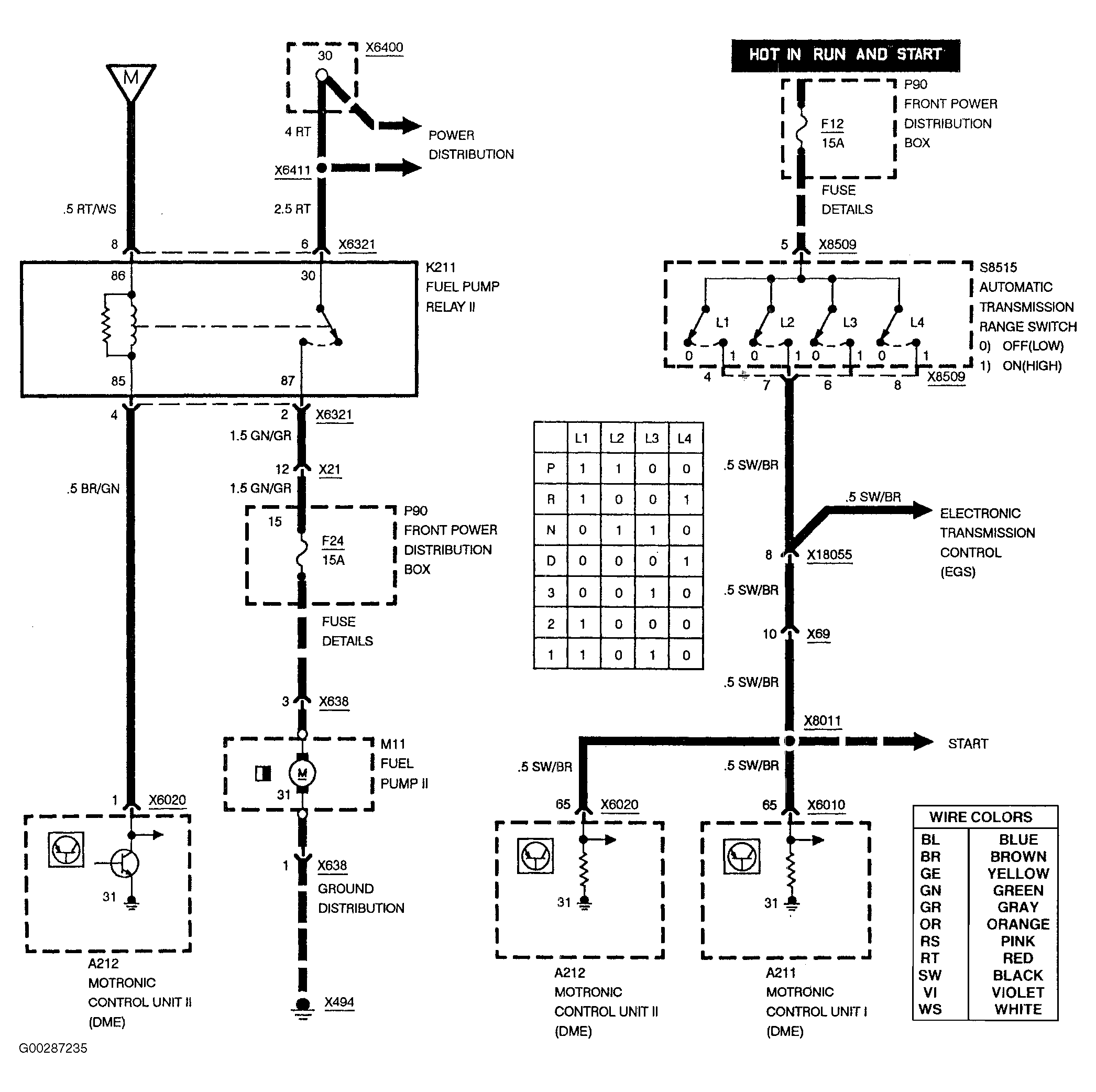

Fig 23: Motronic Control Unit II Wiring Diagram - 8 Series (1 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 24: Motronic Control Unit II Wiring Diagram - 8 Series (2 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 25: Motronic Control Unit II Wiring Diagram - 8 Series (3 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 26: Motronic Control Unit II Wiring Diagram - 8 Series (4 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 27: Motronic Control Unit II Wiring Diagram - 8 Series (5 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 28: Motronic Control Unit II Wiring Diagram - 8 Series (6 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 29: Motronic Control Unit II Wiring Diagram - 8 Series (7 Of 7)
Courtesy of BMW OF NORTH AMERICA, INC.

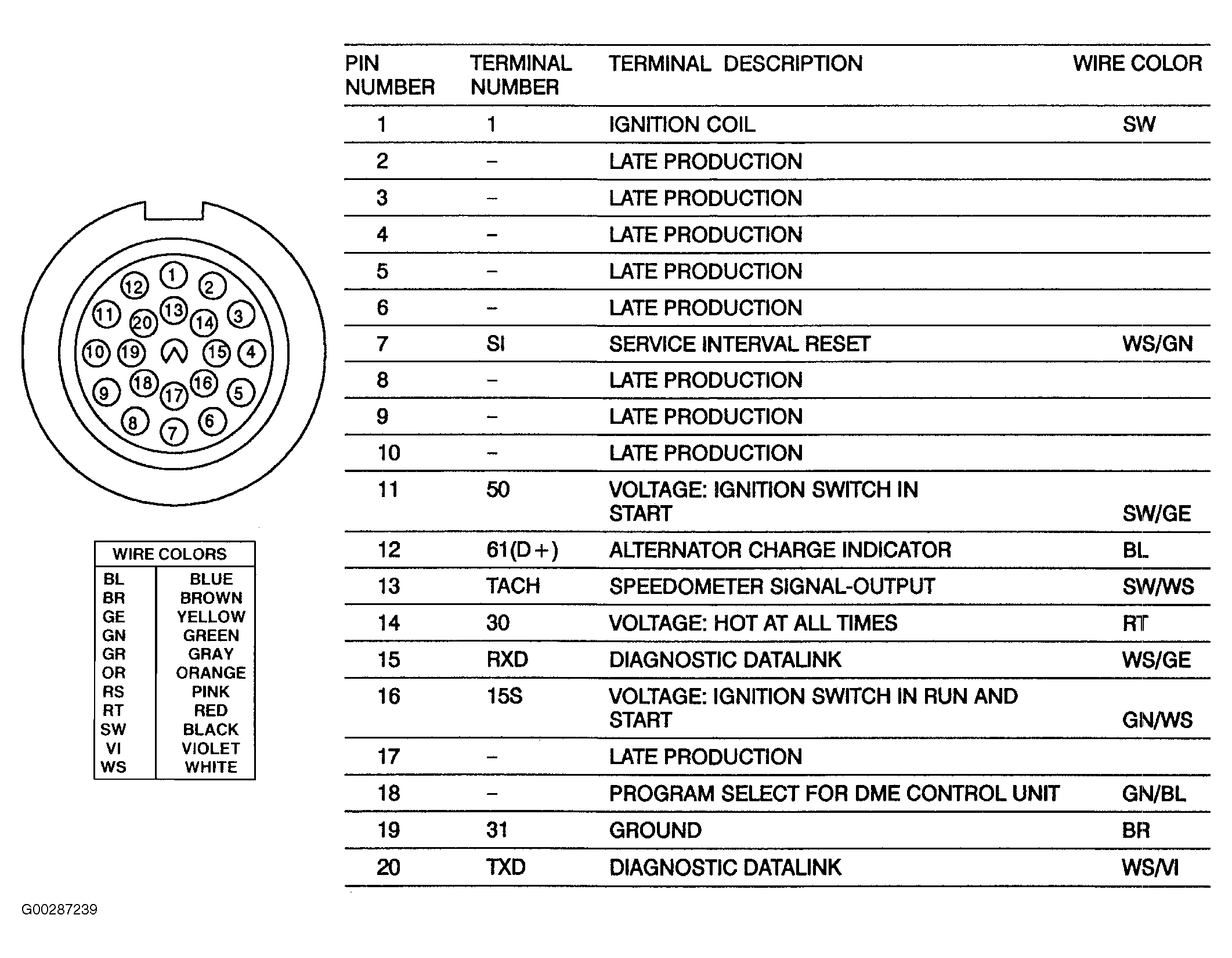

Fig 30: Diagnostic Connector Pin Identification - 8 Series (1 Of 1)
Courtesy of BMW OF NORTH AMERICA, INC.

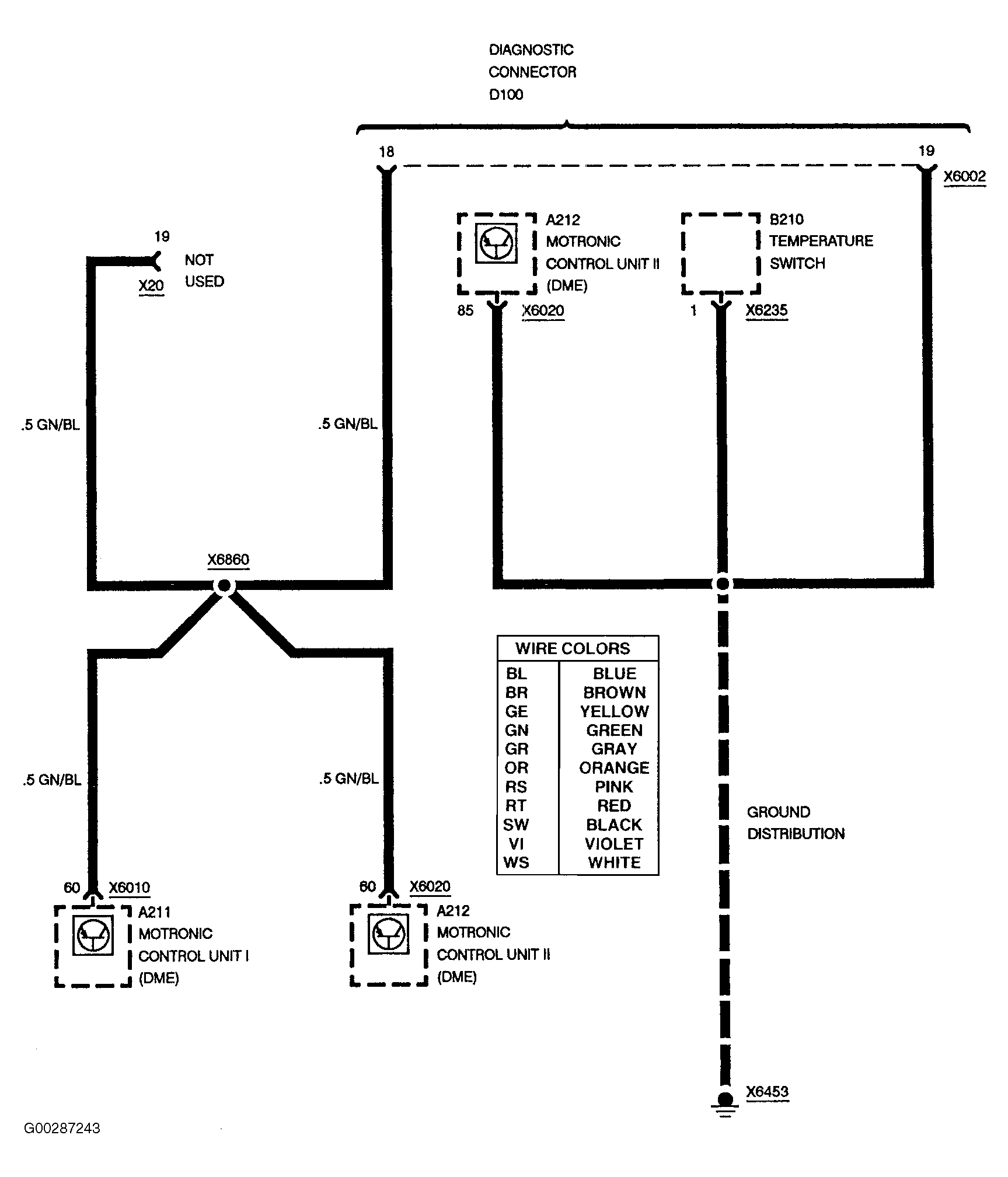

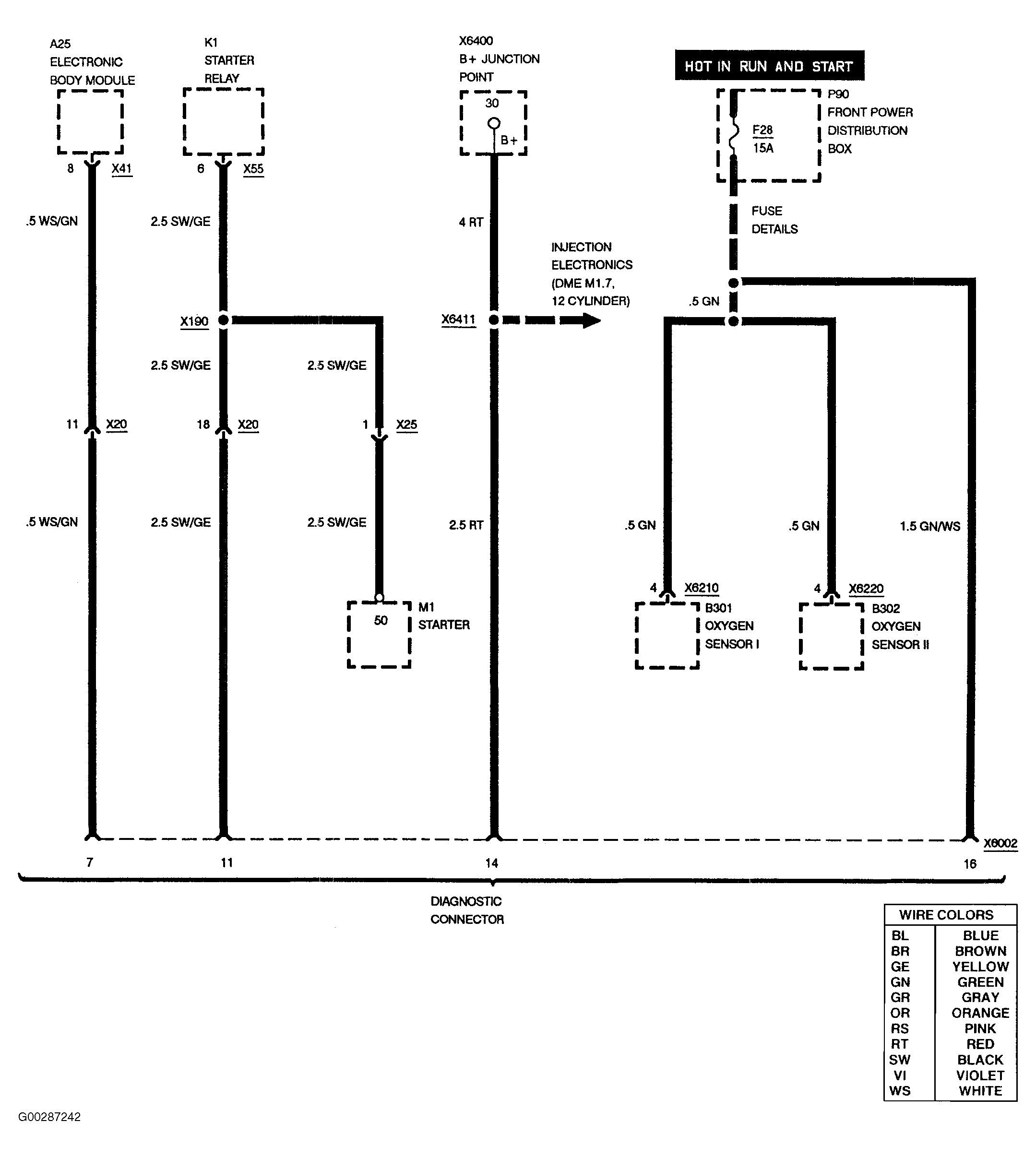

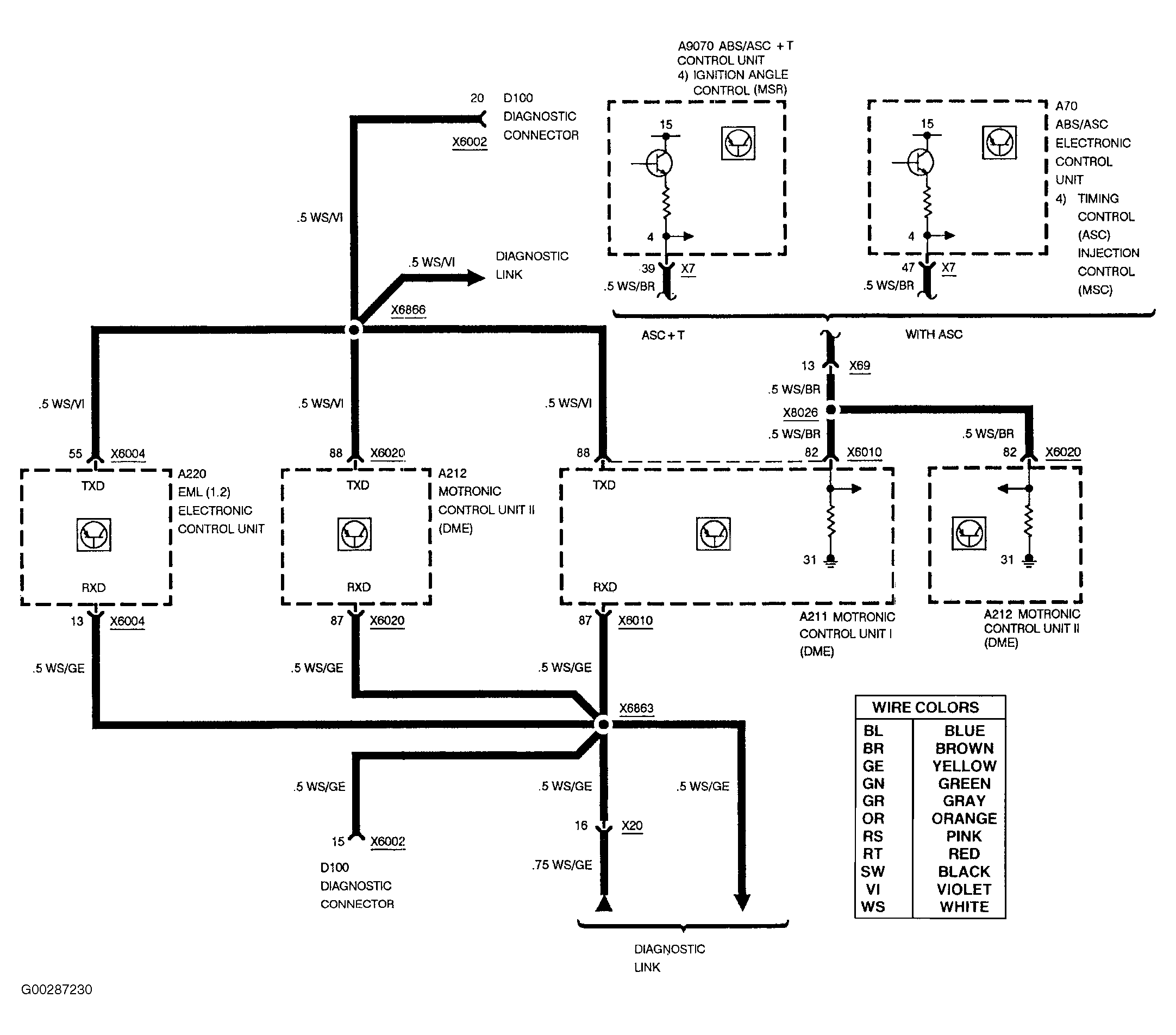

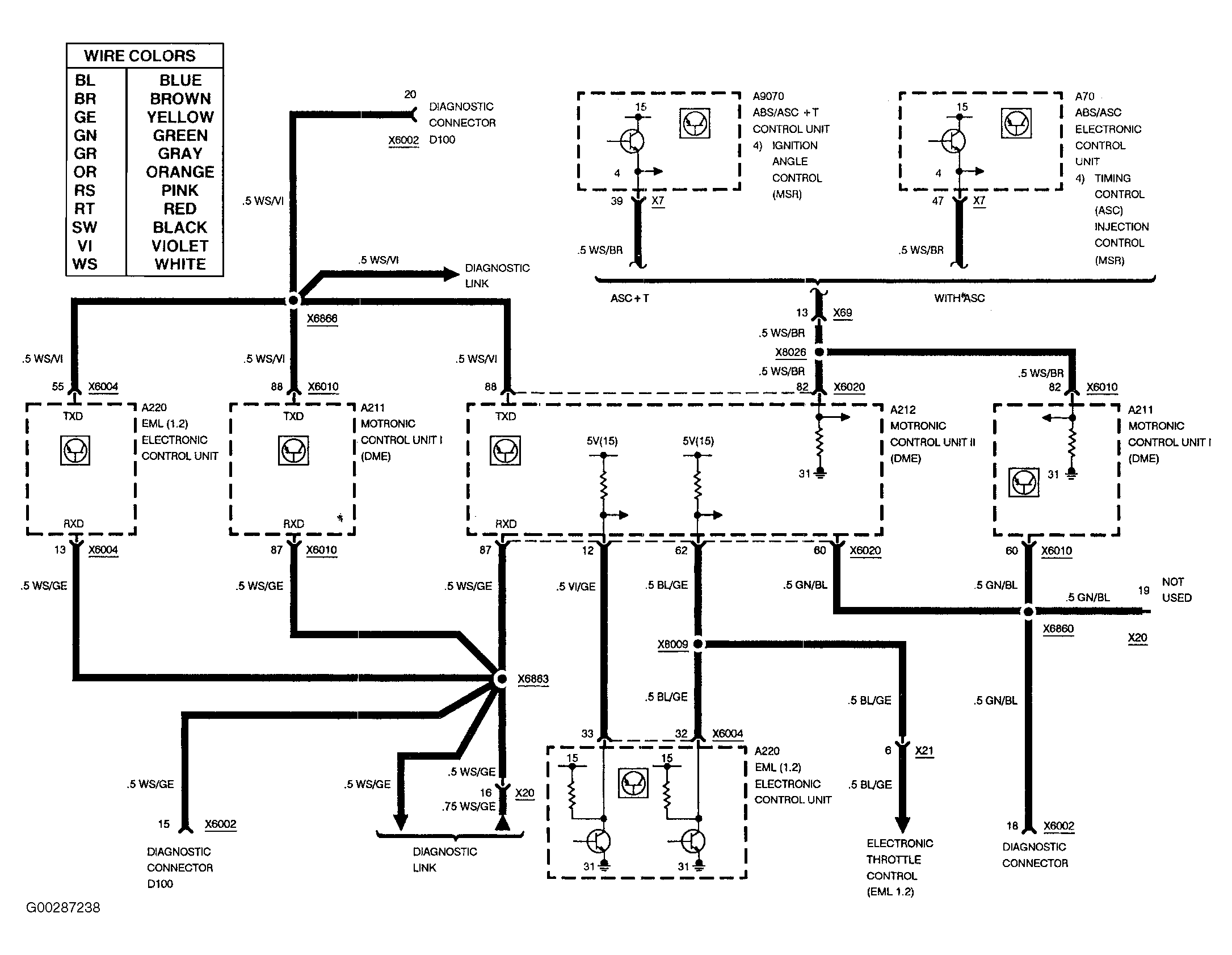

Fig 31: Diagnostic Link Wiring Diagram - 8 Series (1 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 32: Diagnostic Link Wiring Diagram - 8 Series (2 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 33: Diagnostic Link Wiring Diagram - 8 Series (3 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
Fig 34: Diagnostic Link Wiring Diagram - 8 Series (4 Of 4)
Courtesy of BMW OF NORTH AMERICA, INC.
