Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

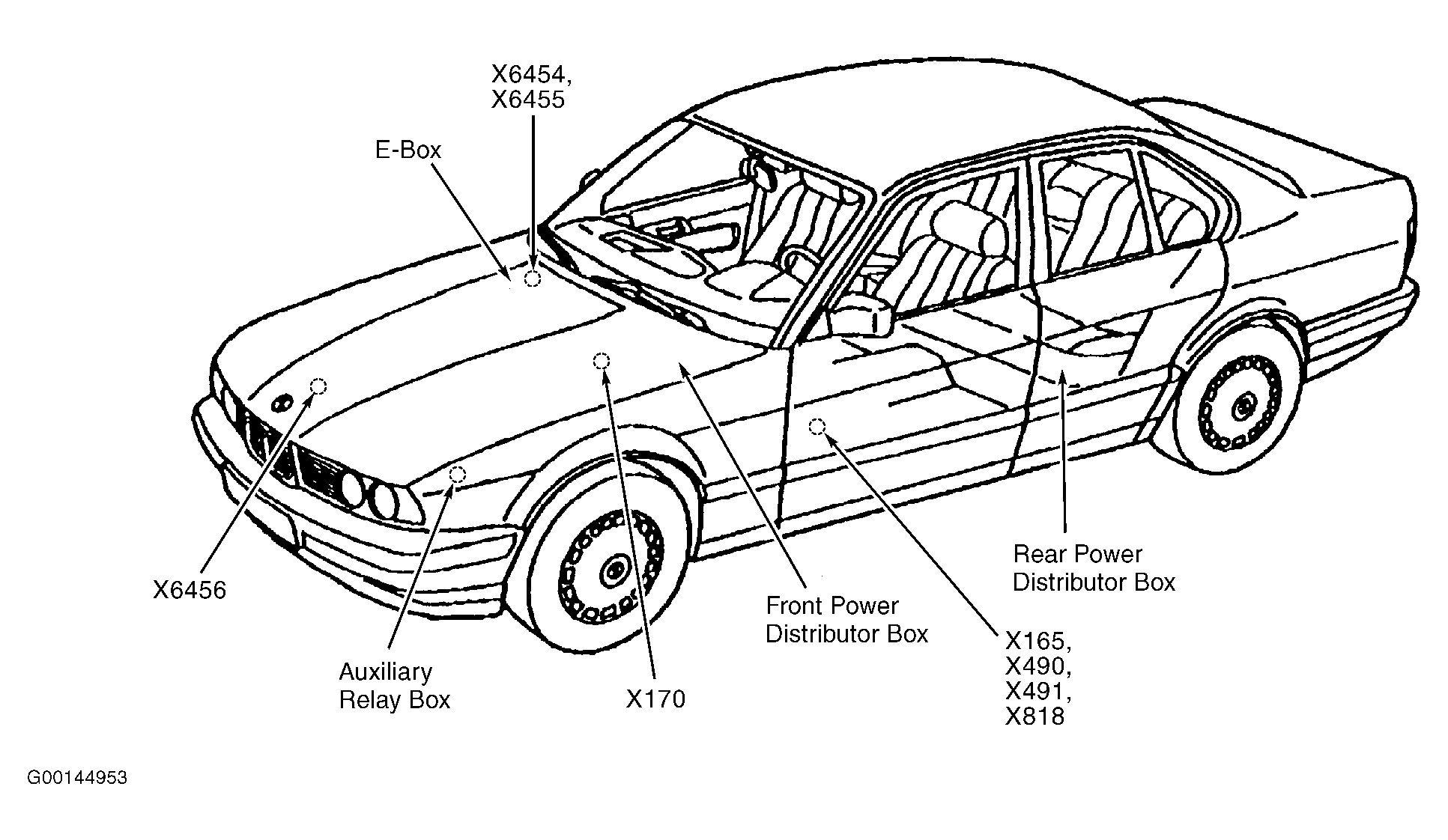

Component Component Location
Auxiliary Relay Box On left side of engine compartment. See Figure .
E-Box Right rear side of engine compartment. See Figure .
Front Power Distribution Box On left rear side of engine compartment. See Figure .
Rear Power Distribution Box Under left side of rear seat. See Figure .
