Engine Control Module Relay

Component/Connector Location Views:

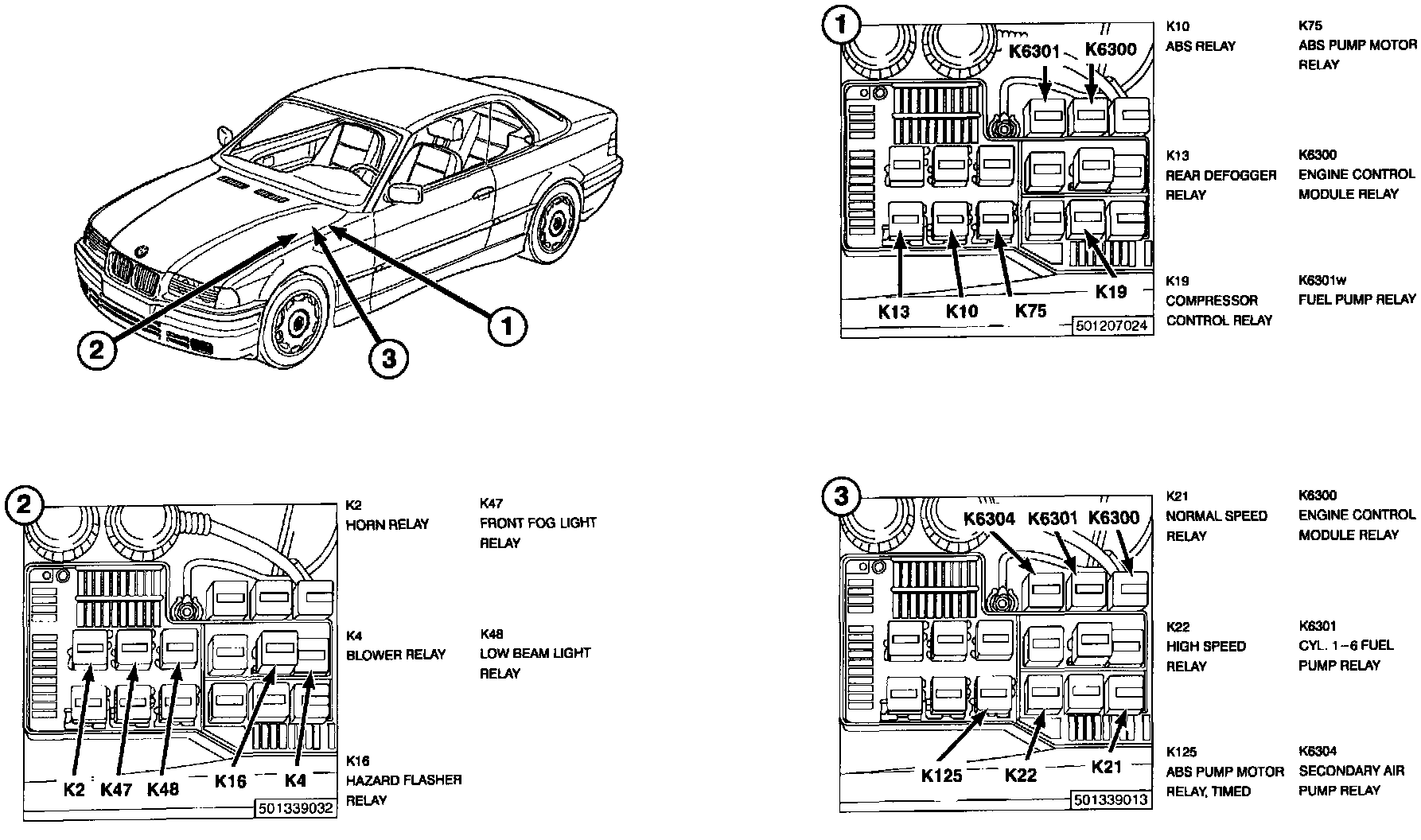

Component Location View
Figure 1
Component ID K6300, Engine Control Module Relay
Location Rear LH Side Of Engine Compartment In Power Distribution Box
