Replacing DME Control Unit



Replacing DME Control Unit



Unscrew bolts.
Fold cover with wiring harness to one side.




Lift locking clamp of plug-in connection in upwards direction.
Disconnect connector.
Pull control unit out of clips.

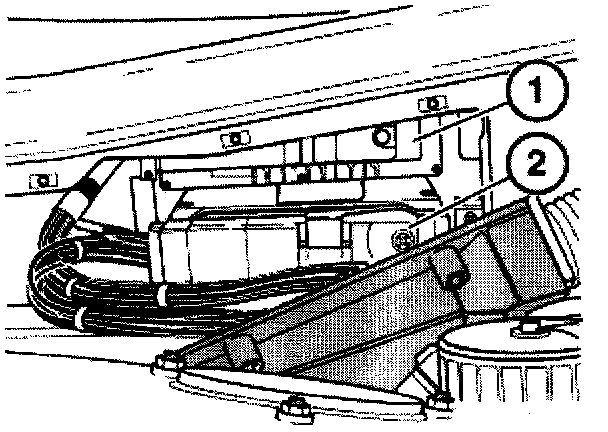

1 = Control unit for automatic transmission
2 = Control unit for Digital Motor Electronics
