86 21 ... Removing side lid hinge
NOTE:
Remove side lid, refer to 86 21 ... REMOVING LID
.
Remove gas spring, remove gas spring on hinge side only, refer to 86 21 ... REMOVING GAS SPRING .
Remove gas spring, remove gas spring on hinge side only, refer to 86 21 ... REMOVING GAS SPRING .

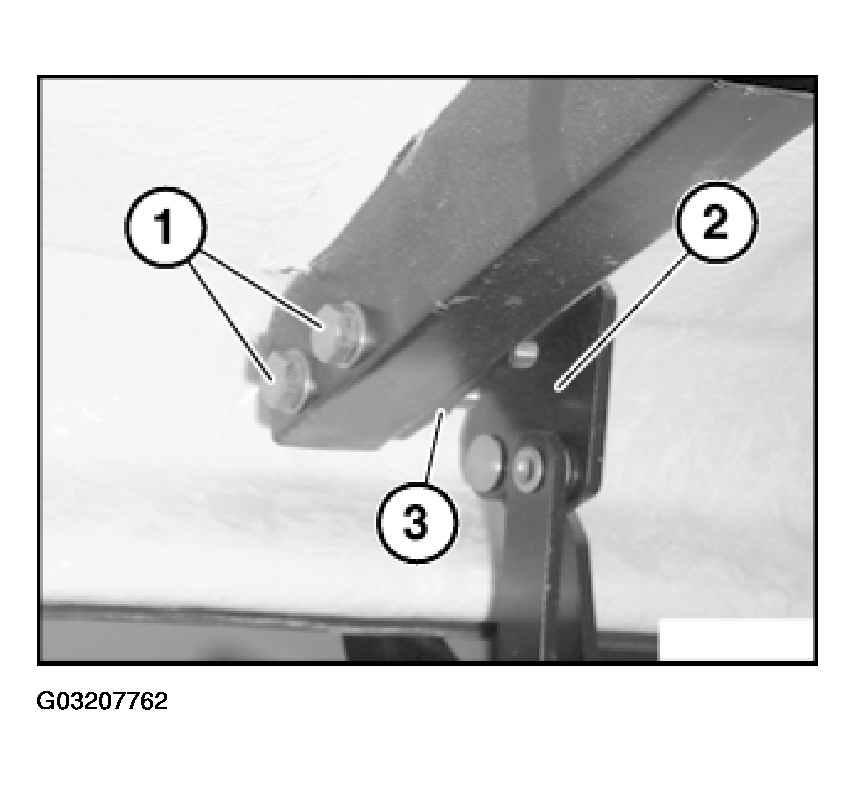

Unscrew bolt (1). Remove hinge (2). If fitted, remove spacer plate(s) (3).
Installation:
Pass screws (1) again through spacer tubes. Reinstall existing spacer plate(s) in its/their original position(s). Use new self-locking nuts.
Tightening Torque, 27 Nm.
