51 11... Installing/replacing license plate (without base)

Initial fitting:

Place drilling hole template (1) on bumper (2).

Drill holes according to license plate.

Remove template (1).

Secure license plate with screws provided.

Tightening torque 51 11 7AZ  . See 11 FRONT BUMPER .

Fit protective caps.

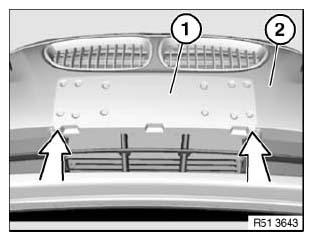

Fig 1: Identifying Drilling Hole Template On Bumper

Courtesy of BMW OF NORTH AMERICA, INC.

Repairing thread:

Drill out defective hole in bumper (2) to 9.5 mm diameter.

Insert blind rivet nut (1).

Secure license plate (3) with license plate screw (4).

Tightening torque 51 11 8AZ  . See 11 FRONT BUMPER .

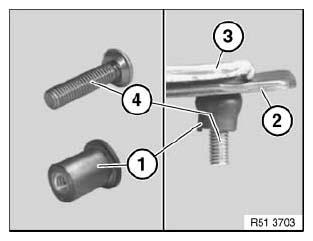

Fig 2: Identifying License Plate And License Plate Screw

Courtesy of BMW OF NORTH AMERICA, INC.
