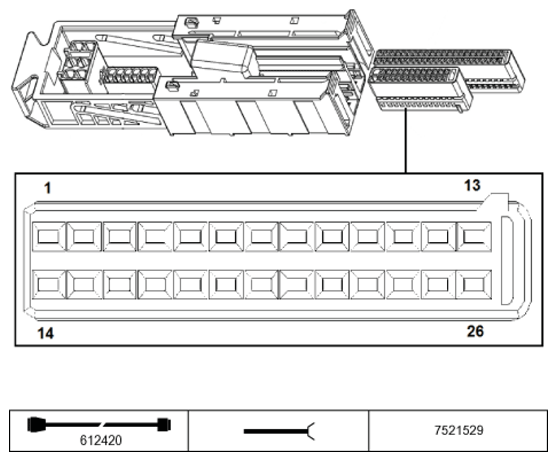

DME Control Module SX60107A Connector End View
Pin Assignments At Plug Connector X60107
| Pin | Type | Description /Signal type | Connection /Measuring notes |
|---|---|---|---|
| 1 | A | Signal, ignition coil | Ignition coil, cylinder 1 |
| 2 | A | Signal, ignition coil | Ignition coil, cylinder 4 |
| 3 | A | Signal, ignition coil | Ignition coil, cylinder 7 |
| 4 | A | Signal, ignition coil | Ignition coil, cylinder 6 |
| 5 | -- | Not occupied | |
| 6 | -- | Not occupied | |
| 7 | -- | Not occupied | |
| 8 | -- | Not occupied | |
| 9 | -- | Not occupied | |
| 10 | -- | Not occupied | |
| 11 | E | Signal Intake camshaft sensor | Intake camshaft sensor |
| 12 | E | Signal Exhaust camshaft sensor | Exhaust camshaft sensor |
| 13 | E | Signal, crankshaft sensor | Crankshaft sensor |
| 14 | A | Signal, ignition coil | Ignition coil, cylinder 5 |
| 15 | A | Signal, ignition coil | Ignition coil, cylinder 8 |
| 16 | A | Signal, ignition coil | Ignition coil, cylinder 2 |
| 17 | A | Signal, ignition coil | Ignition coil, cylinder 3 |
| 18 | -- | Not occupied | |
| 19 | -- | Not occupied | |
| 20 | -- | Not occupied | |
| 21 | -- | Not occupied | |
| 22 | -- | Not occupied | |
| 23 | M | Sensor ground | Connector, sensor ground |
| 24 | E | Signal Intake camshaft sensor 2 | Intake camshaft sensor 2 |
| 25 | E | Signal Exhaust camshaft sensor 2 | Exhaust camshaft sensor 2 |
| 26 | M | Sensor ground | Crankshaft sensor |
