61 61... Overview of windscreen washer system and headlight cleaning system (SRA)

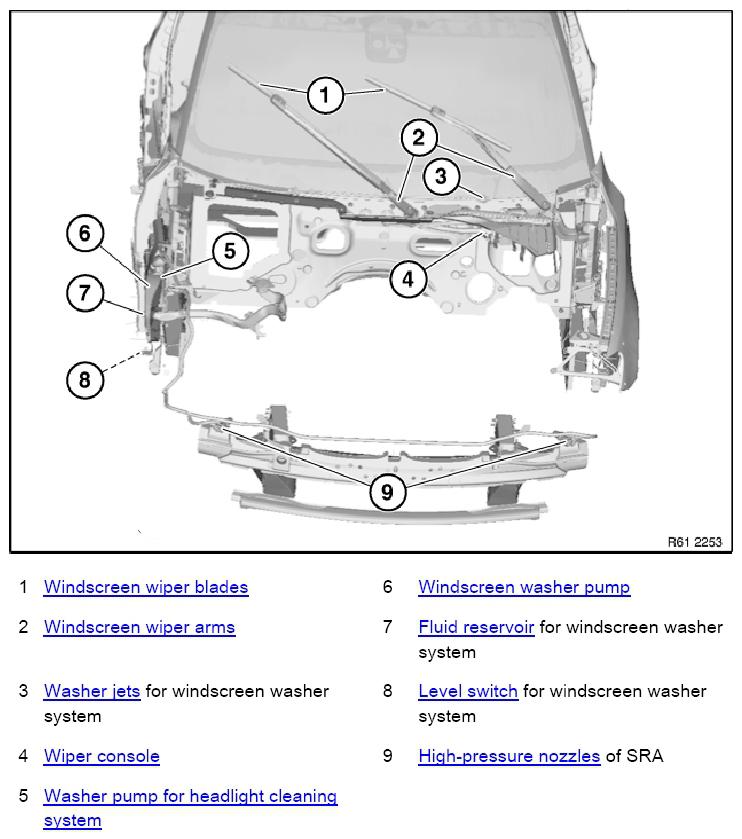

Fig 1: Overview Of Windscreen Washer System And Headlight Cleaning System (SRA)
G08513850Courtesy of BMW OF NORTH AMERICA, INC.
