High Pressure Pump Tool (04 06 16)
Publication date: 2016-04-01Reference number: 04 06 16
HIGH PRESSURE PUMP TOOL
TECHNICAL SERVICE BULLETIN
Reference Number(s): SI B04 06 16, Date of Issue:
April 2016
| BMW: | F30 (328d Sedan); F31 (328d Sports Wagon); F25 (328d X3); F34 (328d Gran Turismo) |
| GROUP: | Tools and Equipment |
SUBJECT
High Pressure Pump Tool
SITUATION
Distribution of the following tool will be through the Automatic Tool Shipment Program. Additional tools may be purchased through your Regional Distribution Center (RDC).

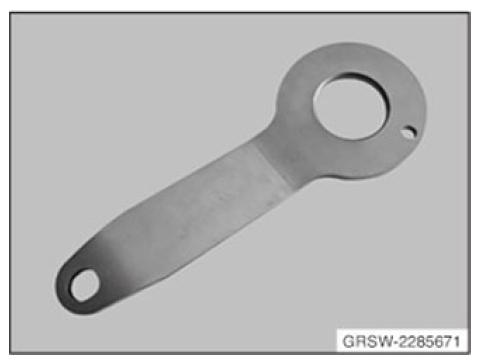

Pump Adjustment Tool
Order P/N 83 30 2 285 671

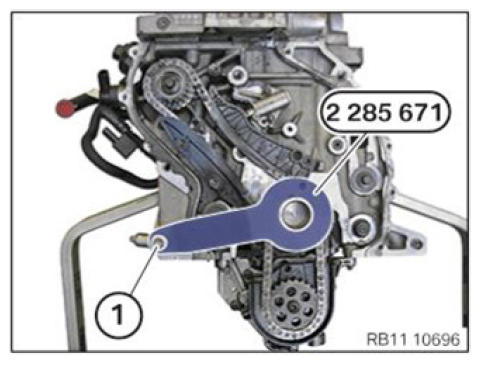

- Used to adjust the High Pressure pump during installation of the timing chain.
- Transmission bolt (1) used for holding the tool in place.
- For complete detailed information on this tool refer to ISTA Repair Manual section 11 31 052.
SPECIAL TOOL WARRANTY
Terms of the Parts department Special Tool Warranty can be viewed and printed by following the path below:
- Go to TIS.
- Select "Tools and Equipment."
- Select "Special Tool Parts Warranty."
